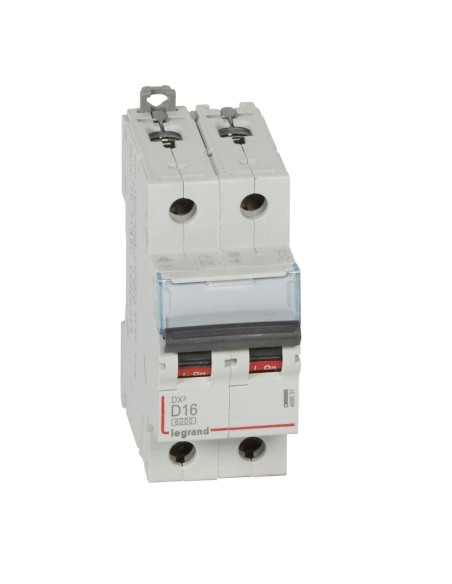

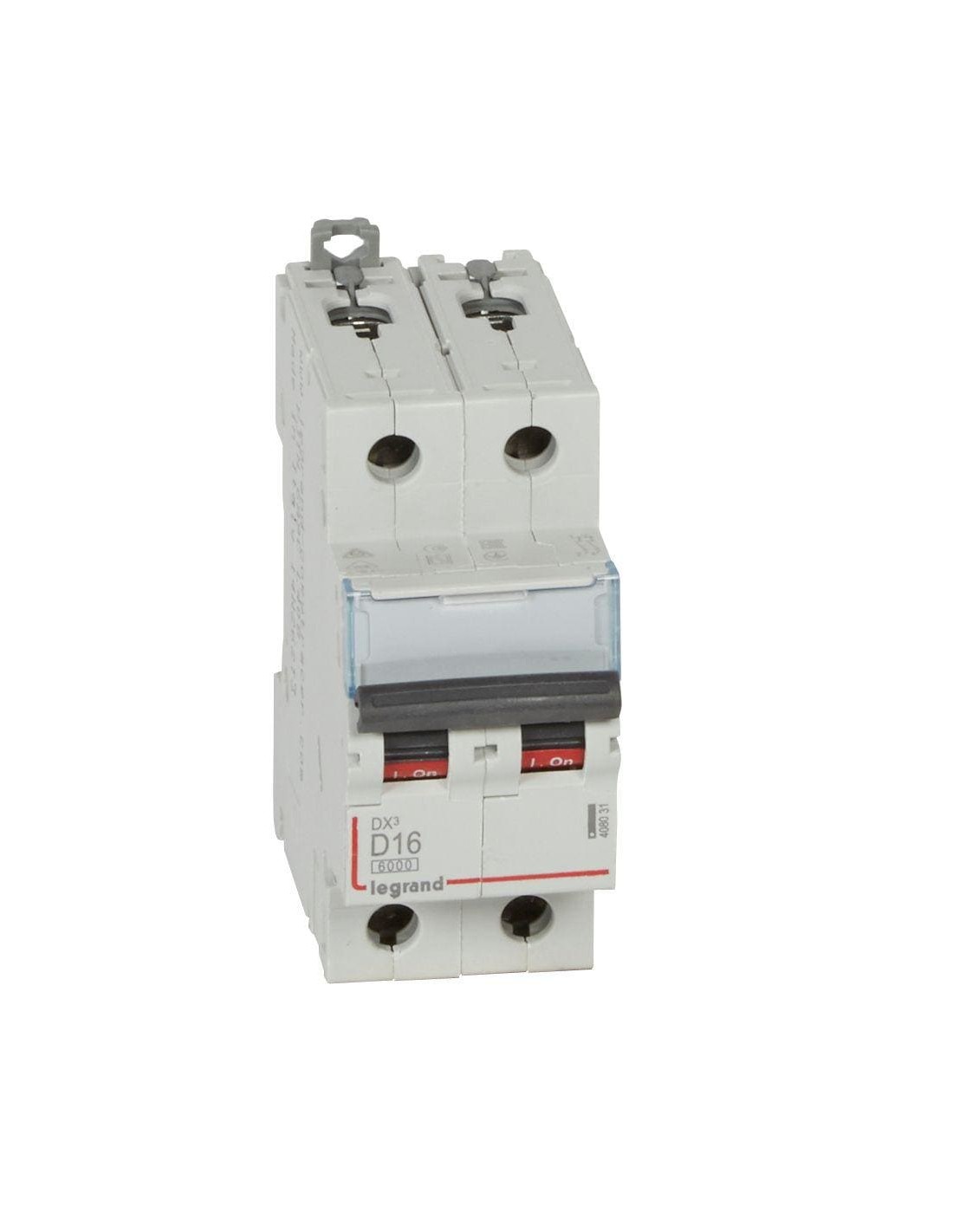

MCCB 2P 16A Curve D 10kA
MCCB 2P 16A Curve D 10kA

MCCB 2P 16A Curve D 10kA

Available In stock 29 Items Reference LEGRAND 408031
€60.21
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP20

2-pole miniature circuit breaker with a rated current of 16 A and D tripping curve. Protects installations against overloads and short circuits, with a breaking capacity of 10 kA at 400 V according to EN 60947-2.

Description

2-pole miniature circuit breaker designed to protect electrical installations against overloads and short circuits, while also allowing control and isolation of the network.

Technical features

  • Rated current: 16 A
  • Tripping curve: D
  • Rated voltage: 400 V AC
  • Breaking capacity: 6 kA at 400 V (EN 60898) and 10 kA at 400 V (EN 60947-2)
  • Insulation voltage: 500 V
  • Frequency: 50...60 Hz
  • Protection rating: IP20
  • Operating temperature: -25...70 °C
  • Connection: 1.5...25 mm² (multiconductor) and 1.5...35 mm² (rigid)
  • Dimensions: 2 modules wide, 44 mm deep

This device offers robust breaking capacity and a wide temperature range, ensuring operational stability in diverse environmental conditions. Its compact 2-module design facilitates integration into standard electrical panels.

Product Details

Dimensiones

Width 44 mm
Weight (kg) 0.4 kg

Eléctrico

Rated voltage 400
Rated current (A) 16

Protección

Protection IP20

Otras

Curve D
EAN 3245064080316
Manufacturer LEGRAND
No. of poles 2P
Reference LEGRAND 408031
Cable cross-section (mm²) 35 mm²

Información legal

Fabricante LEGRAND
Dirección C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email [email protected]
Teléfono +34 916561812
Referencia LEGRAND 408031
EAN 3245064080316
