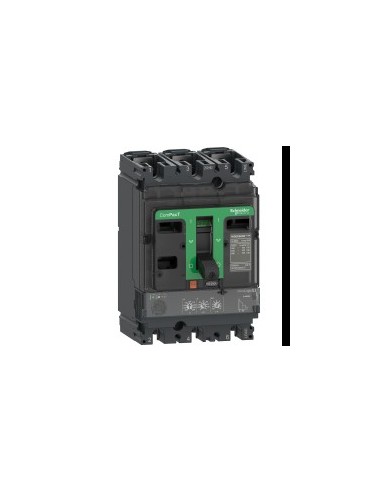

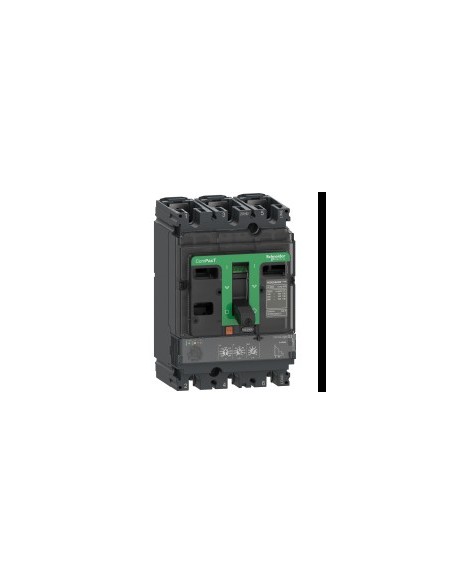

ComPacT NSX100N 3P3R 40A Micrologic 2.2 Automatic Circuit Breaker

Automatic ComPacT NSX100N 3P3R switch with Micrologic 2.2 control unit, designed to protect electrical circuits in industrial and commercial installations. It offers protection against overload and short circuits through long-term shooting current adjustment (18–40 A) and fixed delay. Compatible with the new generation ComPacT range, it guarantees stability in 50/60 Hz AC networks.

Technical characteristics

• Number of poles: 3P
• Description of protected poles: 3R
• Nominal current [In]: 40 A at 40 °C
• Nominal employment voltage [Ue]: 690 V AC 50/60 Hz
• Network type: AC
• Network frequency: 50/60 Hz
• Icu cutting capacity: 50 kA in 380–415 V AC, 10 kA in 660–690 V AC
• In-service cutting power [Ics]: 50 kA at 380–415 V AC, 10 kA at 660–690 V AC
• Control unit: Micrologic 2.2
• Fire unit technology: Electronic
• Protection functions: LSoI
• Type of control: Handle
• Type of assembly: Fixed
• Nominal insulation voltage [Ui]: 800 V AC 50/60 Hz
• Voltage peak resistance [Uimp]: 8 kV
• Mechanical durability: 50000 cycles
• Electrical durability: 50000 cycles in 440 V In/2, 30000 cycles in 440 V In, 20000 cycles in 690 V In/2, 10000 cycles in 690 V In
• Dissipated power per pole: 1.34 W
• Mounting bracket: Rear plate
• Mounting position: Horizontal and vertical (plano por la parte posterior)
• Top connection: Front
• Connection down: Front
• Connection step: 35 mm
• Long-term detection setting Go: 9 regulations, interval 18...40 A
• Long term delay: Fixed, 400 s at 1.5 x Ir, 16 s at 6 x Ir, 11 s at 7.2 x Ir
• Thermal memory: 20 minutes before and after shooting
• Short delay detection setting Isd: 9 regulations, interval 1.5...10 x Ir
• Short-term delay: Fixed
• Instant detection Ii: Fixed, range 600 A
• Protection against ground leaks: Without
• Logic selectivity ZSI: Without
• Number of slots: 5
• Local markings: Ready to operate (green flashing LED), Overload (red LED 105 % Ir), Overload (orange LED 90 % Ir)
• Dimensions: Width 105 mm, Height 161 mm, Depth 86 mm
• Weight: 2.05 kg
• Compatibility code: NSX100
• Standards: HB2
• Certifications: CCC Marine Generator
• Overvoltage category: Class II
• Electrical shock protection class: Class II
• Degree of contamination: 3 according to IK07
• Degree of IP protection: IP40 according to IEC 60529
• Level of protection IK: IK07 according to IEC 62262
• Operating ambient temperature: -25...70 °C
• Storage ambient temperature: -50...85 °C
• Relative humidity: 0...95 %
• Maximum operating altitude: 0...2000 m without decrease, 2000 m ... 5000 m with restrictions
• Sustainable supply status: Product Green Premium
• REACh Regulation: Contains SVHC over the threshold
• EU RoHS Directive: As per
• No mercury: Yes
• RoHS exemptions: Yes
• RoHS China Regulations: Product outside of RoHS China
