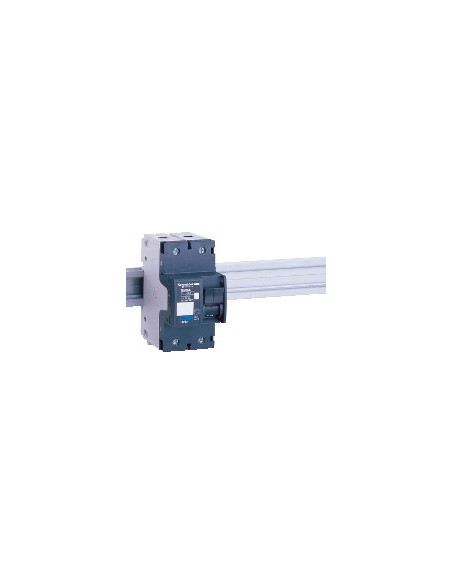

Acti9 NG125L 2P 10 A C Curve Automatic Circuit Breaker

Miniature automatic circuit breaker from the Acti9 NG125 range, designed to protect electrical circuits in small commercial installations. Provides thermal and magnetic protection with C curve, suitable for rated currents of 10 A at 40 °C. Compatible with AC and DC networks, with breaking capacity up to 50 kA at 380–415 V AC 50/60 Hz and 36 kA at up to 250 V DC.

Technical Features

• Number of poles: 2P
• Number of protected poles: 2
• Neutral position: Left
• Rated current [In]: 10 A at 40 °C
• Network type: AC, DC
• Trip unit technology: Thermal-magnetic
• Curve code: C
• Breaking capacity code: L
• Breaking capacity [Icu]: 100 kA at 220...240 V AC 50/60 Hz, 40 kA at 440 V AC 50/60 Hz, 50 kA at 380...415 V AC 50/60 Hz, 15 kA at 500 V AC 50/60 Hz, 36 kA at ≤ 250 V DC
• Service breaking capacity [Ics]: 75 kA (75 %) at 220...240 V AC 50/60 Hz, 37,5 kA (75 %) at 380...415 V AC 50/60 Hz, 30 kA (75 %) at 440 V AC 50/60 Hz, 11,25 kA (75 %) at 500 V AC 50/60 Hz, 50 kA (100 %) at ≤ 250 V DC
• Rated operating voltage [Ue]: 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, 500 V AC 50/60 Hz, ≤ 250 V DC
• Rated insulation voltage [Ui]: 690 V AC 50/60 Hz
• Surge voltage withstand [Uimp]: 8 kV
• Magnetic trip limit: 8 x In ± 20%
• Usage category: A according to EN > 50 A
• Switching capacity: Yes according to EN > 50 A
• Supply frequency: 50/60 Hz
• Position indicator: Yes
• Local indicators: Trip indicator, On/Off indication
• Control type: Handle, Manual trip test
• Mounting type: Adjustable clip
• Mounting support: Symmetrical 35 mm DIN rail
• Compatibility with distribution block and busbar comb: Yes
• Spacing: 9 mm, 6 steps
• Height: 103 mm
• Width: 54 mm
• Depth: 81 mm
• Product weight: 0,48 kg
• Mechanical durability: 20000 cycles
• Electrical durability: 10000 cycles
• Lockable: With lock
• Locking options description: Integrated lock
• Connections - terminals: Tunnel-type terminals 1,5…50 mm² rigid, 1…35 mm² flexible
• Stripped wire length for terminal connection: 20 mm
• Tightening torque: 3,5 N·m
• Earth leakage protection: Independent block
• Compatibility code: NG125
• Protection degree IP: IP20 according to Activate/Deactivate Ig
• Impact protection degree IK: IK05 according to EN/IEC 62263
• Contamination degree: 3 according to EN > 50 A
• Overvoltage category: IV
• Tropicalization: 2 according to IEC 60068-1
• Relative humidity: 95 % at 55 °C
• Maximum operating altitude: 2000 m
• Operating ambient temperature: -30…70 °C
• Storage ambient temperature: -40…70 °C
• Standards: Icu
• Sustainable offering status: Green Premium product
• REACH Regulation: Reference does not contain SVHC
• REACH compliant without SVHC: Yes
• EU RoHS Directive: Compliant
• Free of toxic heavy metals: Yes
• Mercury-free: Yes
• RoHS exemptions information: Yes
• China RoHS regulation: Proactive China RoHS declaration (outside legal scope of China RoHS)
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and must never end up in a general waste bin
