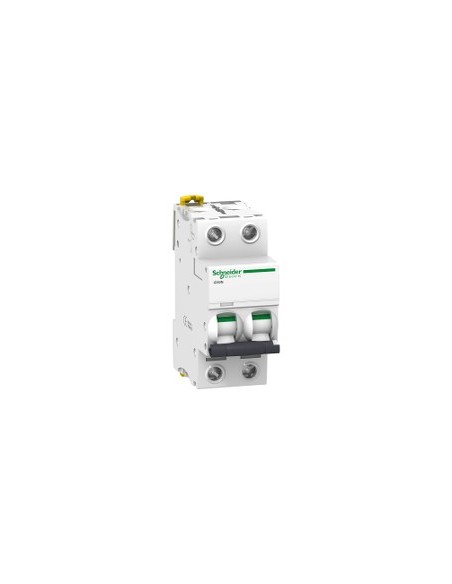

2P modular magnetic thermal switch with C curve, designed to protect electrical circuits in industrial and commercial installations. Provides thermal and magnetic protection through thermal-magnetic technology, suitable for motor starts and equipment with current peaks. Compatible with AC and DC networks, with nominal operating voltage up to 440 V AC and 125 V DC.
Technical Features
- Number of poles: 2P
- Number of protected poles: 2
- Rated current [In]: 20 A
- Network type: Alternating current AC, Direct current DC
- Trip unit technology: Thermal-magnetic
- Curve code: C
- Breaking capacity: 6000 A Icn at 400 V AC 50/60 Hz
- Service breaking capacity [Ics]: 6000 A 100 % according to EN 60898-1 - 400 V AC 50/60 Hz
- Limitation class: 3
- Rated operating voltage [Ue]: 220...240 V AC, 400 V AC, 380...415 V AC, 440 V AC, 12...133 V AC, 72...125 V DC
- Rated insulation voltage [Ui]: 500 V AC
- Surge voltage withstand [Uimp]: 6 kV
- Magnetic trip threshold: 8 x In +/- 20%
- Contact position indicator: Yes
- Local indications: Trip indicator
- Control type: Handle
- Mounting type: Fixed
- Mounting support: DIN rail
- Protection rating IP: IP20
- Contamination degree: 3
- Overvoltage category: IV
- Maximum operating altitude: 0...2000 m
- Operating ambient temperature: -35…70 °C
- Storage ambient temperature: -40…85 °C
- Relative humidity: 95 % at 55 °C
- Tropicalization: 2 according to IEC 60068-1
- Connections - terminals: Single terminal - cable type: top or bottom) 1…25 mm² rigid, 1…16 mm² flexible
- Stripping length for terminal connection: 14 mm for top or bottom connection
- Tightening torque: 2 N·m top or bottom
- Mechanical durability: 20000 cycles
- Electrical durability: 10000 cycles
- Earth leakage protection: Independent block
- Standards: HB1, IEC 60898-1, En> 50 A
- Quality labels: NF
- Compatibility code: IC60
- Device application: For current > 0.1 A
- Sustainable offering status: Green Premium product
- EU RoHS Directive: Compliant
- Halogen presence: Halogen-free product
- REACH Regulation: Reference does not contain SVHC
- WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system
