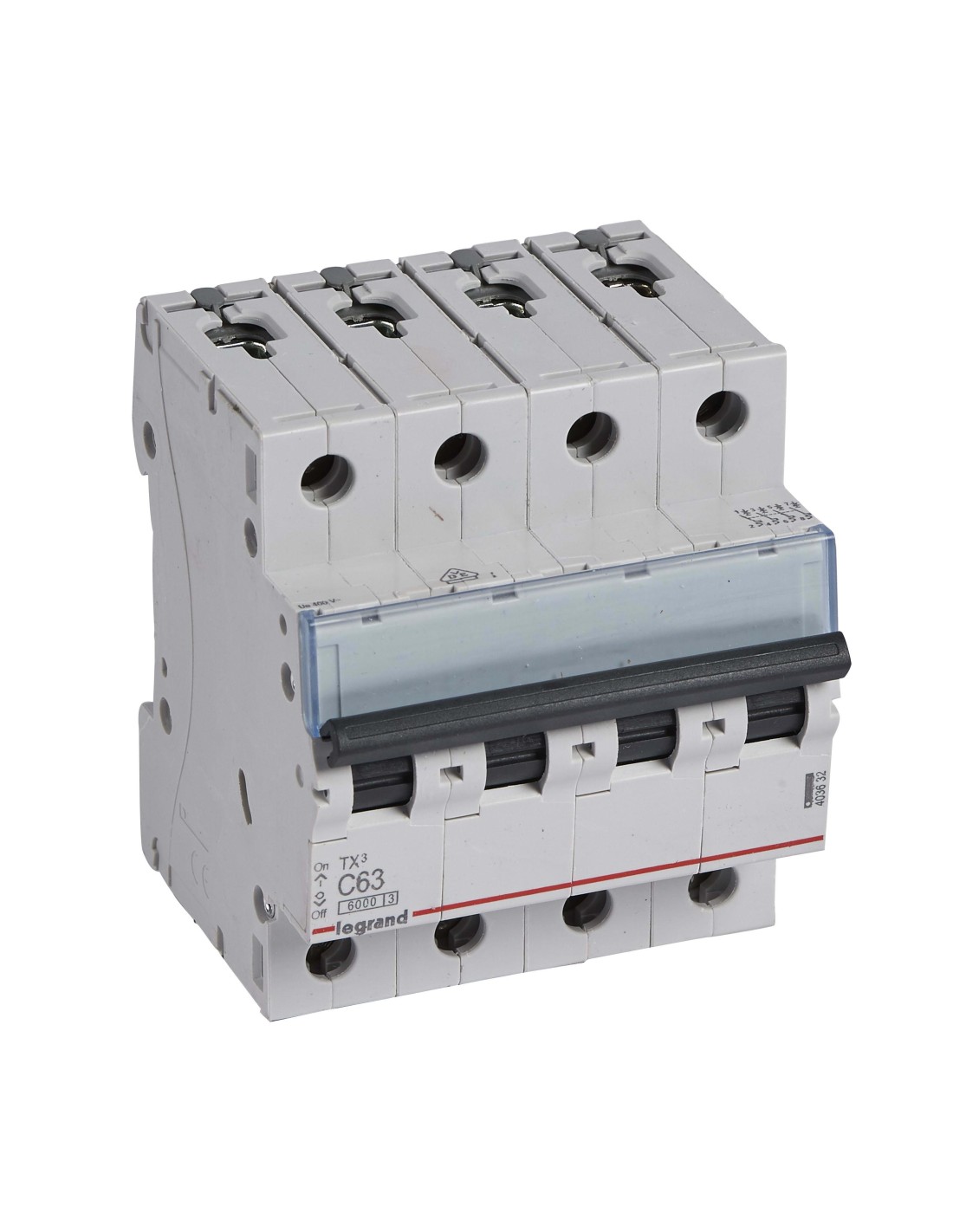

Circuit Breaker 4P 63A C Curve 6000A

Circuit Breaker 4P 63A C Curve 6000A

Circuit Breaker 4P 63A C Curve 6000A

Available In stock 25 Items

Reference LEGRAND 403632

€100.82

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP20

4-pole circuit breaker with a rated current of 63 A and C tripping curve. Protects installations against overloads and short circuits, with a breaking capacity of 10 kA at 230 V and 6 kA at 400 V. Designed for flush mounting, it occupies 4 modules and offers a construction depth of 44 mm.

Description

The 6000A TX³ MCB is a 4-pole circuit breaker designed to protect electrical installations against overloads and short circuits. It also allows for the control and isolation of the installation. Its compact design and technical features make it suitable for industrial and commercial applications where reliable and efficient protection is required.

Technical features

Rated current: 63 A
Rated voltage: 400 V AC
Rated insulation voltage: 500 V
Maximum impulse voltage rating Uimp: 4 kV
Breaking capacity according to EN 60898 at 230V: 10 kA
Breaking capacity according to EN 60898 at 400V: 6 kA
Breaking capacity according to EN 60947-2 at 230V: 10 kA
Breaking capacity according to EN 60947-2 at 400V: 6 kA
Frequency range: 50...60 Hz
Current limitation class: 3
Flush mounting: yes
Simultaneous N-neutral switching: yes
Pollution degree: 2
Possible additional equipment: yes
Width in modules: 4
Protection rating (IP): IP20
Explosion proof: no
Construction depth: 44 mm
Tripping curve: C
Total number of poles: 4
Number of protected poles: 4

This breaker offers robust and reliable protection, ensuring the safety of electrical installations. Its ability to switch the neutral simultaneously and its compatibility with additional equipment make it versatile for various applications.

Product Details

Dimensiones

Depth	44 mm

Eléctrico

Rated voltage	400
Rated current (A)	63

Protección

Protection	IP20

Otras

Curve	C
EAN	3245064036320
Manufacturer	LEGRAND
Range	Industrial
# Elements	4
No. of poles	4P
Reference	LEGRAND 403632

Información legal

Fabricante	LEGRAND
Dirección	C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email	[email protected]
Teléfono	+34 916561812
Referencia	LEGRAND 403632
EAN	3245064036320

Advertencias de seguridad

No

In stock 25 Items

Downloads

Product sheet Store PDF Download
