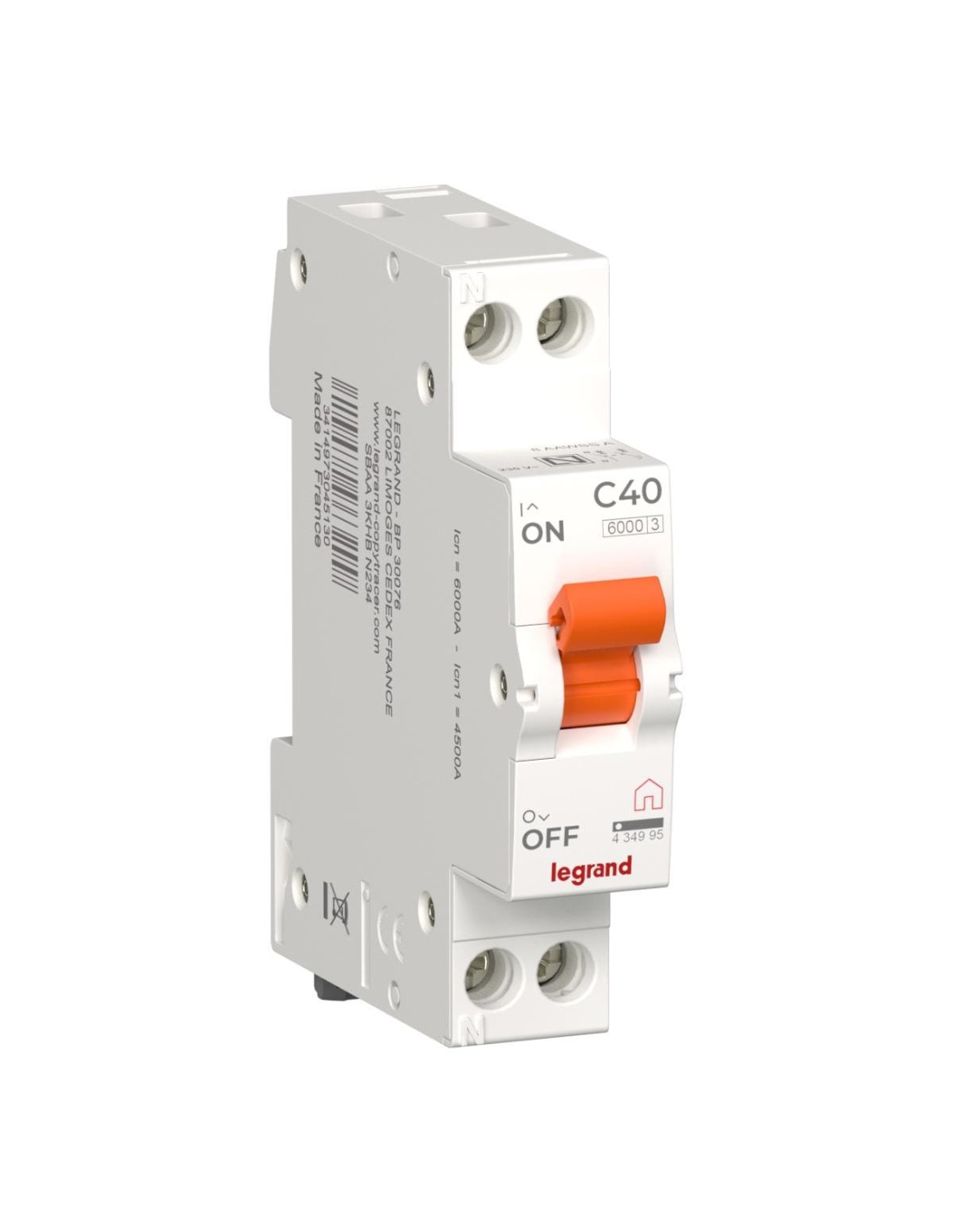

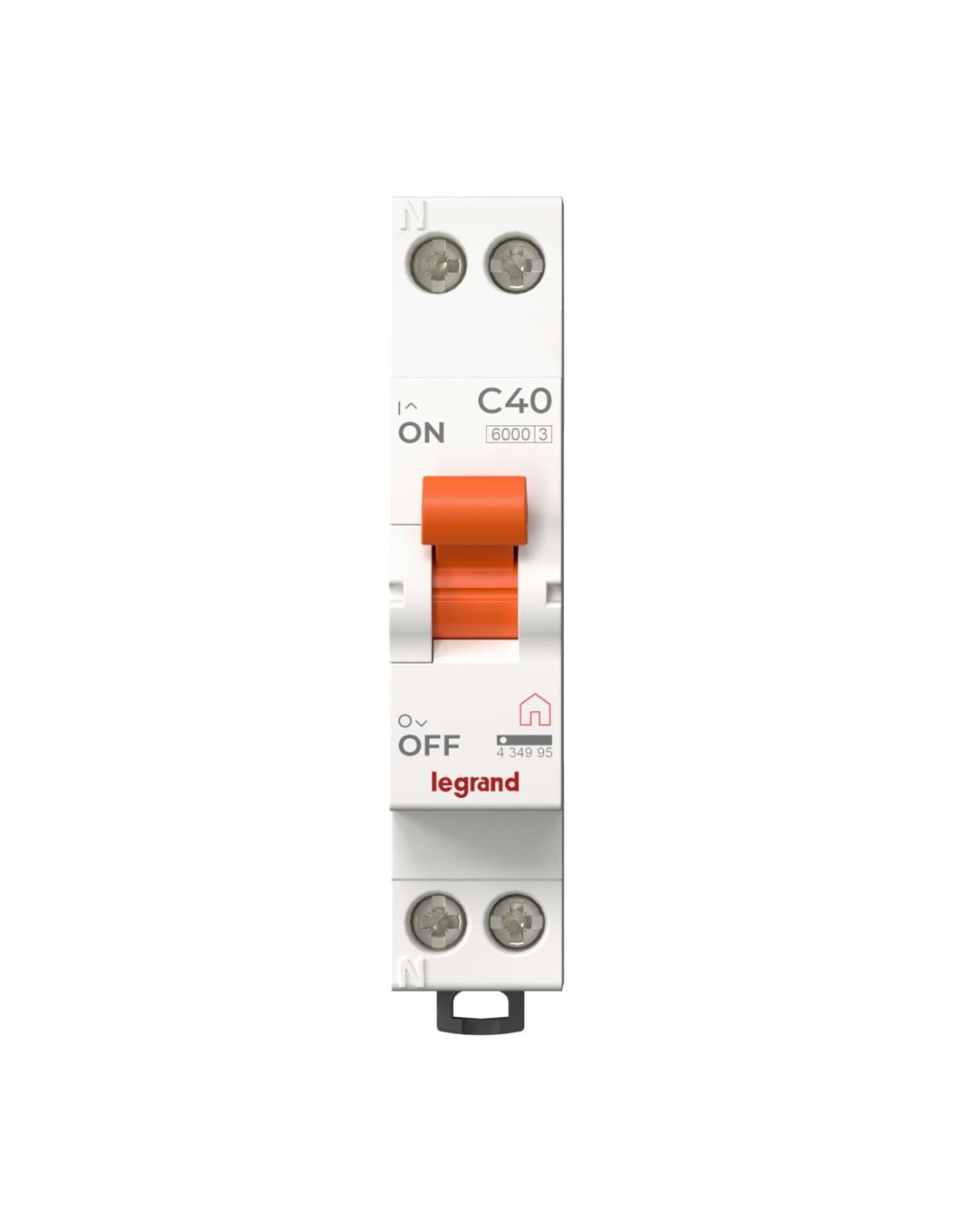

1-module miniature circuit breaker with 1 protected pole and neutral, 40 A and 230 V AC. C tripping curve and 6 kA breaking capacity according to EN 60898. Depth of 44 mm, IP20 and connection for conductors from 0.75 to 10 mm². Designed for protection against overloads and short circuits in electrical installations.
Description
1-pole plus neutral miniature circuit breaker designed to protect electrical installations against overloads and short circuits. It also allows for the control and isolation of the line. Its compact 1-module design facilitates integration into standard electrical panels.
Simultaneous switching of the neutral ensures safe disconnection of all conductors. The current limiting class 3 helps reduce thermal effects during faults. Compatible with additional equipment according to manufacturer specifications.
Product Details
| Depth | 44 mm |
|---|
| Rated voltage | 230 |
|---|---|
| Rated current (A) | 40 |
| Protection | IP20 |
|---|
| Curve | C |
|---|---|
| EAN | 3414973045253 |
| Manufacturer | LEGRAND |
| No. of poles | 1P+N |
| Reference | LEGRAND 434995 |
| Cable cross-section (mm²) | 10 mm² |
