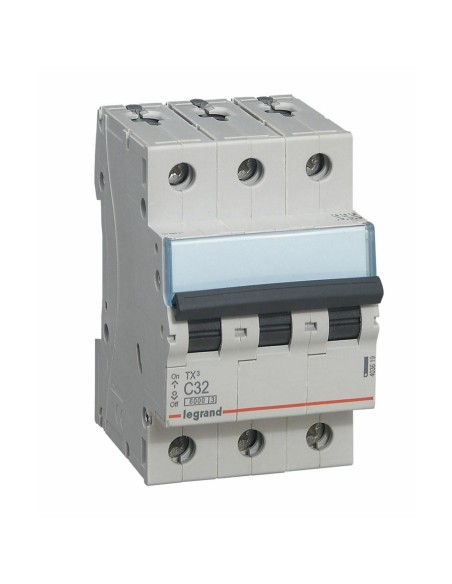

Circuit Breaker 3P 32A 400V Curve C 3 Modules

3 pole magnetothermic switch designed for the protection of electrical installations against overloads and short circuits. It also allows the control and isolation of the installation. Its compact design occupies 3 modules and is designed for flush mounting.

Technical characteristics

• Assigned current: 32 A
• Nominal voltage: 400 V AC
• Shot curve: C
• Number of poles: 3 (all protected)
• Cutting power: 10 kA to 230 V and 6 kA to 400 V (according to EN 60898 and EN 60947-2)
• Nominal insulation voltage (Ui): 500 V
• Maximum pulse rate (Uimp): 4 kV
• Frequency: 50...60 Hz
• Intensity limitation class: 3
• Degree of protection: IP20
• Construction depth: 44 mm
• Installation to a minimum: Yes

This device provides a reliable response to electrical failures, ensuring network security and connected equipment. Compatibility with additional equipment allows the protection to be adapted to specific installation needs.
