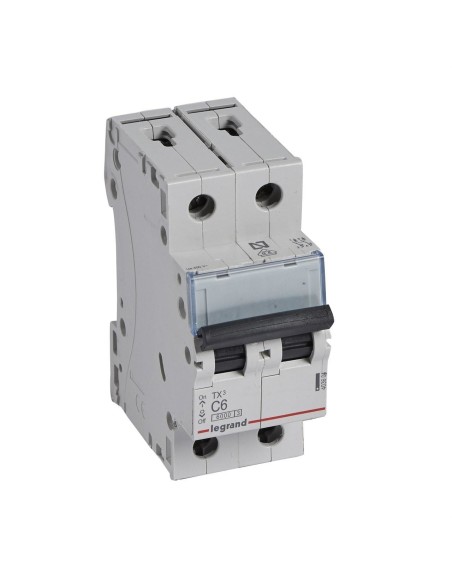

Magnetic circuit breaker 2P 6A C curve 10kA

Magnetic circuit breaker 2P 6A C curve 10kA

Magnetic circuit breaker 2P 6A C curve 10kA

Magnetic circuit breaker 2P 6A C curve 10kA

Magnetic circuit breaker 2P 6A C curve 10kA

Available In stock 10 Items

Reference LEGRAND 403604

€25.06

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP20

2-pole magnetothermic switch with 6 A assigned current and C firing curve. Protects installations against overloads and short circuits, with cutting power from 10 kA to 230 V and 6 kA to 400 V. It occupies 2 DIN modules, depth of 44 mm, rated voltage 230/400 V~ and insulation of 500 V. It meets EN 60898 and EN 60947-2 standards, suitable for flush mounting on standard electrical enclosures.

Description

2-pole magnetothermic switch designed for the protection of electrical installations against overloads and short circuits. It also allows the control and isolation of the installation. Its compact design occupies 2 modules and is designed for flush mounting, facilitating its integration into standard electrical frames.

Technical characteristics

Assigned current: 6 A
Nominal voltage: 230/400 V~
Shot curve: C
Number of poles: 2 (protected)
Cutting power: 10 kA to 230V and 6 kA to 400V (according to EN 60898 and EN 60947-2)
Insulation voltage (Ui): 500 V
Maximum pulse rate (Uimp): 4 kV
Frequency: 50...60 Hz
Intensity limitation class: 3
Degree of protection: IP20
Construction depth: 44 mm
Width: 2 modules

This device offers a reliable response to electrical failures, ensuring the safety of the installation and connected equipment. The compatibility with additional equipment allows the protection to be adapted to specific needs without complicating the assembly.

Product Details

Dimensiones

Long	2 módulos
Depth	44 mm

Eléctrico

Rated current (A)	6

Protección

Protection	IP20

Otras

Curve	C
EAN	3245064036047
Manufacturer	LEGRAND
No. of poles	2P
Reference	LEGRAND 403604

Información legal

Fabricante	LEGRAND
Dirección	C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email	[email protected]
Teléfono	+34 916561812
Referencia	LEGRAND 403604
EAN	3245064036047

Advertencias de seguridad

No

In stock 10 Items

Downloads

Product sheet Store PDF Download
