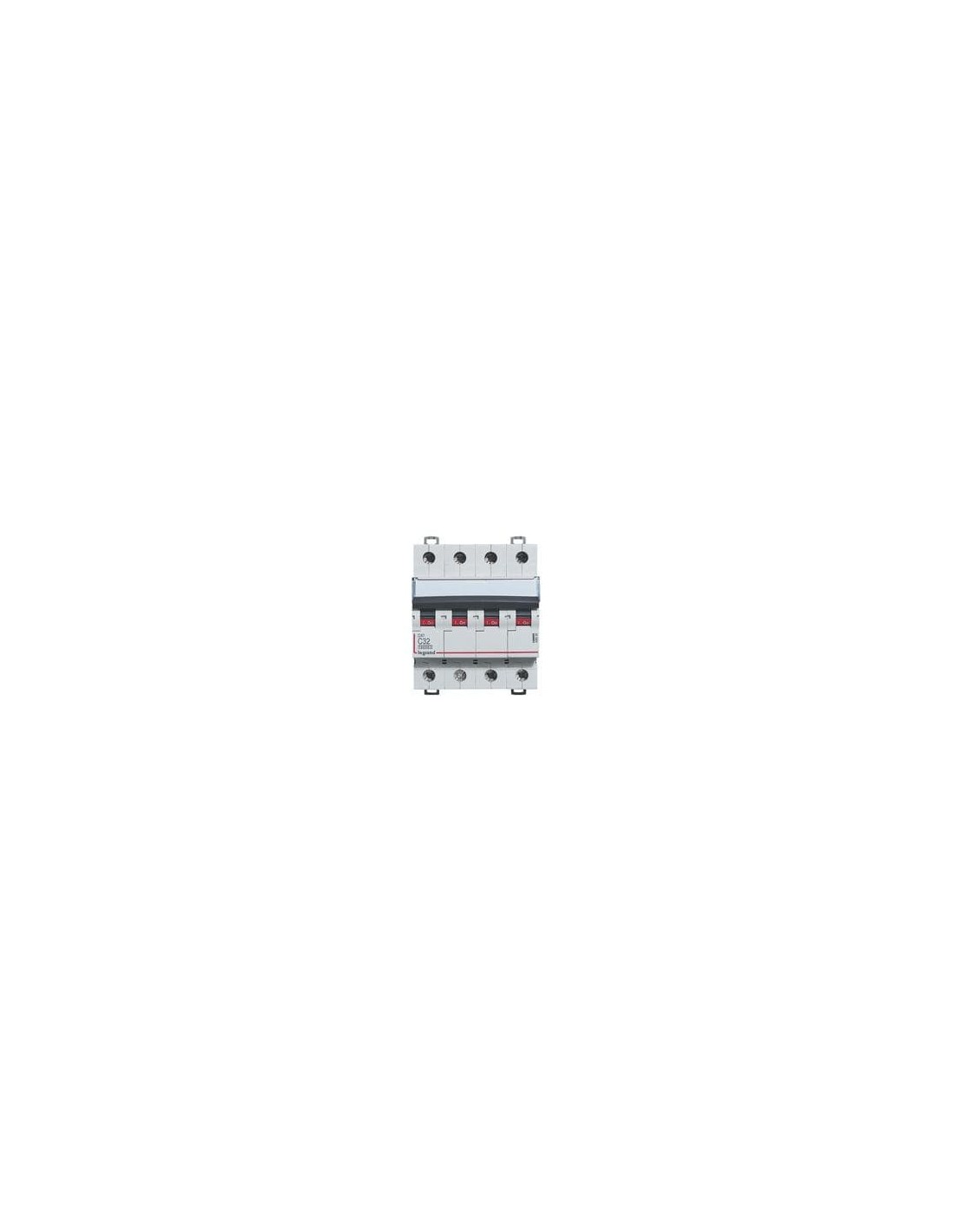

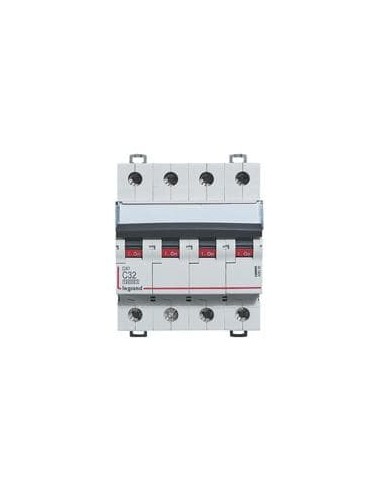

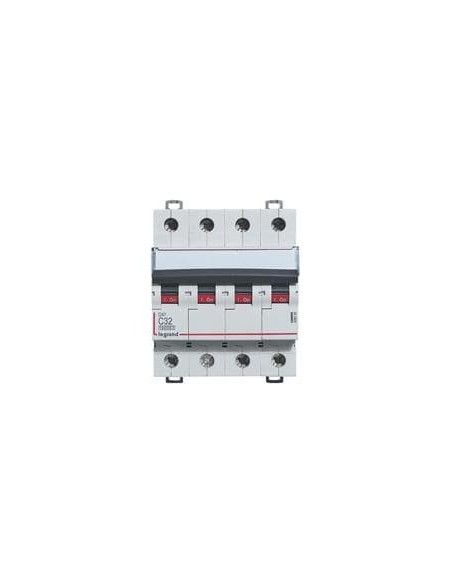

4-pole molded case circuit breaker designed to protect electrical installations against overloads and short circuits. It also allows for the control and isolation of the installation. Its compact design and technical features make it suitable for industrial and commercial applications where reliable protection and compliance with European standards are required.
Technical features
- Rated current: 32 A
- Nominal voltage: 400 V AC
- Tripping curve: C
- Number of poles: 4 (all protected)
- Breaking capacity: 16 kA at 230V (EN 60898), 10 kA at 400V (EN 60898)
- Breaking capacity: 32 kA at 230V (EN 60947-2), 16 kA at 400V (EN 60947-2)
- Insulation voltage Ui: 500 V
- Impulse voltage Uimp: 4 kV
- Frequency: 50...60 Hz
- Current limitation class: 3
- Flush mounting: Yes
- Simultaneous neutral switching: Yes
- Pollution degree: 2
- Width: 4 modules
- Protection rating: IP20
- Operating temperature: -25...70 °C
- Conductor cross-section: 1.5...25 mm² (multiple), 1.5...35 mm² (rigid)
- Construction depth: 44 mm
This breaker offers robust and versatile protection, with connection capacity for multiple conductors and compatibility with additional equipment. Its flush design and simultaneous neutral switching facilitate integration into modern electrical panels.
