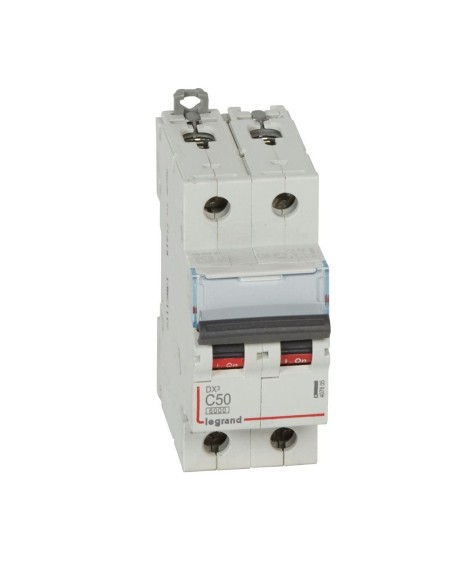

MCCB 2P 50A Curve C 10kA 230/400V

MCCB 2P 50A Curve C 10kA 230/400V

MCCB 2P 50A Curve C 10kA 230/400V

Available In stock 3 Items

Reference LEGRAND 407805

€76.18

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP20

2-pole miniature circuit breaker with a rated current of 50 A and C tripping curve. Designed for protection against overloads and short circuits in 230/400 V installations. Offers a breaking capacity of 10 kA according to EN 60947-2 and occupies 2 DIN modules.

Description

2-pole miniature circuit breaker designed for the protection of electrical installations against overloads and short circuits. It also allows for the control and isolation of the installation. Its compact 2-module design facilitates integration into standard electrical panels.

Technical features

Rated current: 50 A
Tripping curve: C
Nominal voltage: 230/400 V~
Breaking capacity: 6 kA at 400 V (EN 60898) and 10 kA at 400 V (EN 60947-2)
Breaking capacity: 25 kA at 230 V (EN 60947-2)
Nominal insulation voltage (Ui): 500 V
Maximum impulse voltage (Uimp): 4 kV
Frequency: 50...60 Hz
Current limiting class: 3
Protection rating: IP20
Ambient temperature: -25...70 °C
Connection cross-section: 1.5...25 mm² (multiple conductors) and 1.5...35 mm² (rigid cable)
Construction depth: 44 mm
Flush mounting: Yes

This device offers a rapid response to electrical faults thanks to its C tripping curve and high breaking capacity. Compatibility with additional equipment allows for expanding its functionality according to the installation's needs.

Product Details

Dimensiones

Long	44 mm

Eléctrico

Nominal voltage (V)	230/400
Rated current (A)	50

Protección

Protection	IP20

Otras

Curve	C
EAN	3245064078054
Manufacturer	LEGRAND
No. of poles	2P
Reference	LEGRAND 407805

Información legal

Fabricante	LEGRAND
Dirección	C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email	[email protected]
Teléfono	+34 916561812
Referencia	LEGRAND 407805
EAN	3245064078054

Advertencias de seguridad

No

In stock 3 Items

Downloads

Product sheet Store PDF Download
