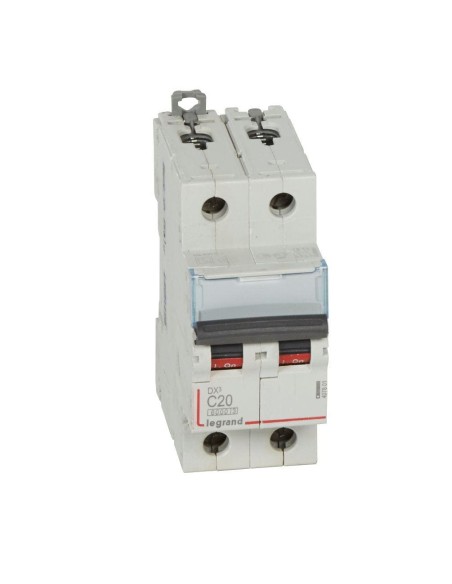

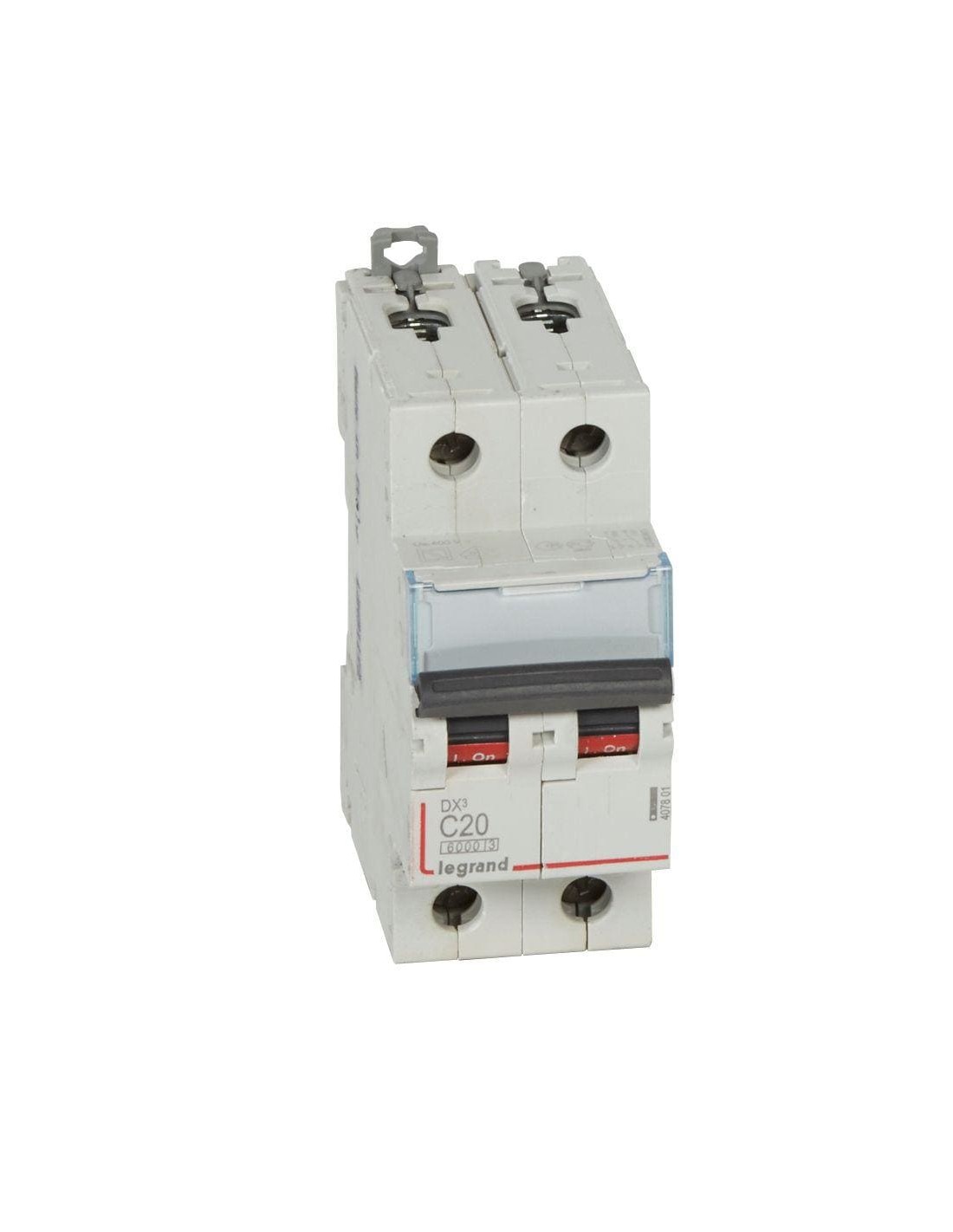

MCCB 2P 20A C Curve 10kA

MCCB 2P 20A C Curve 10kA

MCCB 2P 20A C Curve 10kA

Available In stock 12 Items

Reference LEGRAND 407801

€28.76

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP20

2-pole miniature circuit breaker with a rated current of 20 A and C tripping curve. Protects installations against overloads and short circuits, with a breaking capacity of 6 kA at 400 V according to EN 60898.

Description

2-pole miniature circuit breaker designed to protect electrical installations against overloads and short circuits. It also allows for the control and isolation of the installation, offering a reliable solution for current management in low-voltage circuits.

Technical features

Rated current: 20 A
Tripping curve: C
Nominal voltage: 400 V AC
Breaking capacity: 10 kA at 400V (EN 60947-2) and 6 kA at 400V (EN 60898)
Nominal insulation voltage (Ui): 500 V
Maximum impulse voltage (Uimp): 4 kV
Frequency: 50...60 Hz
Current limiting class: 3
Protection rating: IP20
Operating temperature: -25...70 °C
Connection cross-section: 1.5...25 mm² (multiple conductors) and 1.5...35 mm² (rigid cable)
Dimensions: 2 modules wide, 44 mm deep
Flush mounting: yes

This device guarantees a fast response to electrical faults, protecting connected equipment and the integrity of the installation. Its compact 2-module design facilitates integration into standard electrical panels, while its versatile connection capacity adapts to different types of wiring.

Product Details

Dimensiones

Measures	2 módulos de anchura, 44 mm de profundidad

Eléctrico

Nominal voltage (V)	400 V
Rated voltage	400
Rated current (A)	20

Protección

Protection	IP20

Otras

Curve	C
EAN	3245064078016
Manufacturer	LEGRAND
No. of poles	2P
Reference	LEGRAND 407801

Información legal

Fabricante	LEGRAND
Dirección	C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email	[email protected]
Teléfono	+34 916561812
Referencia	LEGRAND 407801
EAN	3245064078016

Advertencias de seguridad

No

In stock 12 Items

Downloads

Product sheet Store PDF Download
