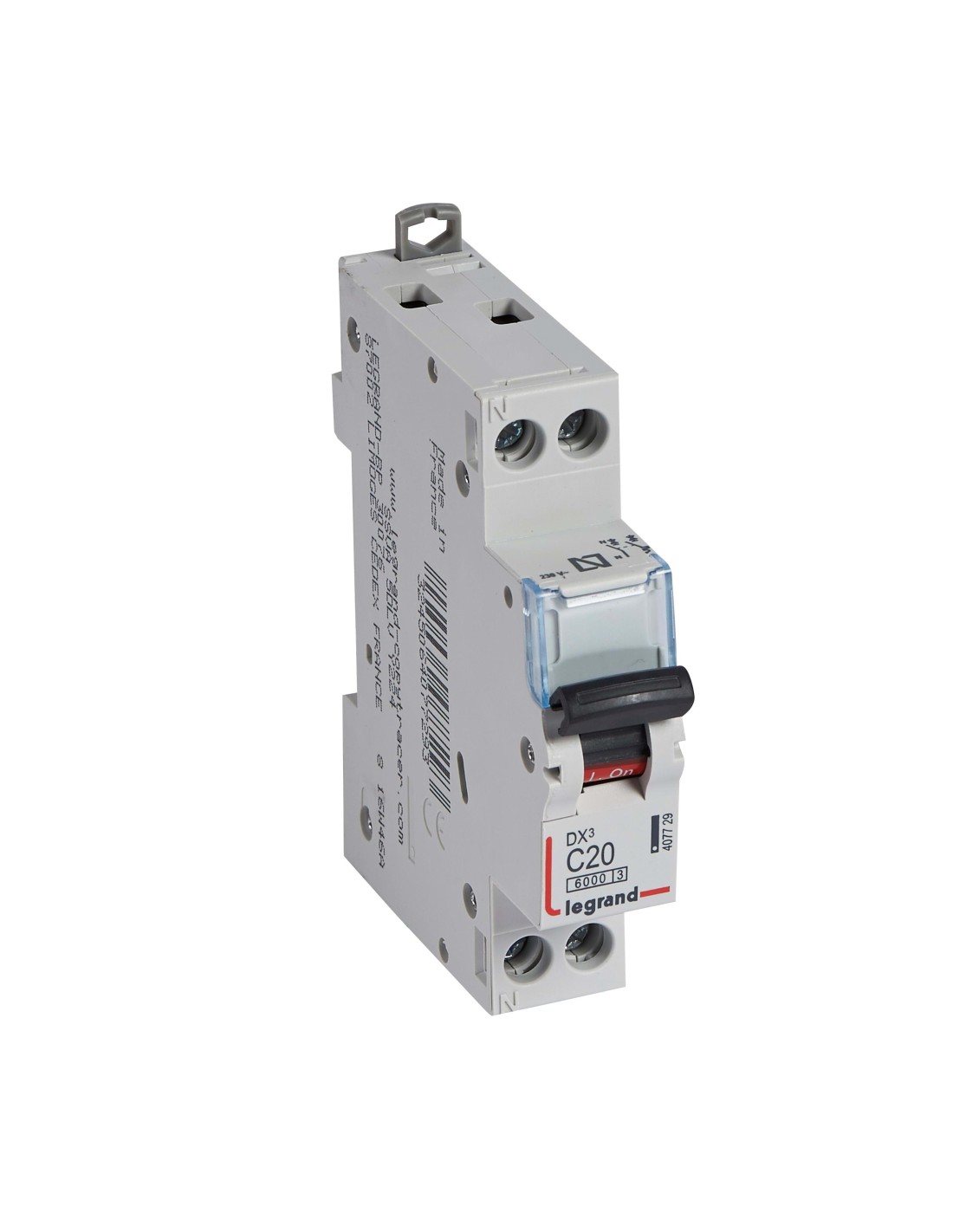

MCB 1P+N 20A Curve C 10 kA 1 Module

MCB 1P+N 20A Curve C 10 kA 1 Module

MCB 1P+N 20A Curve C 10 kA 1 Module

Available In stock 18 Items

Reference LEGRAND 407729

€22.18

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP20

1P+N miniature circuit breaker with a rated current of 20 A and C tripping curve. Protects installations against overloads and short circuits with a breaking capacity of 6 kA according to EN 60898. Occupies 1 module, accepts cables from 0.75 to 10 mm², and operates at 230 V AC in the 50 to 60 Hz range.

Description

1-module miniature circuit breaker designed to protect electrical installations against overloads and short circuits. It also allows for the control and isolation of the line, ensuring the safety of the circuit and users.

Technical features

Rated current: 20 A
Rated voltage: 230 V AC
Tripping curve: C
Breaking capacity: 6 kA (EN 60898) and 10 kA (EN 60947-2)
Poles: 1 protected + 1 neutral (1P+N)
Width: 1 module
Depth: 44 mm
Protection rating: IP20
Frequency: 50...60 Hz
Operating temperature: -25...70 °C
Connection: 0.75...16 mm² (rigid cable)
Current limiting class: 3
Flush mounting: yes

This device offers a rapid response to electrical faults, protecting connected equipment. Its compact design facilitates integration into standard electrical panels, optimizing available space.

Product Details

Dimensiones

Long	44 mm

Eléctrico

Nominal voltage (V)	230
Rated voltage	230
Rated current (A)	20

Protección

Protection	IP20

Otras

Curve	C
EAN	3245064077293
Manufacturer	LEGRAND
No. of poles	1P+N
Reference	LEGRAND 407729
Cable cross-section (mm²)	16 mm²

Información legal

Fabricante	LEGRAND
Dirección	C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email	[email protected]
Teléfono	+34 916561812
Referencia	LEGRAND 407729
EAN	3245064077293

Advertencias de seguridad

No

In stock 18 Items

Downloads

Product sheet Store PDF Download

Reviews (0)

No reviews
