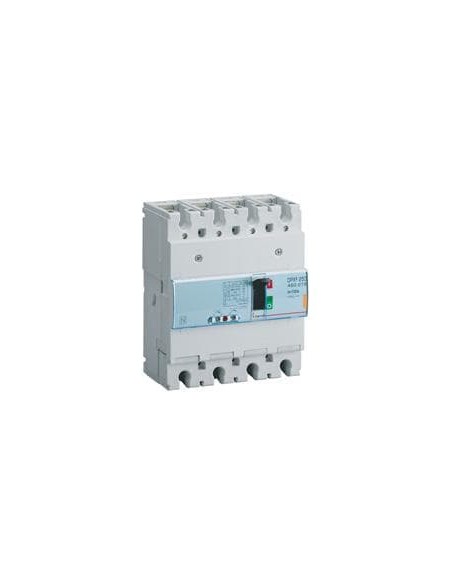

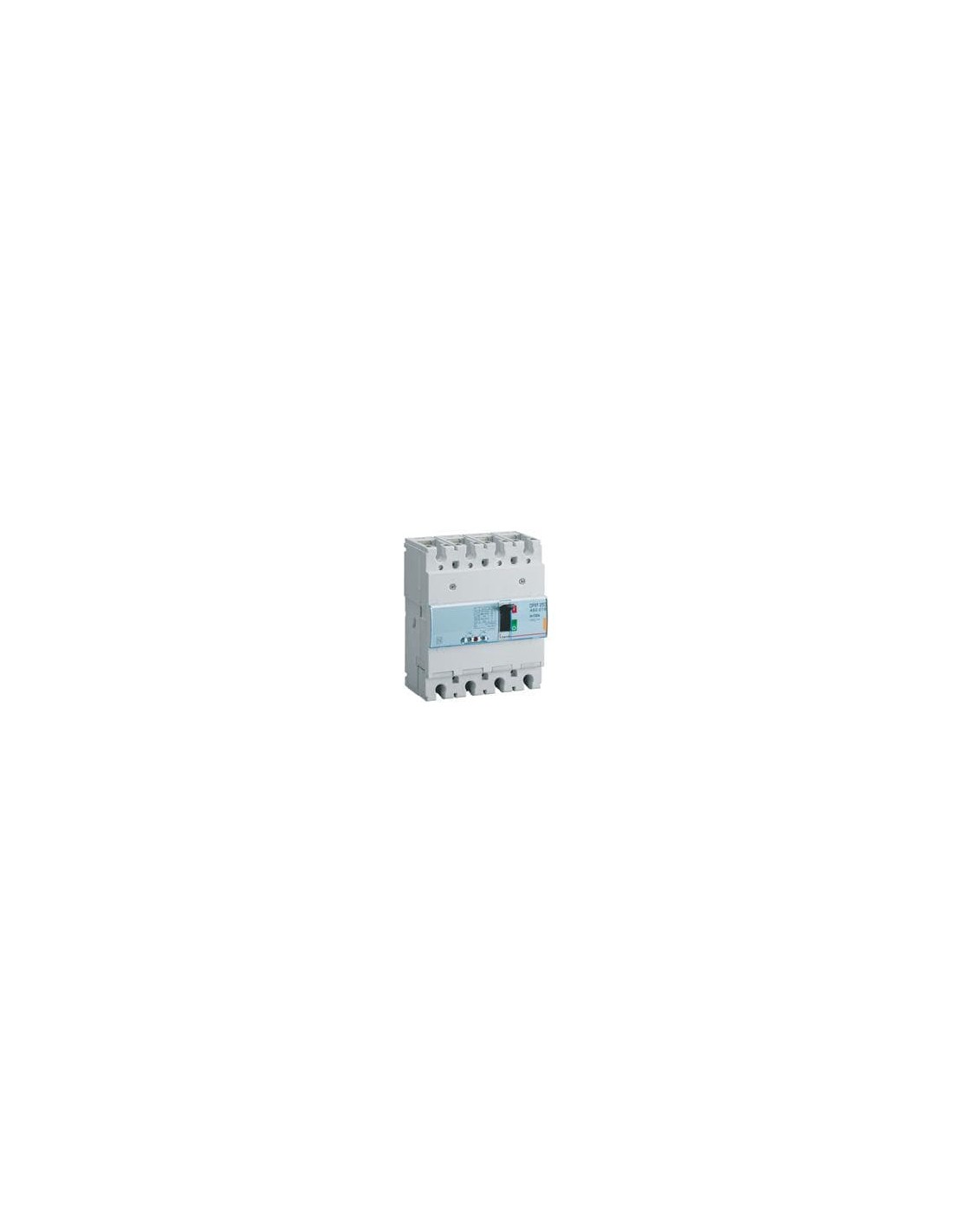

Molded case circuit breaker 4P 100A 25kA

DPX³ 250 4-pole molded case circuit breaker, designed to protect electrical circuits against overloads and short circuits. This device provides an integrated and fixed protection solution, ensuring the safety and stability of electrical installations in industrial or commercial environments.

Technical features

• Rated current (In): 100 A
• Breaking capacity (Icu): 25 kA at 400 V~
• Rated voltage range: 220...690 V
• Thermal protection setting: 80...100 A
• Magnetic protection setting: 500...1000 A
• Number of poles: 4
• Main connection: Threaded
• Mounting: Compatible with DIN rail and top guide
• Auxiliary contacts: 1 NC, 1 changeover
• Protection rating: IP30
• Control element: Handle
• Undervoltage release: Integrated

This breaker allows precise adjustment of protection thresholds, adapting to the specific needs of the connected load. The presence of auxiliary contacts and a disconnection indicator facilitates integration into control and monitoring systems. Its compact design and the option for motorized operation make it versatile for different mounting configurations.
