iC60LMA 2P 4A MA
iC60LMA 2P 4A MA

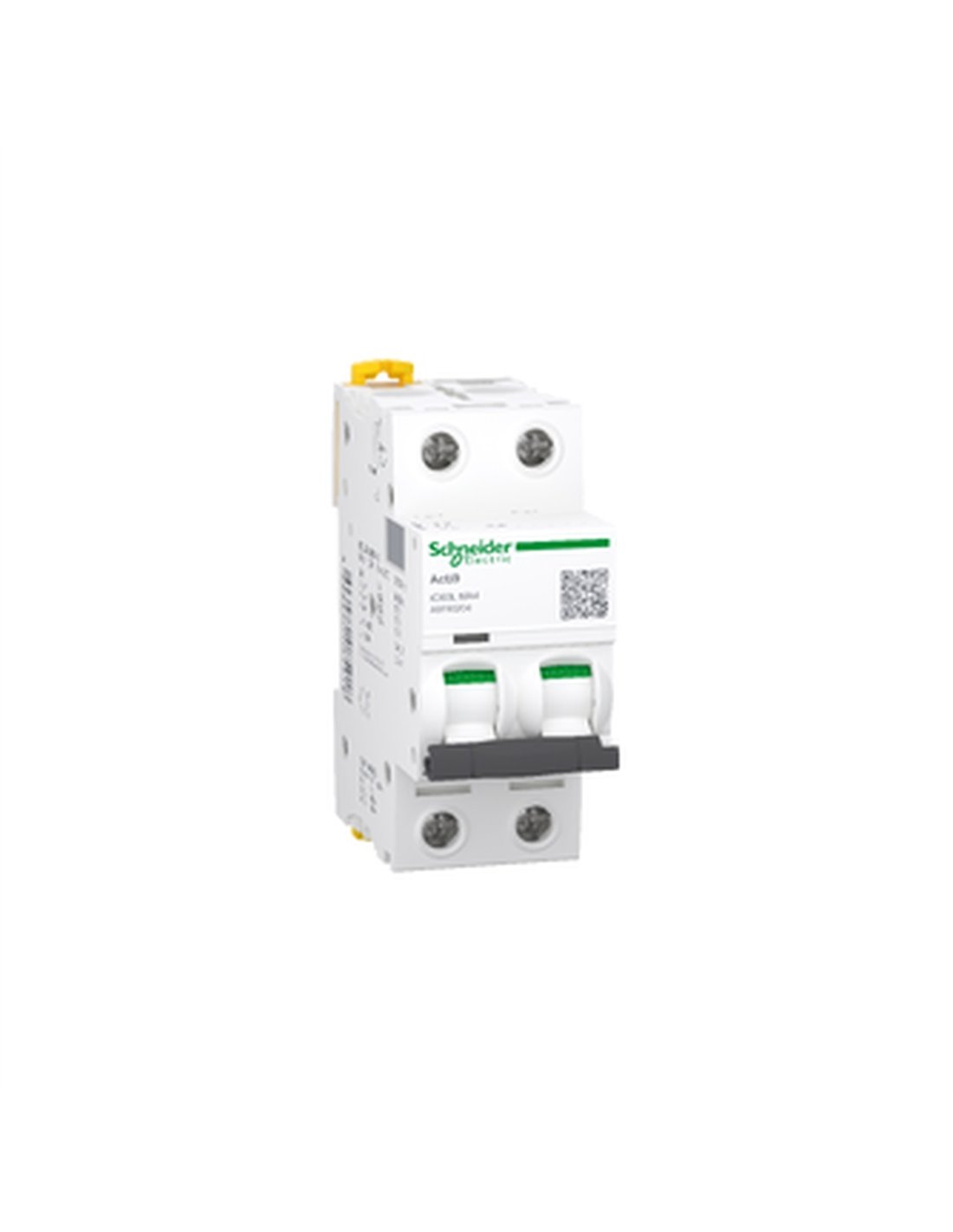

Automatic switch iC60L MA 2P 4A 15kA 220-240V DC - SCHNEIDER

IMPO A9F90204
Available
€93.69
VAT included
Acti 9 iC60 RCBO miniature circuit breaker, model iC60LMA 2P 4A MA. Designed for DC networks, with a breaking capacity of up to 40 kA. Ideal for residential applications, with IP20 protection and a wide operating temperature range.
10 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The Acti 9 iC60 RCBO (iC60LMA 2P 4A MA) is a miniature circuit breaker from the PowerLogic range, designed to provide effective protection in direct current (DC) systems. This device features a highly reliable motor and magnetic trip unit technology, ensuring optimal performance in various residential applications.

With 2 poles and a rated current of 4 A, the iC60L is ideal for environments where safe and efficient interruption is required. Its breaking capacity reaches up to 40 kA Icu at 220–240 V DC, guaranteeing robust protection against overloads and short circuits.

Furthermore, it complies with HB1 and EN 50 A standards, making it a reliable choice for electrical installations. Among its technical features are: Mains frequency: 50/60 Hz, Rated operating voltage: 220-240 V DC, 380-415 V DC, 440 V DC, Breaking capacity in service: up to 20 kA, Limitation class: 3 according to EN 60898-1, Protection rating: IP20, Operating ambient temperature: -35-70 °C, Mechanical durability: 20,000 cycles, Connections: single terminal for rigid and flexible cables, Dimensions: 85 mm (height) x 36 mm (width) x 78.5 mm (depth)
  • Weight: 0.25 kg

    • Product Details

    Rated current (A)
    4 A
    Curve
    MA
    EAN
    3606480085918
    Manufacturer
    SCHNEIDER
    No. of poles
    2P
    Reference
    SCHNEIDER A9F90204
