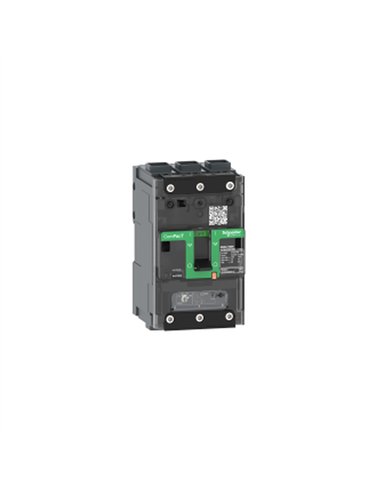

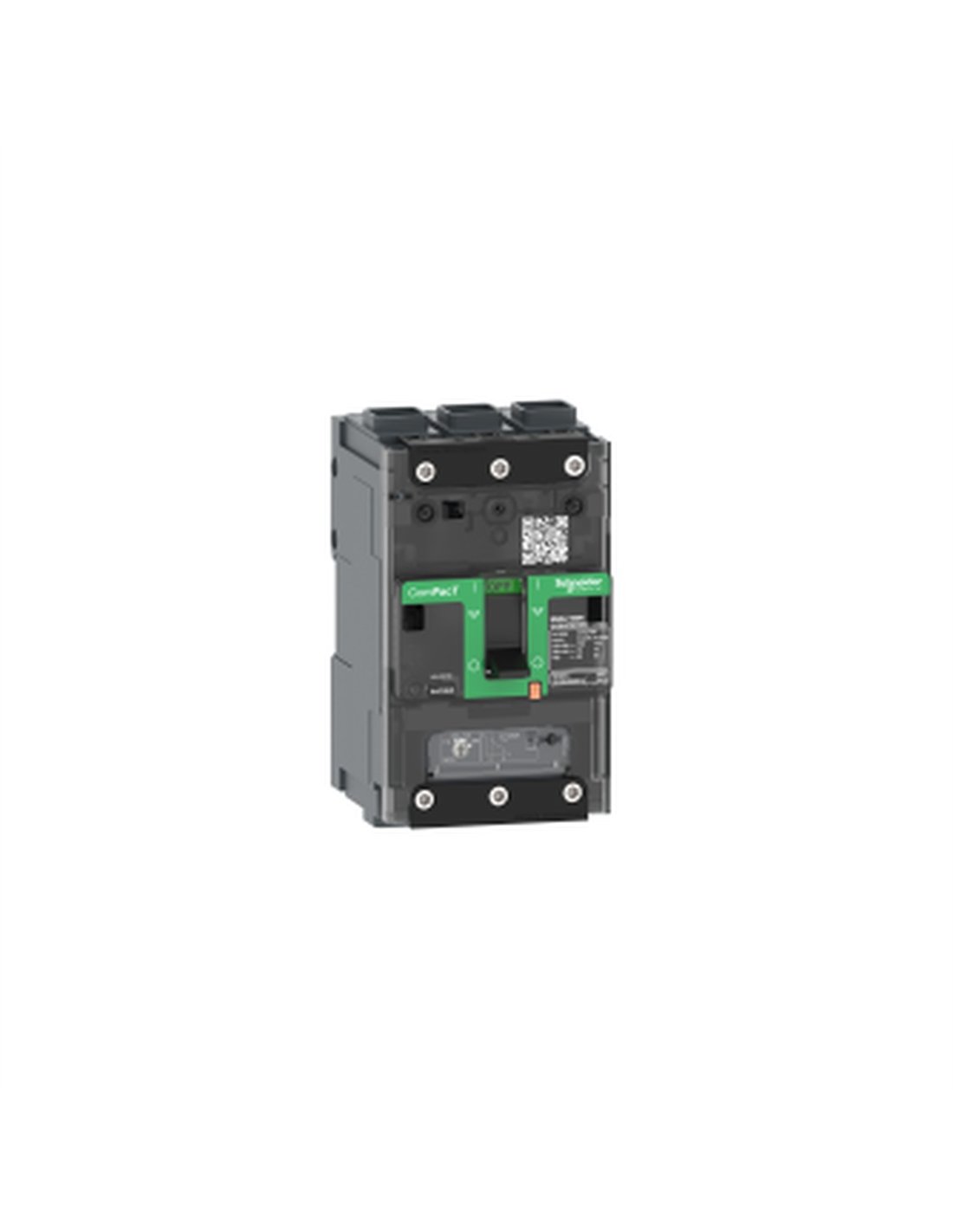

The NSXm100F 36kA AC 3P 80A TMD ELINK circuit breaker from the New Generation ComPacT range is an advanced solution for electrical circuit protection. Designed for applications with currents above 0.1 A, this three-pole (3P) device offers a rated current of 80 A at 40 °C and a rated operating voltage of up to 690 V AC at 50/60 Hz. Its breaking capacity is remarkable, reaching up to 85 kA Icu at 220–240 V AC and 36 kA Icu at 380–415 V AC, ensuring effective protection under various operating conditions.
The NSXm 100F features a TM-D control unit and utilizes thermal-magnetic tripping technology, enabling it to offer LIG protection functions.
Its design allows for fixed mounting in horizontal and vertical positions, with accessible connections on the front and top. Furthermore, its mechanical and electrical durability is guaranteed for 20,000 cycles, ensuring reliable performance over time.
- Rated current: 80 A at 40 °C
- Rated insulation voltage: 800 V AC
- Breaking capacity: 85 kA at 220…240 V AC
- Mechanical durability: 20,000 cycles
- Protection rating: IP40
- Operating temperature: -25…70 °C
- Dimensions: 81 mm (width) x 137 mm (height) x 80 mm (depth)
- Weight: 1.06 kg
- Connections: 2.5…95 mm² rigid or stranded
- Color: Gray (RAL) 7016)
