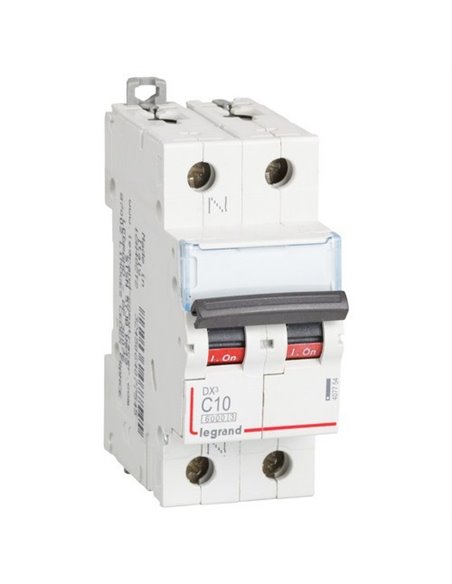

Circuit breaker DX3 6/10kA-CP + N 10A

The DX3 6/10KA-C circuit breaker is a 230 V~ single pole + neutral circuit breaker, with a nominal current of 10A and a C curve. It is a product of the MCB DX³ 6000 series with a breaking capacity of 10 kA, which guarantees optimal protection. This device complies with UNE EN-60898-1 safety standards and is equipped with terminals protected against direct contact (IP20), captive screws and a built-in label holder.

Technical characteristics:

• Switch type: single pole + neutral magnetothermic
• Rated voltage: 230 V~
• Rated current: 10A
• Tripping curve: C curve
• Number of poles: 2 (1P + N)
• Termination capacity: 25 mm² flexible/35 mm² rigid
• Breaking capacity: 10 kA
• Compliance with safety standards: UNE EN-60898-1
• Connection with terminals protected against direct contact (IP20)
• Captive screws
• Incorporated label holder
• Admits connection with differential blocks, motorized controls and DX³ command and signaling auxiliaries
