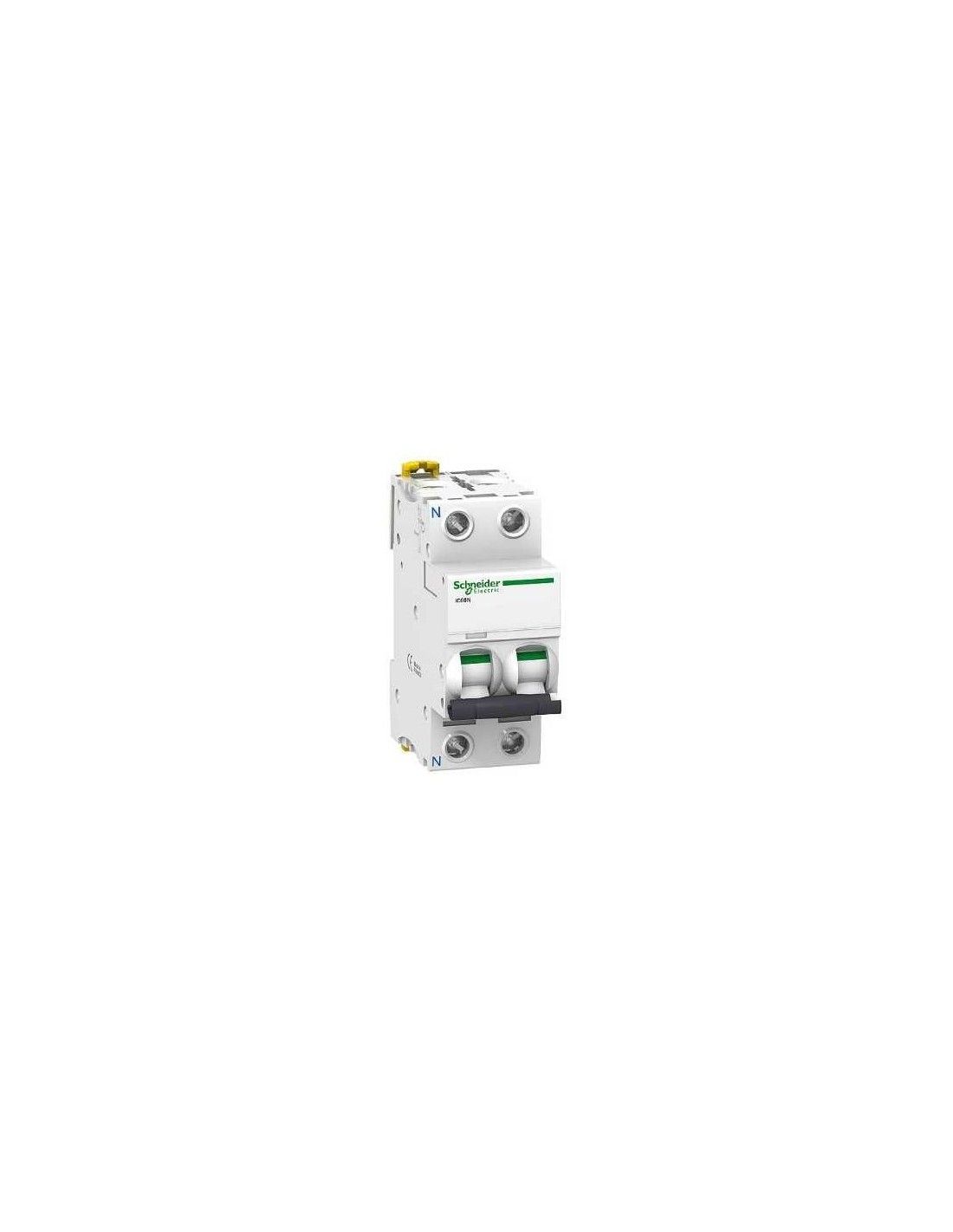

INT.AUT Schneider iC60N 1PN 63A C 6000A Acc

Automatic circuit breaker iC60N 1P+N 63A curve-C

INT.AUT Schneider iC60N 1PN 63A C 6000A Acc

Automatic circuit breaker iC60N 1P+N 63A curve-C

Automatic circuit breaker iC60N 1P+N 63A curve-C

1 Reviews

Out of stock

Reference SCHNEIDER A9F79663

€98.82

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

iC60N Acti 9 thermal-magnetic circuit breaker, 1P+N, 63A, curve C, IP20, thermal-magnetic, suitable for isolation, contact position indicator, handle control, trip indicator, fixed mounting, DIN rail support, protection against ground leakage with independent block, measures 85x36x78.5mm, weighs 0.25kg and is white. Breaking capacity: 20 kA Icu according to IEC 60947-2, 100...133 V AC 50/60 Hz, 10 kA Icu according to IEC 60947-2, 220...240 V AC 50/60 Hz, 10 kA Icu conforming to EN 60947-2, 220...240 V AC 50/60 Hz, 6000 A Icn conforming to IEC 60898-1, 230 V AC 50/60 Hz, 36 kA Icu conforming to IEC 60947 -2, 12...60 V AC 50/60 Hz, 6000 A Icn according to EN 60898-1, 230 V AC 50/60 Hz, 20 kA Icu according to EN 60947-2, 100...133 V AC 50/60 Hz, 36 kA Icu conforming to EN 60947-2, 12...60 V AC 50/60 Hz, utilization category A conforming to IEC 60947-2 and EN 60947-2, suitable for isolating according to EN 60898-1, IEC 60947-2, IEC 60898-1 and EN 60947-2, standards: EN 60898-1, IEC 60947-2, IEC 60898-1 and EN 60947-2.

Product Details

Dimensiones

Weight (kg)	0,25

Eléctrico

Rated current (A)	63

Otras

Curve	C
EAN	3606480093562
Manufacturer	Schneider
No. of poles	1P+N
Reference	SCHNEIDER A9F79663

Información legal

Fabricante	Schneider Electric España, S.A.
Dirección	Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email	[email protected]
Teléfono	+34 930289900
Referencia	SCHNEIDER A9F79663
EAN	3606480093562

Downloads

Product sheet Store PDF Download

Reviews (1)

1 Reviews

Bien resuelto

Funciona como se promete y no me ha dado problemas.

By Haizea A. on 2026-08-06
