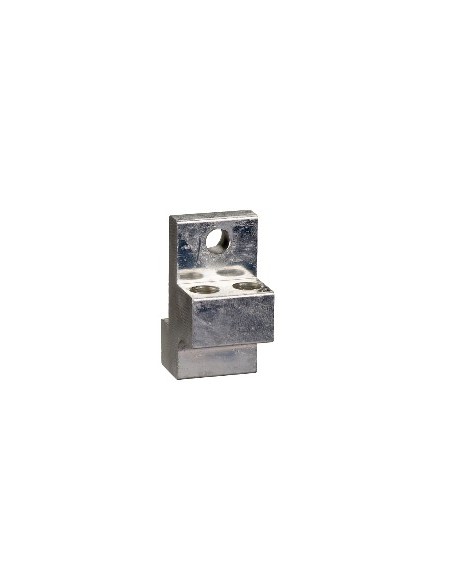

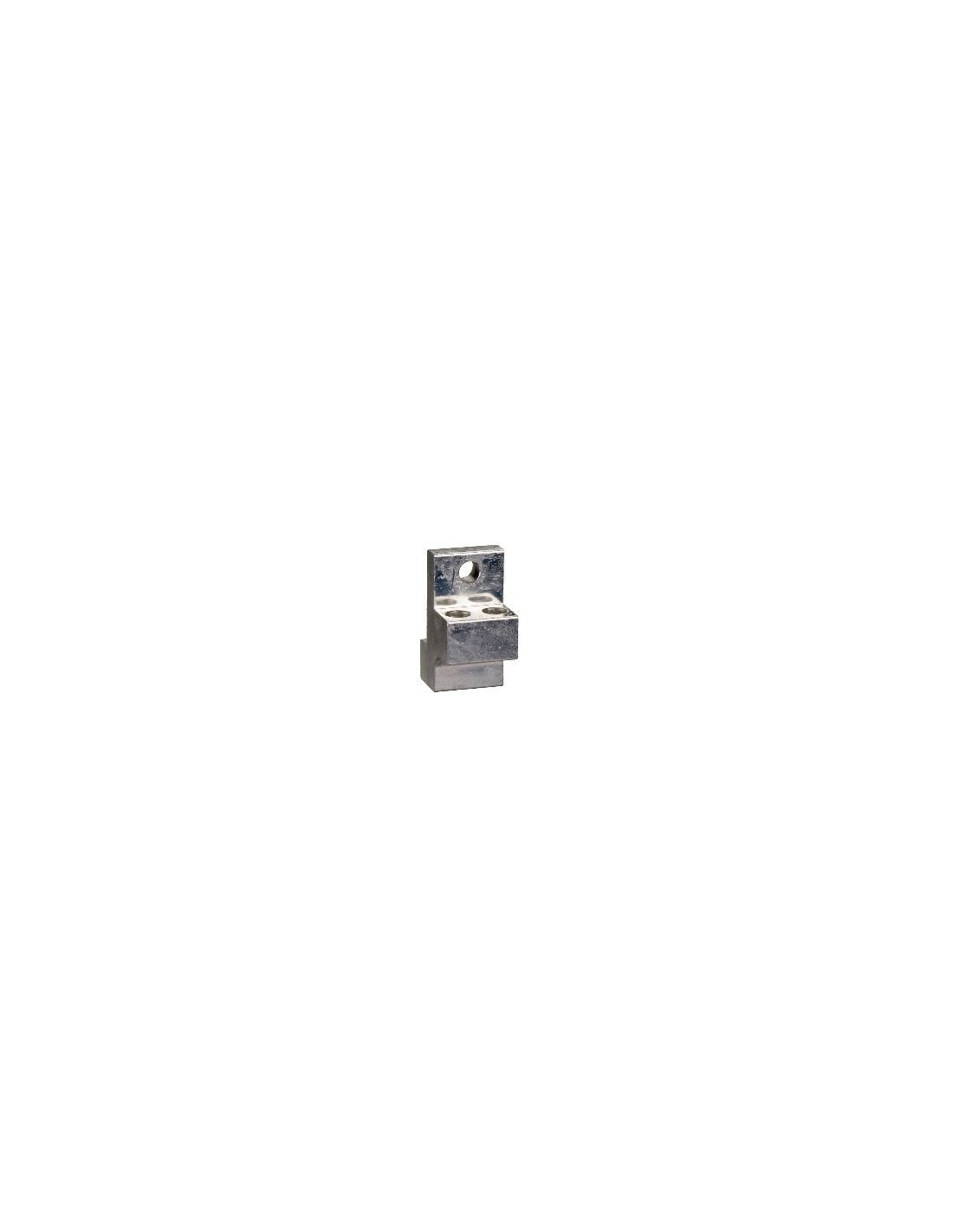

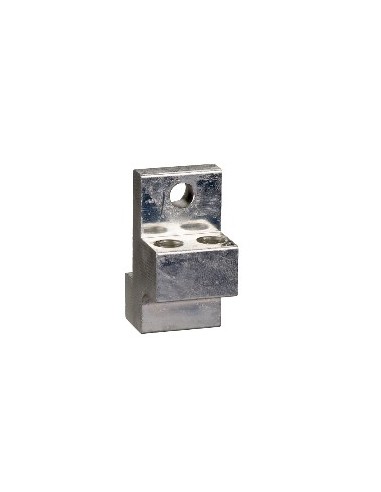

Distribution Connector 3 Terminals 25 mm²

Distribution Connector 3 Terminals 25 mm²

Distribution Connector 3 Terminals 25 mm²

Available In stock 7 Items

Reference IMPO 28949

€127.92

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Distribution connector terminal type for electrical installations in the ComPact range, compatible with INSE80 systems. Includes 3 terminals for 4 cables of 25 mm² section, with insulating separator. Designed for nominal currents up to 160 A, made from resistant materials and compliant with EU RoHS and REACh regulations.

Description

Distribution connector terminal type, designed for use in electrical systems of the ComPact (Compact INSE) range. Composed of a set of 3 terminals with 4 cables each, allowing secure and organized connections in industrial or distribution installations. Nominal current ranges from 0 to 160 A, suitable for medium-power applications.

Technical Features

Product range: INS40...160 INSE80
Range: ComPact
Device short name: distribution connectors
Product or component type: Terminal
Accessory / separate part category: Connection accessory
Range compatibility: Compact (Compact INSE) Compact (Compact INSE)
Quantity per set: Set of 3
[In] Nominal current: 0…160 A
Number of units in package 1: 1
Package 1 Height: 3.0 cm
Package 1 Width: 10.0 cm
Package 1 Length: 11.0 cm
Package 1 Weight: 124.0 g
Number of units in package 2: 30
Package 2 Height: 30.0 cm
Package 2 Width: 30.0 cm
Package 2 Length: 40.0 cm
Package 2 Weight: 4.148 kg
Sustainable offering status: Green Premium Product
REACh Regulation: Reference contains SVHC above threshold
EU RoHS Directive: Compliant
Free from toxic heavy metals: Yes
Mercury-free: Yes
China RoHS Regulation: Product outside the scope of China RoHS. Substance information declaration
RoHS exemptions information: Yes
WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and never end up in a regular trash container

Product Details

Dimensiones

Measures	11,0 cm
Long	11,0 cm
Depth	3,0 cm
Weight (kg)	0,124 kg

Otras

EAN	3303430289494
Manufacturer	SCHNEIDER
Range	Industrial
Intensity	160
Reference	IMPO 28949
Cable cross-section (mm²)	25

Información legal

Fabricante	SCHNEIDER
Dirección	Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email	[email protected]
Teléfono	+34 930289900
Referencia	IMPO 28949
EAN	3303430289494

In stock 7 Items

Downloads

Product sheet Store PDF Download

Reviews (0)

No reviews

11 other products in the same category:

CABEZA SETA 30MM.EMERG.C/FRAUDES

CABEZA SETA 30MM.EMERG.C/FRAUDES 2

Available

Accessories for electric boxes

Mushroom pushbutton head diameter 30 turn red with plastic trim

IMPO ZB5AS834

Emergency mushroom head Ø 30 turn to release Ø 22. Product range: Harmony XB5. Device short name: ZB5. Plastic bezel. 22mm mounting diameter. Round head. Activation action operator and mechanical coupling. Reset: Twist to release. Round red Ø 30 mm without mark.

Piloto iIL simple rojo

Available

Accessories for electric boxes

ACTI 9 LED red modular pilot light 12-48 V AC/DC, IP2, DIN rail mounting

IMPO A9E18330

The Acti 9 iINT IIL modular pilot light in red is designed for fixed DIN rail mounting. Compatible with 12 to 48 V AC/DC, it provides local signaling with a long-life LED. Ideal for residential and small commercial environments.

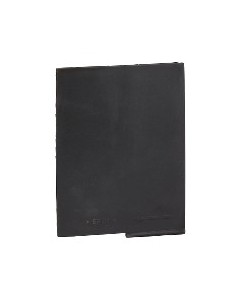

Phase separators 4P set of 6

New

Available

Accessories for electric boxes

Phase separators 4P set of 6

IMPO 31315

4P phase separators for power installations in the ComPact NB range, designed for safe insulation between poles in automatic switches. Made of PVC-free and mercury-free materials, they comply with proactive RoHS EU compliance. Compatible with INV630b to 1600 and INS630b to 1600 models. Includes 6 units per game.

CABEZA PILOTO LUM.VERDE

CABEZA PILOTO LUM.VERDE 2

Available

Accessories for electric boxes

Head with green BA9s lamp

IMPO ZB4BV03

Pilot light head mounting diameter 22mm round smooth green lenses, Harmony XB4 product range. Product compatibility with BA 9s. 3dB bezel material. It has dimensions of 29mm wide, 29mm high and 31mm deep. The Harmony XB4 range is designed for industry, this range combines ease of setup, flexibility and robust construction. An ingenious locking system...

CABEZA SEL. 2POS. C.LLAVE

CABEZA SEL. 2POS. C.LLAVE 2

Available

Accessories for electric boxes

Selector head diameter 22 key 2 turn metallic trim

IMPO ZB4BG6

Selector head with key 2 positions Ø 22. Product range: Harmony XB4. Device short name: ZB4. Bezel Material: 3dB 22mm mounting diameter. Round head. Operator, right to left. Black color key switch. 2 90° positions. Lock with Ronis 455 key. Key removal position, left.

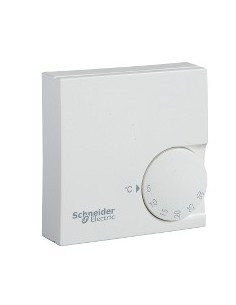

Wall Thermostat Multi 9 TH 5–30 °C
