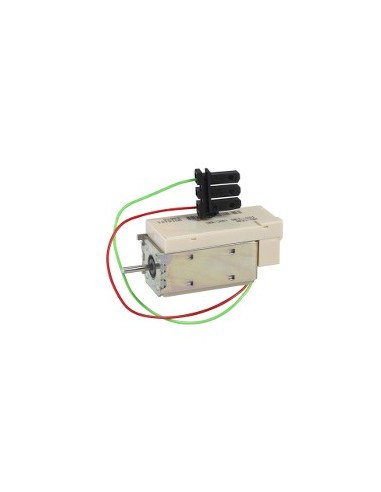

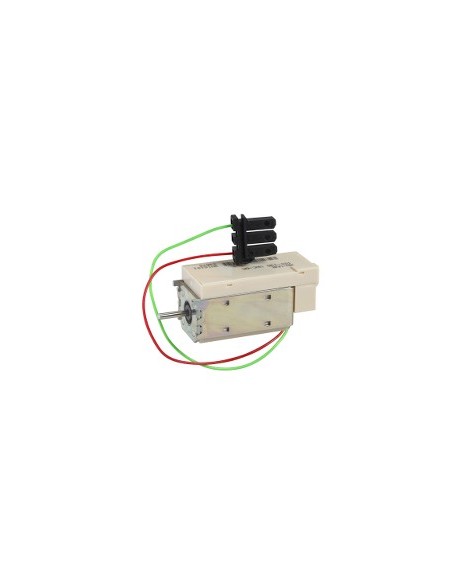

Fixed trip coil MX 24-30 VAC/DC
Fixed trip coil MX 24-30 VAC/DC

Fixed trip coil MX 24-30 VAC/DC

Available In stock 10 Items Reference IMPO 33659
€169.56
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía

Liber deseng deriv shooting coil for fixed automatic switches of the Masterpact NT, NW and Compact NS630b ranges...3200. Works with 24 V AC control voltage 50 Hz or 24...30 V DC. Shot threshold between 0.7 and 1.1 times the nominal voltage. Maintenance power of 4.5 VA.

Description

MX firing coil for fixed switches of the range Masterpact NT, Masterpact NW, Compact NS630b...1600 and Compact NS1600b...3200. Designed for control applications, it allows the operation of the switch under control circuit voltages of 24 V AC 50 Hz or between 24 and 30 V DC. Its coil type is Liber deseng deriv, with trigger voltage threshold between 0.7 and 1.1 times the nominal value.

Technical characteristics

  • Control circuit voltage: 24 V AC 50 Hz, 24...30 V DC
  • Threshold of firing voltage: 0.7...1.1 x One
  • Maintenance power supply: 4.5 VA
  • Type of assembly: Fixed
  • Response time: 50 ms (Compact NS630b...1600), 55 ms (Compact NS1600b...3200), 70 ms (Masterpact NT), 70 ms (Masterpact NW)
  • Type of shot coil: Liber deseng deriv
  • Compatibility: Masterpact NT, Masterpact NW, Compact NS630b...1600, Compact NS1600b...3200
  • REACh Regulation: Contains SVHC over the threshold
  • EU RoHS Directive: Proactive (out-of-scope) compliance
  • RoHS exemptions: Yes
  • RoHS China Regulations: Outside the scope
  • No mercury: Yes

Product Details

Eléctrico

Nominal voltage (V) 24 V CA 50 Hz, 24...30 V DC

Otras

Frequency 50 Hz
EAN 3303430336594
Manufacturer SCHNEIDER
Reference IMPO 33659

Información legal

Fabricante SCHNEIDER
Dirección Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email [email protected]
Teléfono +34 930289900
Referencia IMPO 33659
EAN 3303430336594
10 Items
