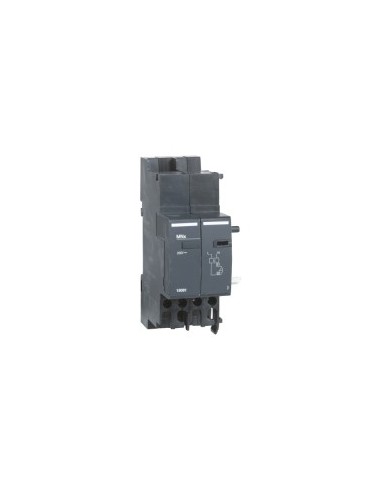

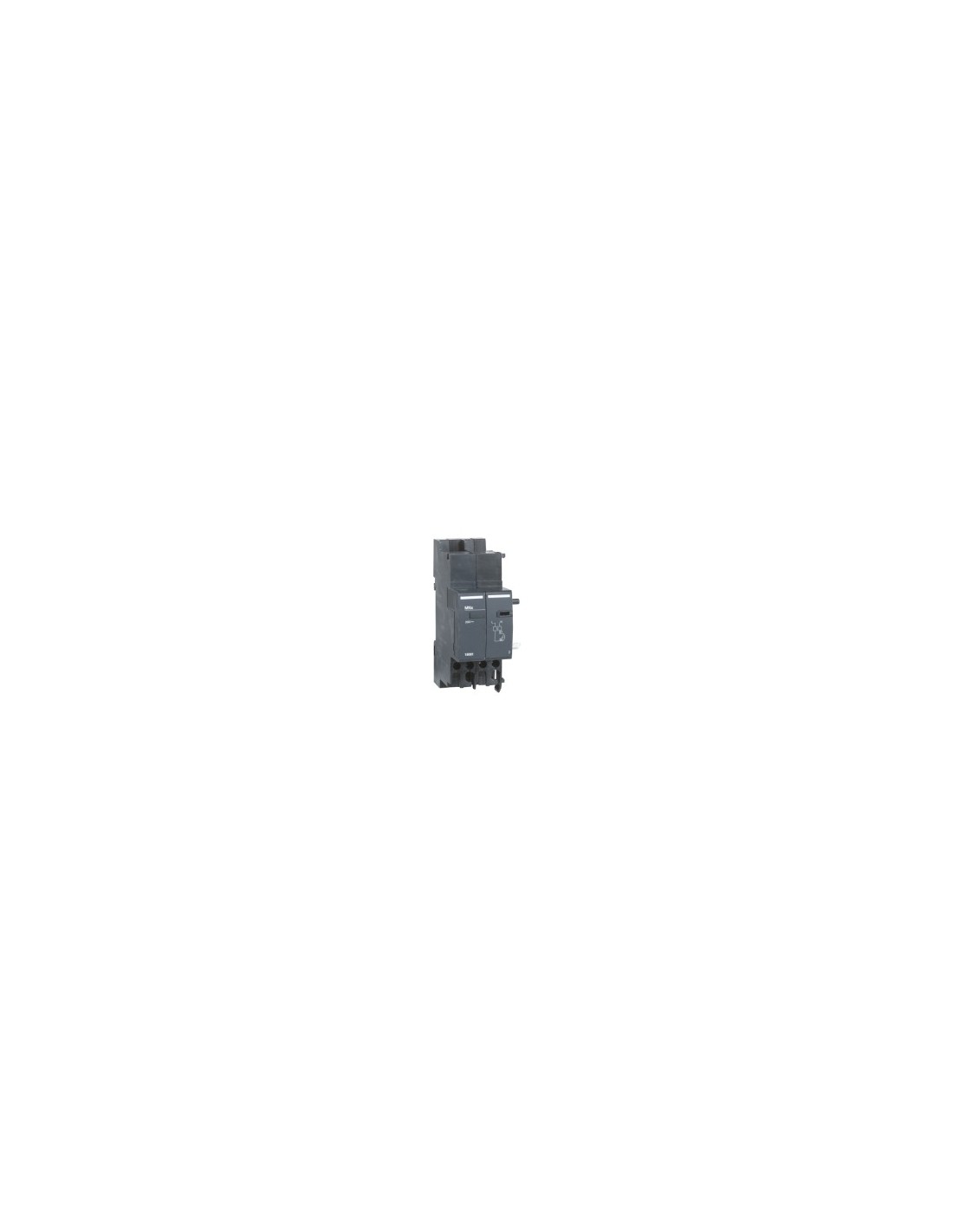

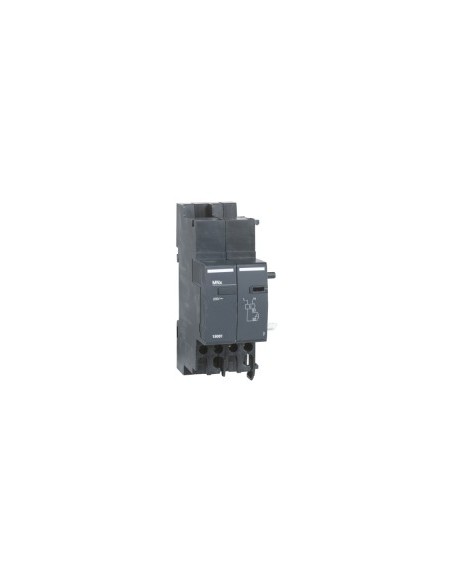

Minimum voltage coil MNx 220-240 V AC

Minimum voltage coil MNx designed to operate in control circuits with voltages of 220...240 V AC 50/60 Hz.

Technical characteristics

• Control circuit voltage: 220...240 V AC 50/60 Hz
• Control type: Standard
• Step distance: 9 mm
• Rated insulation voltage: 690 V AC 50/60 Hz (in accordance with EN/IEC 60947-5-1)
• Surge voltage withstand: 8 kV (in accordance with EN/IEC 60947-5-1)
• Protection degree IP: IP20 B and IP4 (in accordance with EN/IEC 60947-5-1)
• Contamination degree: 3 (in accordance with EN/IEC 60947-5-1)
• Overvoltage category: II
• Tropicalization: 2 (in accordance with EN/IEC 60947-5-1)
• Relative humidity: 95 % at 55 °C
• Operating ambient temperature: -25…60 °C
• Storage ambient temperature: -40…85 °C
• Electrical durability: 10000 cycles (in accordance with EN/IEC 60947-5-1)
• Connections: Plate terminal for 1 rigid cable 0,5…2,5 mm², 1 flexible cable 0,5…1,5 mm², 1 flexible cable 0,5…1,5 mm² with terminal, 2 flexible cables 2,5 mm², 2 rigid cables 2,5 mm², 2 flexible cables 1,5 mm² with terminal
• Stripping length for terminal connection: 10 mm
• Torque: 1 N·m
• Product weight: 0,199 kg
• Standards: EN/IEC 60947-5-1
• Certifications: ASEFA, KEMA, LCIE, ASTA
• Compliant with REACh without SVHC: Yes
• EU RoHS Directive: Compliant
• Free of toxic heavy metals: Yes
• Mercury-free: Yes
• RoHS exemption information: Yes
• China RoHS regulation: Proactive China RoHS declaration (outside legal scope of China RoHS)
• WEEE: In the European Union market, the product must be disposed of through specific waste collection systems
