Bipolar 16-pole comb 27 mm

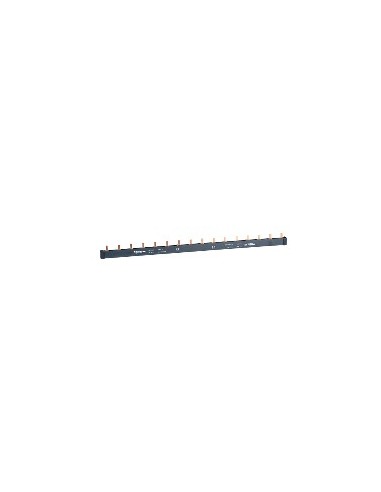

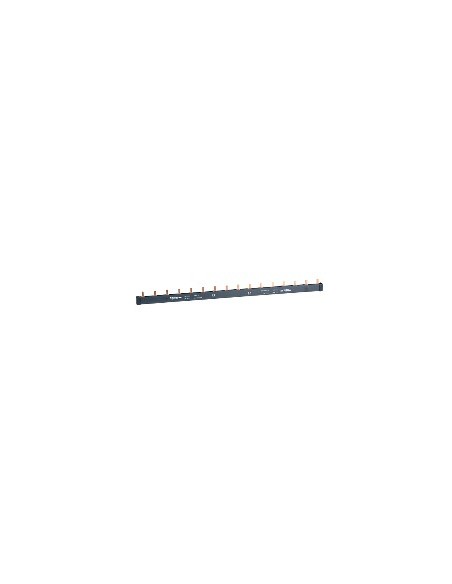

Bipolar 16 pole connecting comb with 27 mm passage, designed for horizontal assembly in tunnel-type terminals. Compatible with the Acti9 range, specifically the Acti9 NG125LMA and Acti9 C120NA-DC models. Its configuration allows for 8 N-way and 1 L-way, with a tooth connection and a 54 mm track spacing. Presented in cut-off format, with clear marking of N and L, and insulated to ensure electrical safety.

Technical characteristics

• Total number of 18 mm modules: 24
• Number of addresses: 8 tracks N + 1 L
• Connection step: 27 mm
• Connector type: Tooth
• Distance between tracks: 54 mm
• Marked: N L
• Insulation: Isolated
• Mounting location: Upper at tunnel-type terminals
• 9 mm steps: 48
• Width: 430 mm
• Colour: Grey anthracite (RAL 7016)
• [Ye] Nominal current of employment: 125 A at 40 °C
• [Ue] Nominal employment voltage: 500 V AC
• [Ui] Nominal insulation voltage: 620 V AC
• Standards: IK07
• Fire resistance: 960 °C (30 s) according to IEC 60695-2-1
• Degree of contamination: 3
• Range compatibility: Acti9 NG125LMA, Acti9 C120NA-DC
• Sustainable supply status: Product Green Premium
• According to REACh without SVCC: Yes
• EU RoHS Directive: As per
• Without toxic heavy metals: Yes
• No mercury: Yes
• RoHS China Regulations: Proactive statement (out of legal scope)
• Information on RoHS exemptions: Yes
• WEEE: It should be discarded by specific systems in the EU
