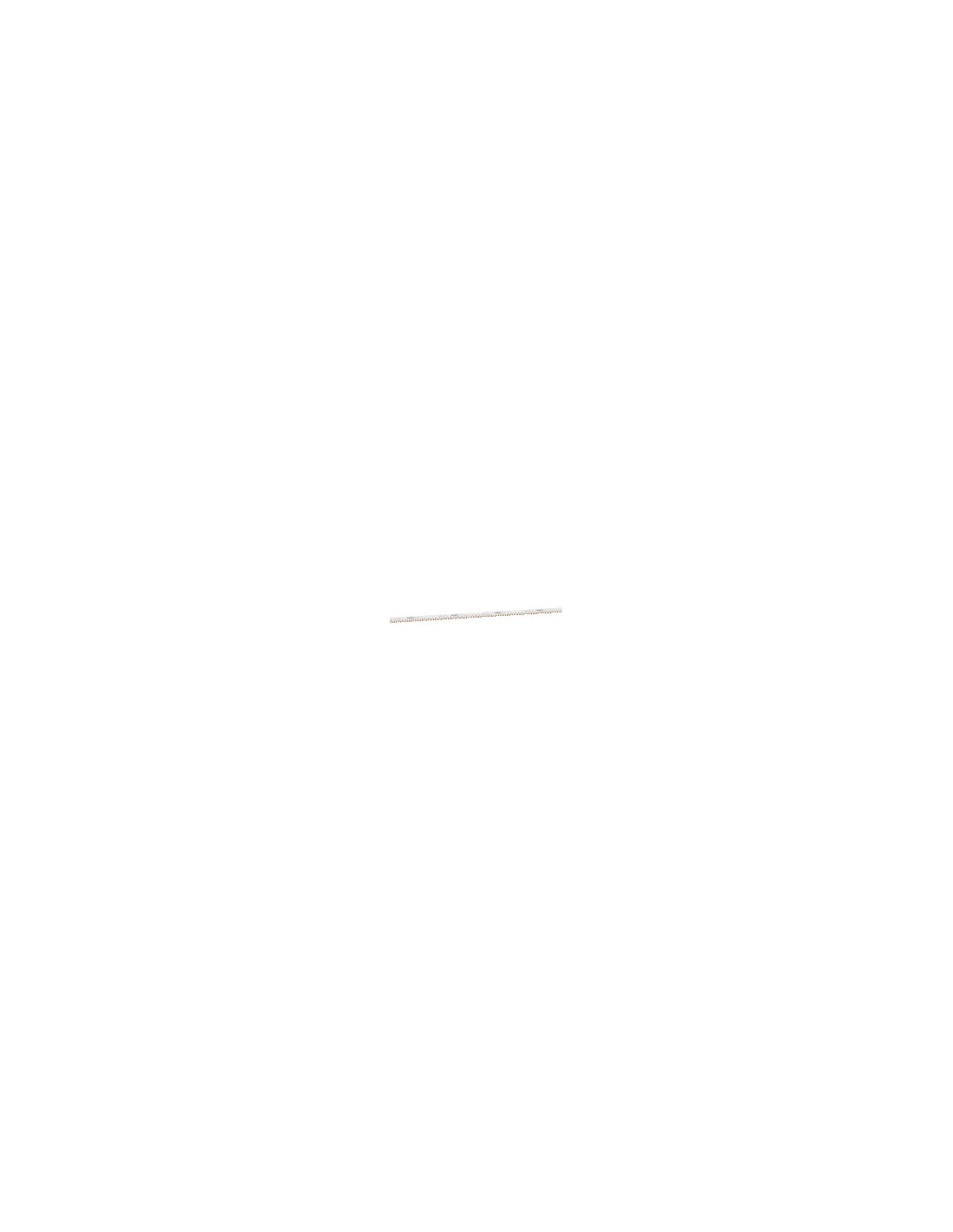

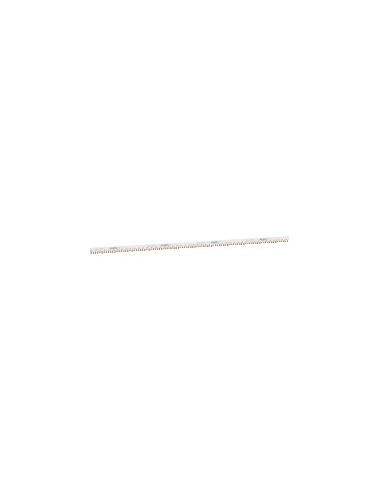

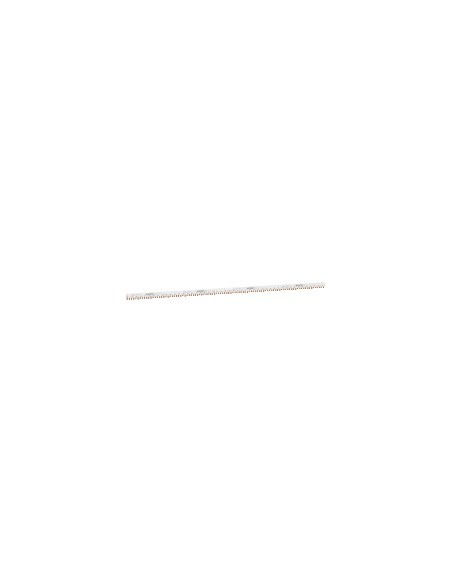

Acti9 1PN 48-module 18 mm connection comb

Horizontal connection comb for electrical installations of the Acti9 range, designed to connect multiple circuits in a single point using 48 18 mm modules in 1L + N configuration. It is mounted above tunnel-type terminals and is designed for use in distribution bars in industrial and commercial environments.

Technical characteristics

• Total number of 18 mm modules: 48
• Number of addresses: 48 senses N + 1 L
• Pole configuration: 1 1P + N
• Connection step: 9 mm between phase and neutral
• Connector type: Tooth
• Distance between tracks: 18 mm
• Marked: N L
• Insulation: Isolated
• Presentation of the device: Trimmed
• Nominal current of employment [Ye]: 80 A at 40 °C
• Nominal employment voltage [Ue]: 230 V AC Phase/N
• Nominal insulation voltage [Ui]: 400 V AC according to IEC 61439-1
• Voltage peak resistance [Uimp]: 4 kV
• Type of assembly: Horizontal
• Mounting location: Upper at tunnel-type terminals
• 9 mm steps: 96
• Height: 29 mm
• Width: 862 mm
• Depth: 16 mm
• Product weight: 150 g
• Colour: White (RAL 9003)
• Range compatibility: Acti9 DT40 Vigi, Acti9 DT60, Acti9 iTL Vigi, TG40, Multi 9 N40 Vigi, Multi 9 NC100, Acti9 iDT40, Acti9 iDD40, Acti9 iDD40 TG Vigi, iTG40, Acti9 iIG40, Acti9 iDT40K, Acti9 iDD40K, Acti9 iIG40K
• Standards: EN/IEC 60439-1
• Fire resistance: 960 °C (30 s) according to IEC 60695-2-1
• Degree of contamination: 3 according to EN/IEC 60439-1
• Degree of IP protection: IP20 with end parts and tooth covers
• Sustainable supply status: Product Green Premium
• REACh Regulation: Reference does not contain SVHC
• According to REACh without SVCC: Yes
• EU RoHS Directive: As per
• Without toxic heavy metals: Yes
• No mercury: Yes
• Information on RoHS exemptions: Yes
• RoHS China Regulations: Proactive statement by RoHS China (out of the legal reach of RoHS China)
• WEEE: On the European Union market, the product must be disposed of in accordance with a specific waste collection system and never end up in a waste container
