Mando elec. T400/630 24-30V CC NSX400/63

Mando elec. T400/630 24-30V CC NSX400/63

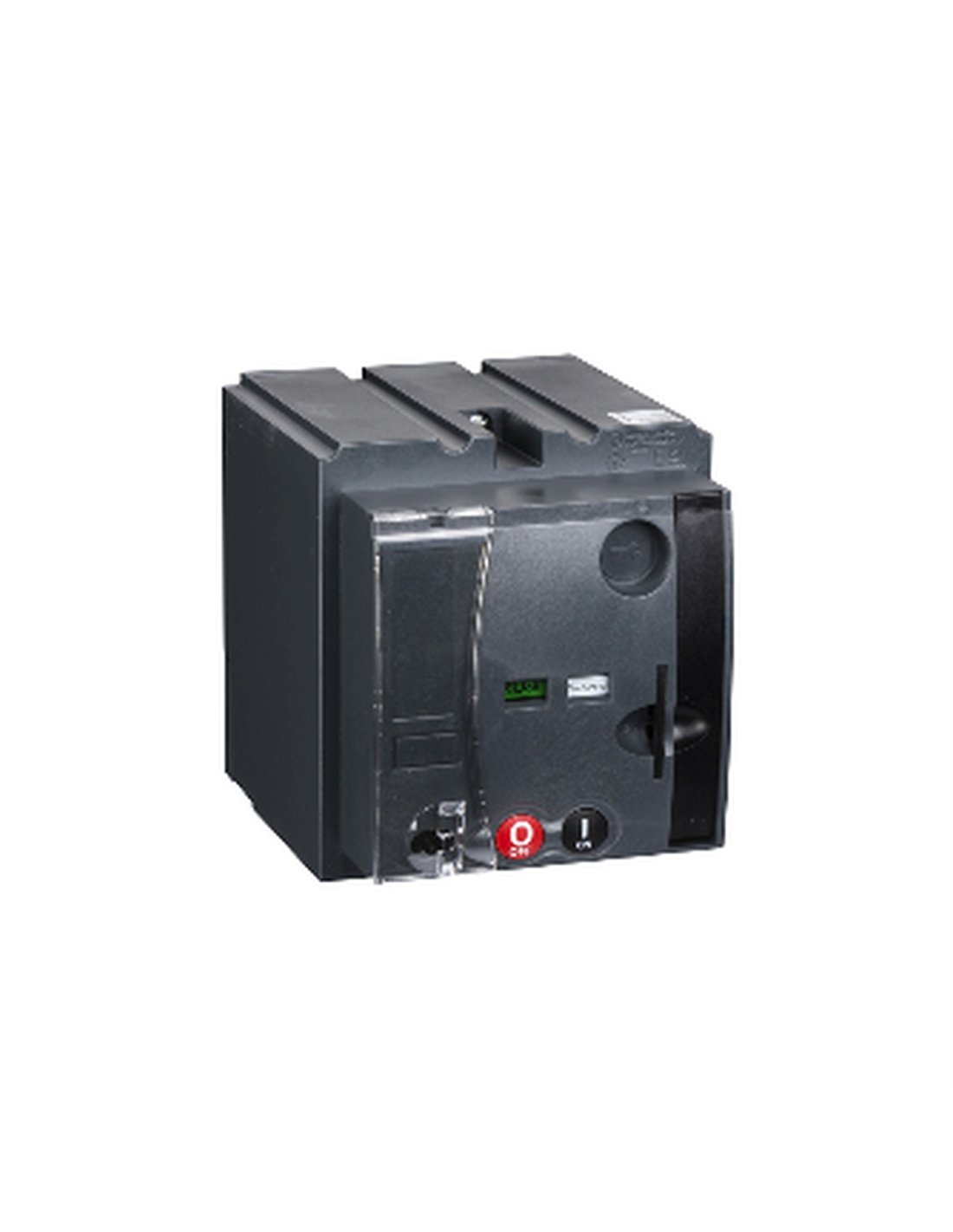

COMPACT 400A 24-30V DC electric controller, 700ms fast response and fixed mounting

Reference IMPO LV432643

Available

€1,012.31

VAT included

The T400/630 electric controller is a robust and versatile control device designed for automatic charging applications in the new generation ComPacT NSX400 and NSX630 electrical systems. It operates with voltages from 24 to 30 V DC, ensuring a fast and efficient response in various control configurations.

In stock 10 Items

Email address

Description

The T400/630 Electric Control is a control device designed for applications in new generation ComPacT NSX400 to NSX630 electrical systems. This controller is characterized by its robustness and versatility, allowing for efficient integration into various control configurations.

Product range: ComPacT NSX400 ... 630 new generation
Product type: Electric controller
Application: Automatic spring charging
Compatibility: NSX500, NSXm, NSX400, NSX630, Micrologic 7, PowerPact Multistandard, EasyPact CVS630, EasyPact D3N
Control circuit voltage: 24...30 V DC
Mounting type: Fixed
Rated current: 400 A and 630 A
Control signal type: Pulse and maintained
Response time: <700 ms in open area lighting, <80 ms in loop mode closed
Maximum operating frequency: 4 per minute
Maximum power consumption: 500 VA for closing and opening
Locking options: Padlock in OFF position, 1 to 3 padlocks from Ø 5 to Ø 8

Product Details

EAN	3606480020193
Reference	IMPO LV432643

In stock 10 Items

Reviews (0)

No reviews

GPSR

Fabricante	Schneider Electric España, S.A.
Dirección postal	Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona
Contacto electrónico	[email protected]
Teléfono	+34 930289900
Referencia	IMPO LV432643
EAN	3606480020193
