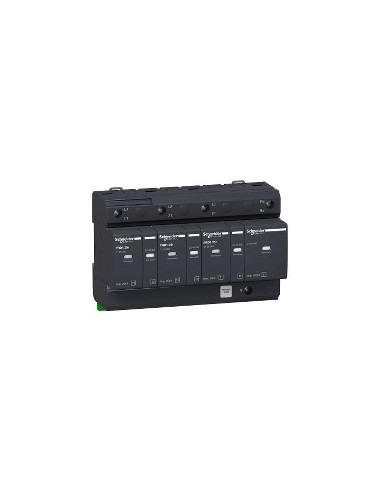

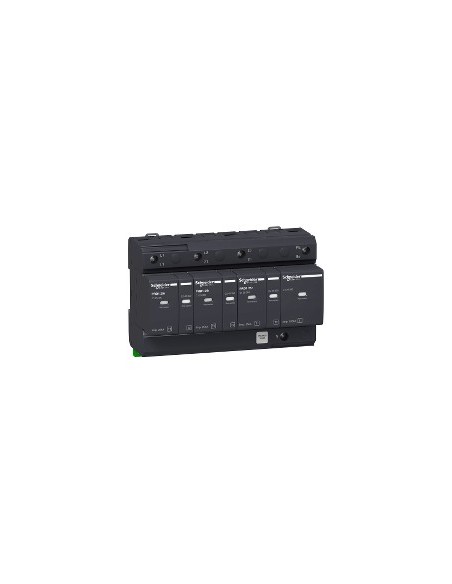

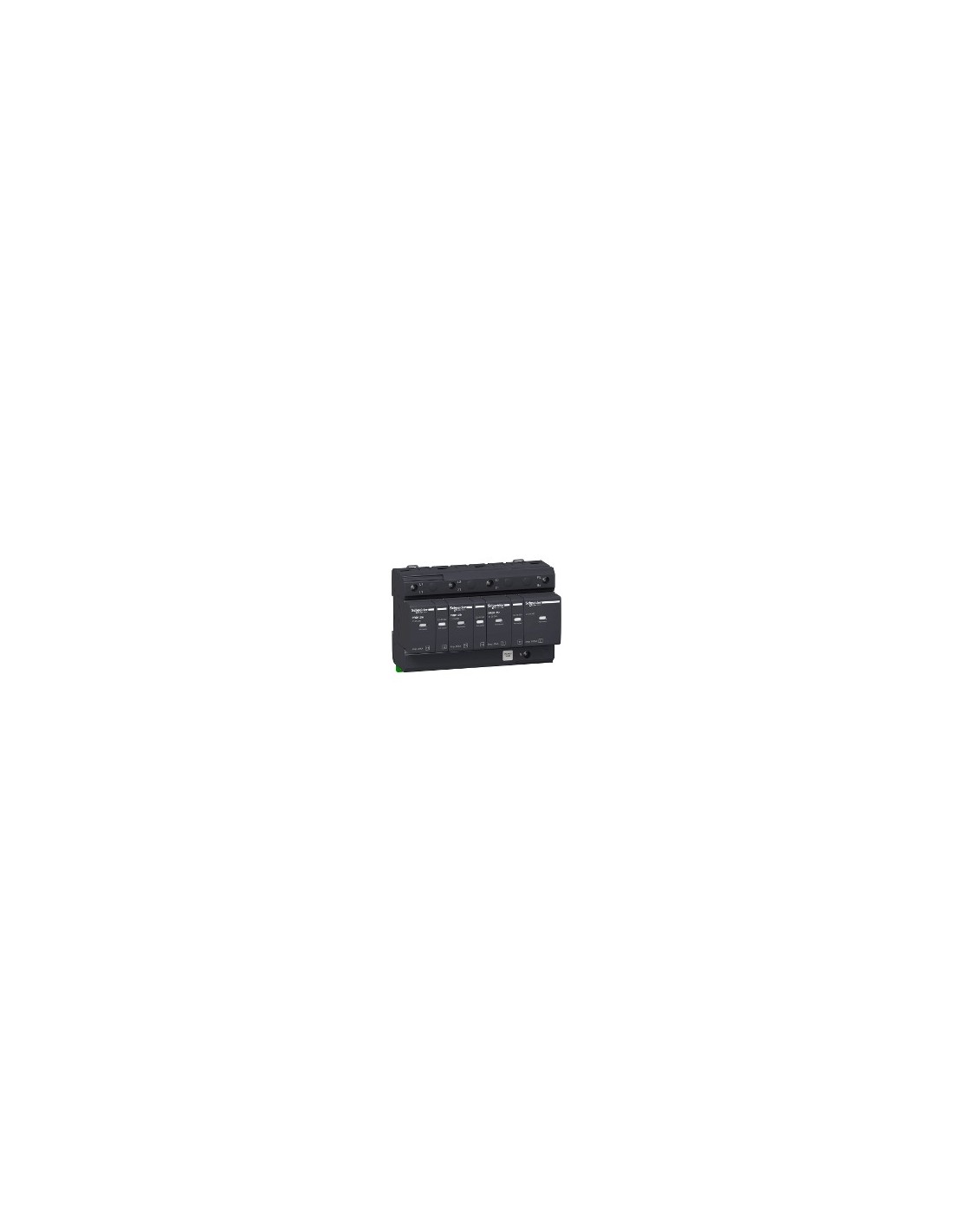

Surge Protector 3P+N Type 1+2
Surge Protector 3P+N Type 1+2

Surge Protector 3P+N Type 1+2

Available In stock 10 Items Reference IMPO 16332
€1,238.14
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP40
  • Colour Gris antracita

Surge protector type 1+2 with MOV technology for electrical installations of 230/400 V AC, 50/60 Hz, with common mode protection (100 kA) and differential mode protection (25 kA), protection level <1.5 kV, response time ≤25 ns, DIN rail mounting, 3P+N, compatible with gG fuse 315 A or Compact NSX100B circuit breaker, suitable for small businesses.

Description

Surge protector type 1+2 with MOV technology and plug-in cartridge, designed to protect electrical installations in small businesses. Compatible with TN-S and TT earthing systems, provides common mode and differential mode protection through inter-electrode distance. Application recommended for currents above 0.1 A.

Technical Features

  • Number of poles: 3P + N
  • Rated operating voltage: 230/400 V AC (±10%) at 50/60 Hz
  • Rated discharge current: Common mode 100 kA (N/PE), differential mode 25 kA (L/N)
  • Impulse current: Common mode 100 kA (N/PE) 50 A·s, differential mode 25 kA (L/N) 12.5 A·s
  • Maximum continuous operating voltage: 350 V (L/N and N/PE)
  • Protection level: <1.5 kV (type 2, L/N)
  • Current monitoring: 25 kA (differential mode L/N), 0.1 kA (common mode N/PE)
  • Remote signaling: 1 SD (1 C/O)
  • Response time: ≤ 25 ns
  • Connections: Tunnel terminals (2.5…35 mm²), tightening torque 4.5 N·m
  • Surge current: 25 kA
  • Protection degree IP: IP40 (front face, state 1), IP20 (installed, state 1)
  • Impact protection degree IK: IK05 (in accordance with insulation accessory)
  • Operating ambient temperature: -25…60 °C
  • Storage ambient temperature: -40…80 °C
  • Maximum operating altitude: 2000 m
  • Relative humidity: 5…90 %
  • Material: PBT (polybutylene terephthalate)
  • Color: Anthracite grey (RAL 7016)
  • Weight: 1.43 kg
  • Height: 90 mm
  • Width: 142.8 mm
  • Depth: 70 mm
  • Mounting support: DIN rail
  • Mounting type: Adjustable clip
  • Step size: 9 mm, 16 steps
  • Standards: EN 61643-11:2012, IEC 61643-11:2011
  • Certifications: CE, KEMA-KEUR

Product Details

Dimensiones

Measures 90 mm x 142,8 mm x 70 mm
High 90 mm
Width 142,8 mm
Long 90 mm
Depth 70 mm
Weight (kg) 1,43 kg

Eléctrico

Nominal voltage (V) 230/400 V AC
Rated current (A) 400

Protección

Protection IP40

Otras

Frequency 50/60 Hz
EAN 3606480060427
Manufacturer SCHNEIDER
Intensity 25
# Elements 1
No. of poles 3P+N
Reference IMPO 16332
Cable cross-section (mm²) 35 mm²
Colour Gris antracita
