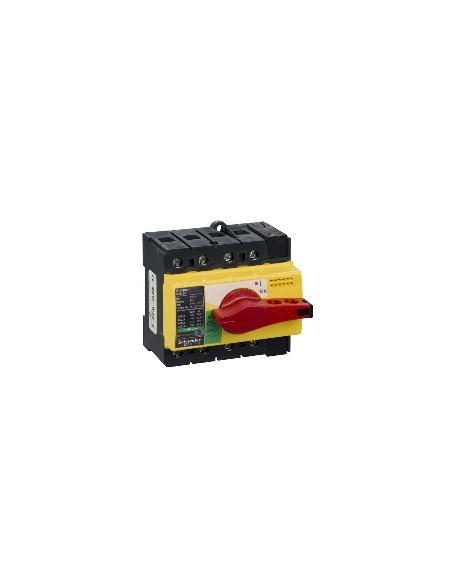

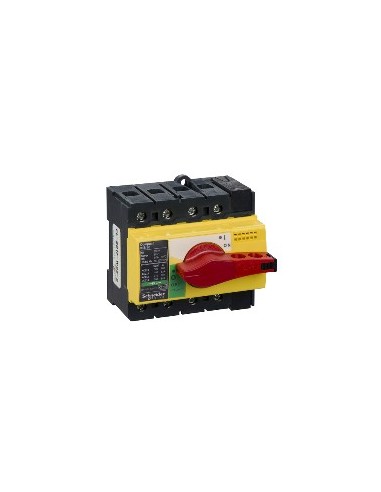

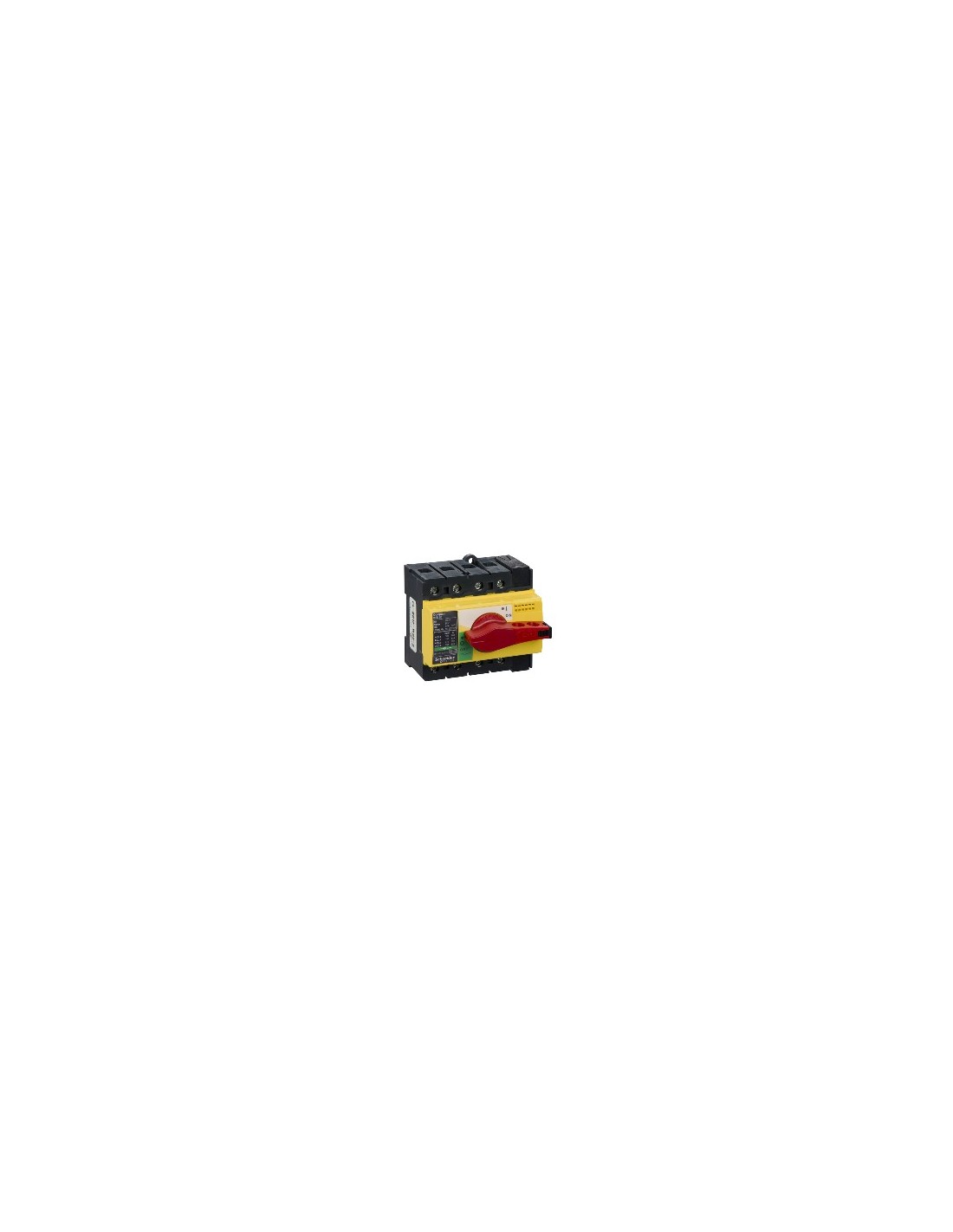

4P red isolating switch 80 A

4P red isolating switch from the ComPact range, designed for safe control and disconnection of electrical circuits in industrial installations. Its fixed structure and DIN rail mounting provide a compact and stable solution for power distribution. Features a rotary handle, position indicator, and red handle for clear visual identification of operating status.

Technical specifications

• Number of poles: 4P
• Network type: AC current
• Supply frequency: 50/60 Hz
• Rated operating current: AC-23A, state 1 40 A AC 50/60 Hz 500 V; AC-23A, state 1 63 A AC 50/60 Hz 440/480 V; AC-22A, state 1 80 A AC 50/60 Hz 220/240 V; AC-22A, state 1 80 A AC 50/60 Hz 380/415 V; AC-22A, state 1 80 A AC 50/60 Hz 440/480 V; AC-23A, state 1 72 A AC 50/60 Hz 380/415 V; AC-23A, state 1 80 A AC 50/60 Hz 220/240 V; DC-22A, state 1 80 A DC 125 V 2 poles in series; DC-23A, state 1 80 A DC 125 V 2 poles in series; DC-22A, state 1 80 A DC 250 V 4 poles in series; DC-23A, state 1 80 A DC 250 V 4 poles in series
• Rated insulation voltage: 690 V AC 50/60 Hz
• Surge voltage withstand: 8 kV
• Conventional thermal current: 80 A at 60 °C
• Rated short-circuit breaking capacity: 15 kA for isolating switch only 500 V AC 50/60 Hz; 75 kA with upstream circuit breaker 500 V AC 50/60 Hz
• Rated operating voltage: 500 V AC 50/60 Hz; 250 V DC
• Breaking capacity: Yes
• Position indicator: Yes
• Visible breaking: No
• Contamination degree: 3
• Control type: Rotary handle
• Handle color: Red
• Mounting type: Fixed
• Mounting support: DIN rail plate
• Top connection: Frontal
• Bottom connection: Front part
• Cable cross-section: 1.5…50 mm²
• Maximum power: AC-23, state 1 22 kW at 500/525 V AC 50/60 Hz; AC-23, state 1 22 kW at 220/240 V AC 50/60 Hz; AC-23, state 1 37 kW at 380/415 V AC 50/60 Hz; AC-23, state 1 37 kW at 440 V AC 50/60 Hz
• Rated service: Continuous
• Intermittent service class: Class 120 - 60 %
• Cabinet dimensions: 190 mm x 115 mm x 55 mm
• Permissible short-time current: 0.067 kA electrical durability 20 s; 1.73 kA electrical durability 3 s; 3 kA electrical durability 1 s; 5.5 kA electrical durability 30 s
• Mechanical durability: 20000 cycles
• Electrical durability: AC-22A, state 1 1500 cycles; AC-23A, state 1 1500 cycles; DC-22A, state 1 1500 cycles; DC-23A, state 1 1500 cycles
• Connection pitch: 18 mm
• Height: 85 mm
• Width: 90 mm
• Depth: 62.5 mm
• Product weight: 0.6 kg
• Compatibility code: INS80
• Standards: EN > 40 A Instantaneous and demand values
• Product certifications: CCC KEMA-KEUR
• Protection degree IP: IP40 according to Activate/Deactivate Ig
• Protection degree IK: IK07 according to H
• Operating ambient temperature: -25…70 °C
• Storage ambient temperature: -50…85 °C
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS directive: Compliant
• Free of toxic heavy metals: Yes
• Mercury-free: Yes
• RoHS exemption information: Yes
• China RoHS regulation: X
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and must never end up in a regular trash container.
