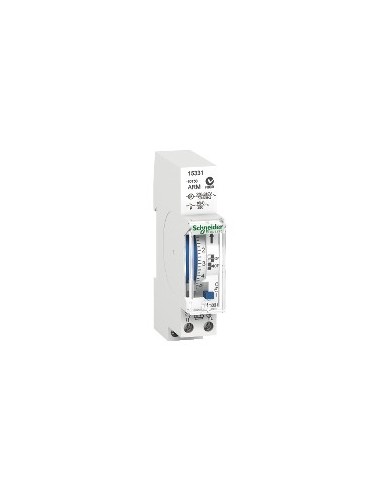

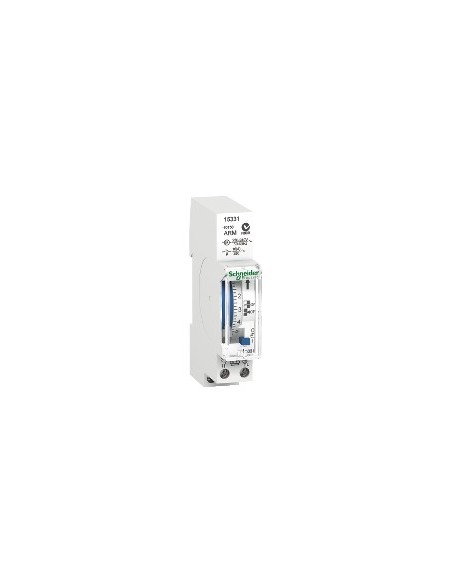

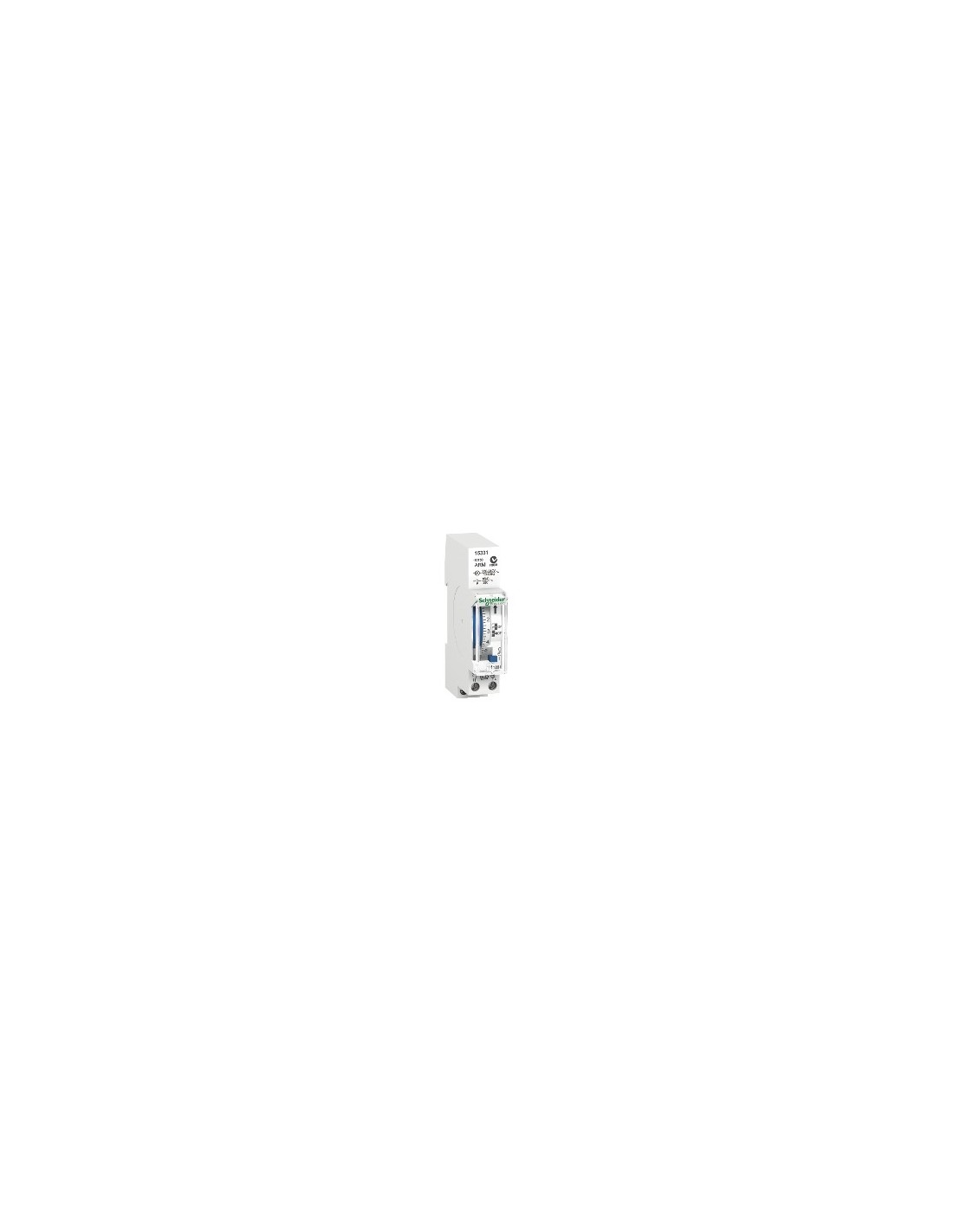

Mechanical timer switch 1 channel 16 A

Mechanical timed switch of the Acti 9 range, designed for applications in buildings.

Technical characteristics

• Number of channels: 1
• Function available: Manual time switching
• Application of the device: Buildings
• Load type: Parallel fluorescent tube with correction 5 x 58 W, 7 x 40 W, 2 x 100 W; Halogen lamp 230 V AC 1000 W; Incandescent lamp 230 V AC 1000 W; Fluocompact lamp 700 VA; Compact fluorescent lamp 150 W; LED lamp; LED lamp > 2 W 300 W
• Cycle duration: 7 days
• Maximum number of switches: 42 activated - 42 disabled
• Minimum interval duration: 2 h
• Adjustment type: Manual hour change
• Measurement accuracy: +/- 1 s/day at 20 °C
• Power consumption: 0.5 W
• Maximum switching intensity: 16 A - 250 V AC pf = 1; 4 A - 250 V AC pf = 0.6
• Nominal employment voltage: 230...240 V AC in 50...60 Hz
• Battery life: 10 years
• Backup time: 150 h and savings program
• Mounting bracket: Rail DIN
• 9 mm steps: 2
• Colour tone: White (RAL 9003)
• Connections: Screw terminals
• Width: 18 mm
• Height: 90 mm
• Depth: 66 mm
• Weight: 0.101 kg
• Operating ambient temperature: -10...50 °C
• Degree of IP protection: IP20 B (terminals, status 1)
• EU RoHS Directive: As per
• REACh Regulation: Contains SVHC over the threshold
• No mercury: Yes
• Information on RoHS exemptions: Yes
• RoHS China Regulations: Product outside of RoHS China
• Sustainable supply status: Product Green Premium
