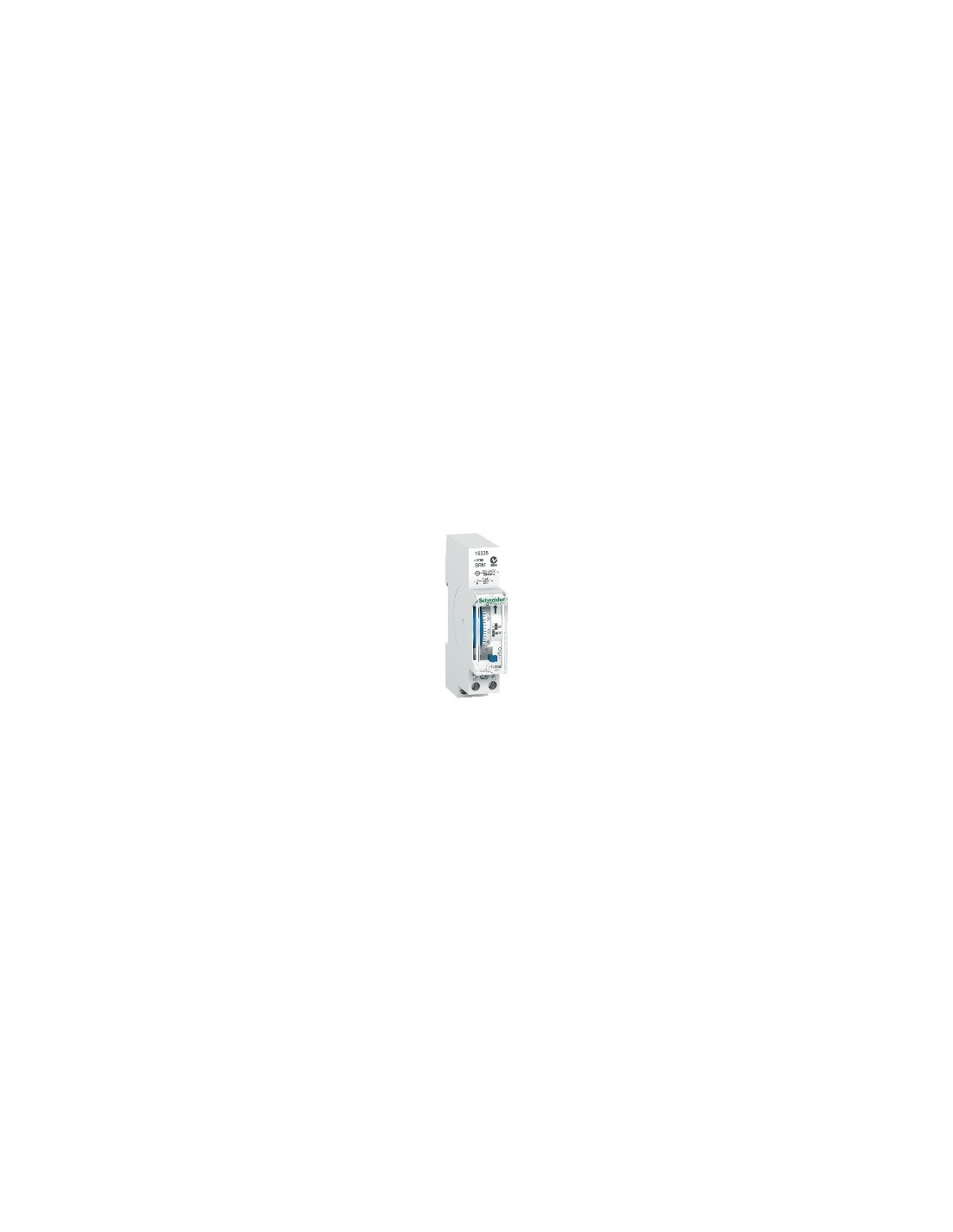

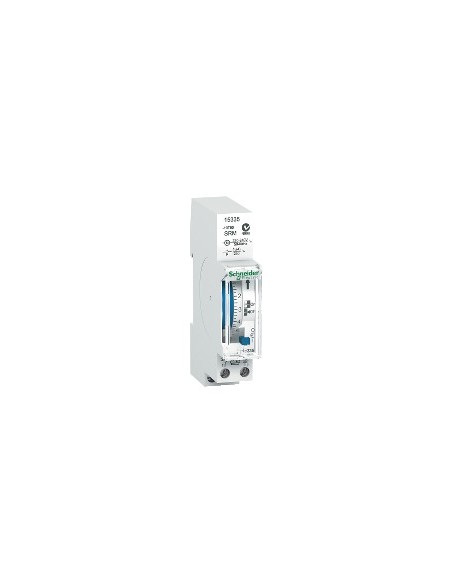

Daily analog time switch 1 channel 16 A 50 Hz
Daily analog time switch 1 channel 16 A 50 Hz

Daily analog time switch 1 channel 16 A 50 Hz

Available In stock 10 Items Reference IMPO 15335
€55.22
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Power (W) 0,5 W
  • Protection IP20

1 channel, 16 A analog daily time switch, with manual time adjustment and accuracy of ±1 s/day at 20 °C. Designed for building applications, it supports loads up to 16 A in 230 V AC, with a 24 h cycle and a minimum interval of 15 min.

Description

Analogue daily time switch of the Acti9 range, designed for manual switching of charge in electrical installations of buildings. Ideal for controlling lighting or equipment with fixed hours, with a 24-hour cycle and manual hour adjustment. Its compact design and DIN rail mounting makes it suitable for electrical cabinet installations.

Technical characteristics

  • Number of channels: 1
  • Cycle duration: 24 h
  • Maximum number of switches: 48 activated - 48 disabled
  • Minimum interval duration: 15 min
  • Adjustment type: Manual hour change
  • Measurement accuracy: +/- 1 s/day at 20 °C
  • Power consumption: 0.5 W
  • Maximum switching intensity: 16 A - 250 V AC pf = 1/4 A - 250 V AC pf = 0.6
  • Nominal employment voltage: 230 V AC at 50 Hz
  • Mounting bracket: Rail DIN
  • 9 mm steps: 2
  • Colour tone: White - cable type: RAL 9003
  • Connections: Screw terminals
  • Dimensions: 18 mm (width) x 90 mm (height) x 66 mm (depth)
  • Weight: 0.097 kg
  • Operating ambient temperature: -25...50 °C
  • Degree of IP protection: Terminals, status 1 IP20 B
  • Market segment: Residential, small shops
  • EU RoHS Directive: As per
  • No mercury: Yes
  • Sustainable supply status: Product Green Premium

It is used in lighting installations in buildings, especially for fluorescent, halogen, incandescent, fluorcompact and LED lamps, with loads up to 300 W. Its manual operation allows to adjust on and off according to daily needs.

Product Details

Dimensiones

Measures 18 mm (ancho) x 90 mm (altura) x 66 mm (profundidad)
Long 90 mm
Depth 66 mm
Weight (kg) 0,097 kg

Eléctrico

Nominal voltage (V) 230 V
Current type AC
Rated current (A) 16

Iluminación

Power (W) 0,5 W

Protección

Protection IP20

Ventilación

Engine AC

Otras

Frequency 50 Hz
EAN 3303430153351
Manufacturer SCHNEIDER
Halogen-free Yes
# Elements 1
Maximum power (W) 300 W
Reference IMPO 15335

Información legal

Fabricante SCHNEIDER
Dirección Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email [email protected]
Teléfono +34 930289900
Referencia IMPO 15335
EAN 3303430153351
10 Items
