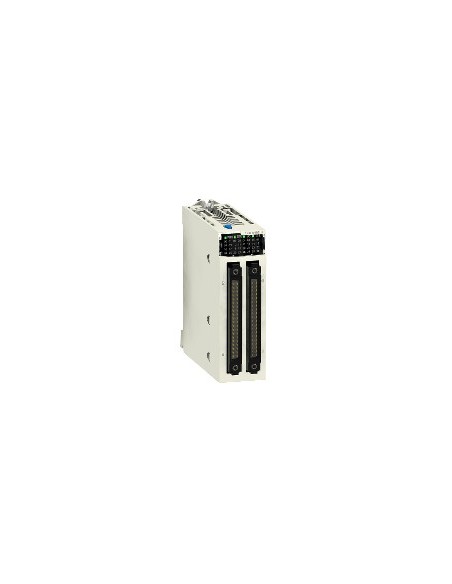

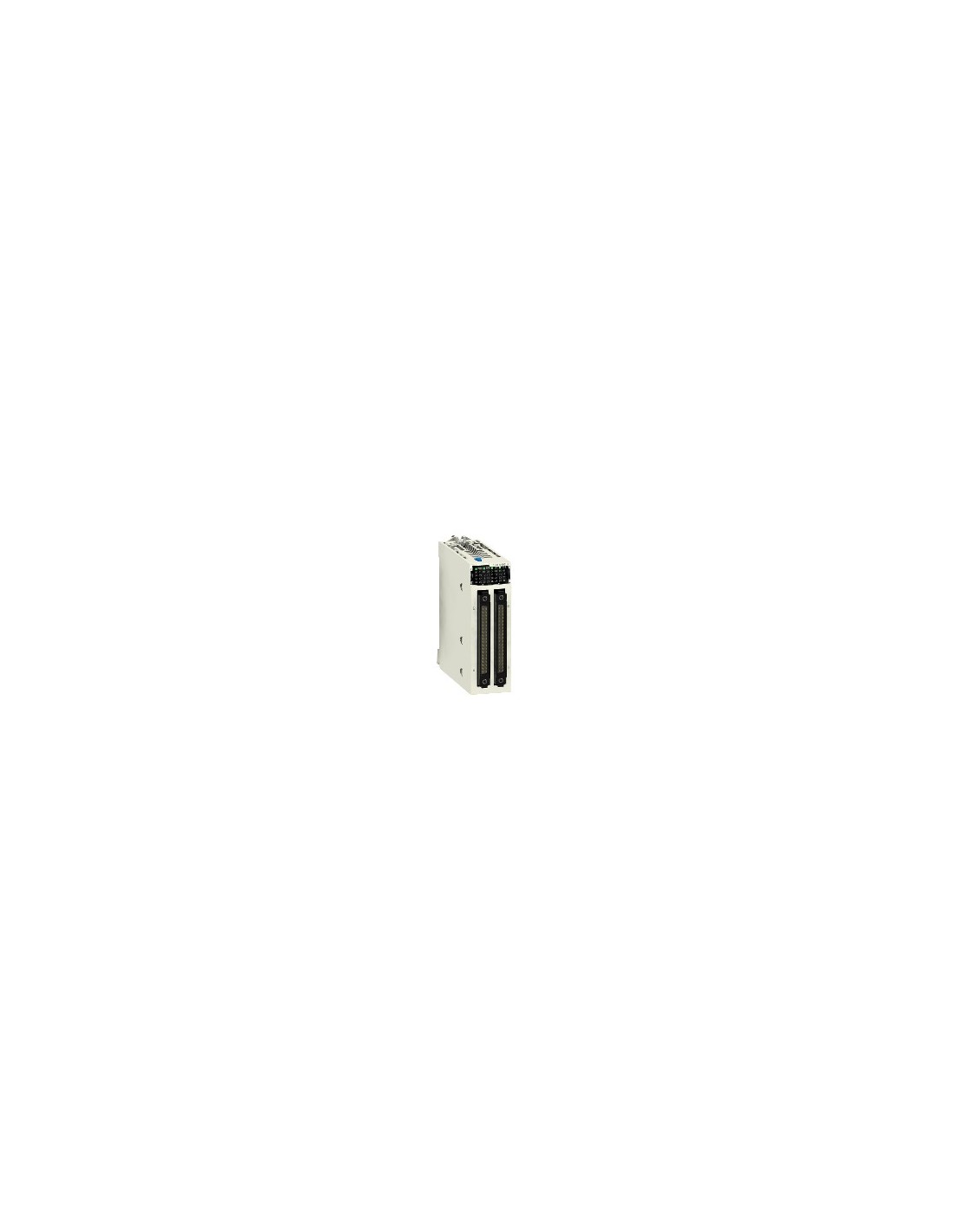

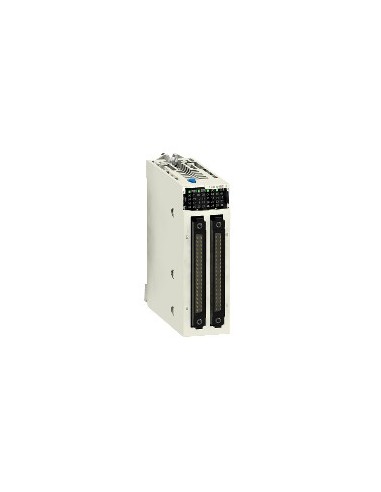

64-channel discrete input module 24 V DC

64-channel discrete inlet module designed for Modicon X80 systems. It allows the connection of digital signals in industrial environments, offering electrical insulation to reduce electromagnetic interference. It works with a positive input voltage of 24 V DC and has an input impedance of 40 k★.

Technical characteristics

• Number of digital entries: 64
• Discreet input: Isolated
• Type of entry: Current collector (positive logic)
• Input voltage: 24 V DC positive
• Discreet input current: 0.6 mA
• Tensions range: 19...30 V
• Entry Impedance: 40000 Ohm
• Insulation resistance: > 10 MOhm at 500 V DC
• Dissipated power: 4.3 W
• Typical filter time: 4 ms
• Maximum filter time: 7 ms
• Parallel entries: No
• Typical current consumption: 160 mA in 3.3 V DC
• MTBF: 342216 h
• Protection type: 1 external fuse per channel group, 0.5 A, fast cast, no reverse polarity protection
• Detection threshold voltage: > 18 V DC
• Status LED: RUN (green), channel diagnosis (green), module error (red), module I/O (red)
• Weight: 0.145 kg
• Degree of protection: IP20
• Dielectric force: 1500 V AC (50/60 Hz) for 1 minute between primary/secondary, 500 V DC for 1 minute between groups of channels
• Vibration resistance: 3 gn
• Shock resistance: 30 gn
• Storage ambient temperature: -40...85 °C
• Operating ambient temperature: 0...60 °C
• Relative humidity: 5...95 % at 55 °C without condensation
• Maximum operating altitude: 0...2000 m, 2000..5000 m with
• Directives: 2014/35/EU (low voltage), 2014/30/EU (EMC)
• Sustainable supply status: Product Green Premium
• According to REACh without SVCC: Yes
• EU RoHS Directive: Proactive (out-of-scope) compliance
• No mercury: Yes
• RoHS exemptions: Yes
• RoHS China Regulations: X
• WEEE: To be discarded according to specific EU collection system
