Altius Lift hingeless lift door cam system

The Altius Lift housing system for lifting doors has been designed to provide an advanced solution in kitchen and home furniture. Thanks to its hinge-free mechanism, this system allows a smooth and controlled movement, ideal for spaces where ergonomics and aesthetics are key.

Technical characteristics

• A hinge-free system with soft closure and toolless disassembly thanks to clipping.

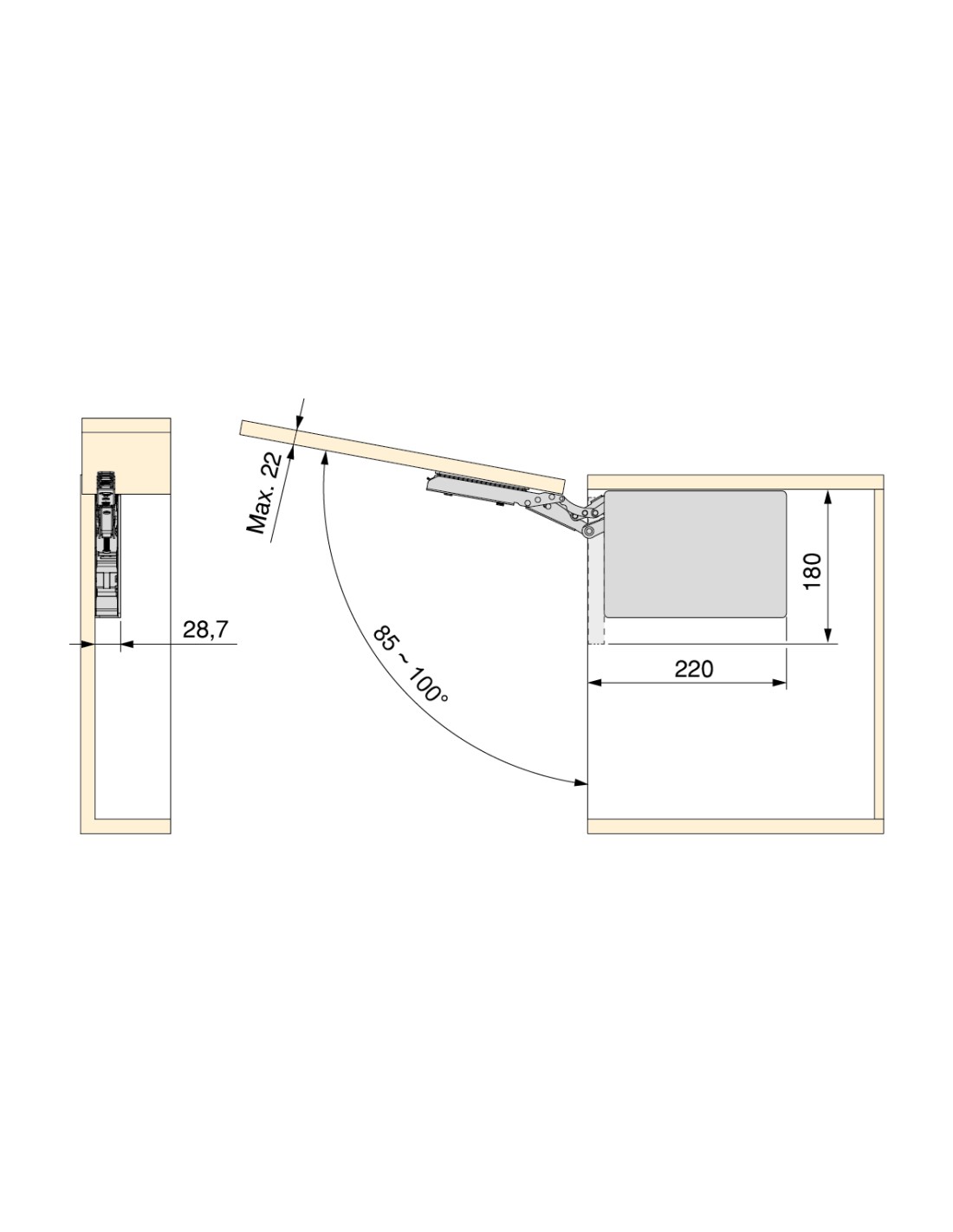

• Adjustable opening angle between 85° and 100° to take advantage of the interior space.
• Compatible with doors from 250 to 800 mm high and panels from 16 to 22 mm thick.

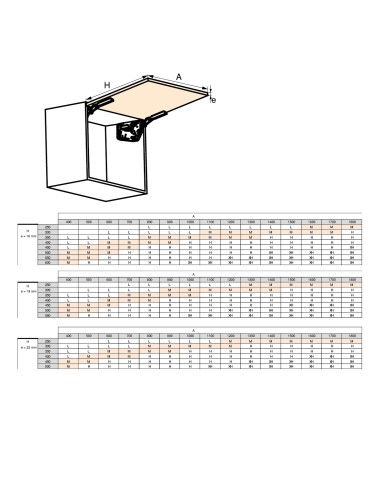

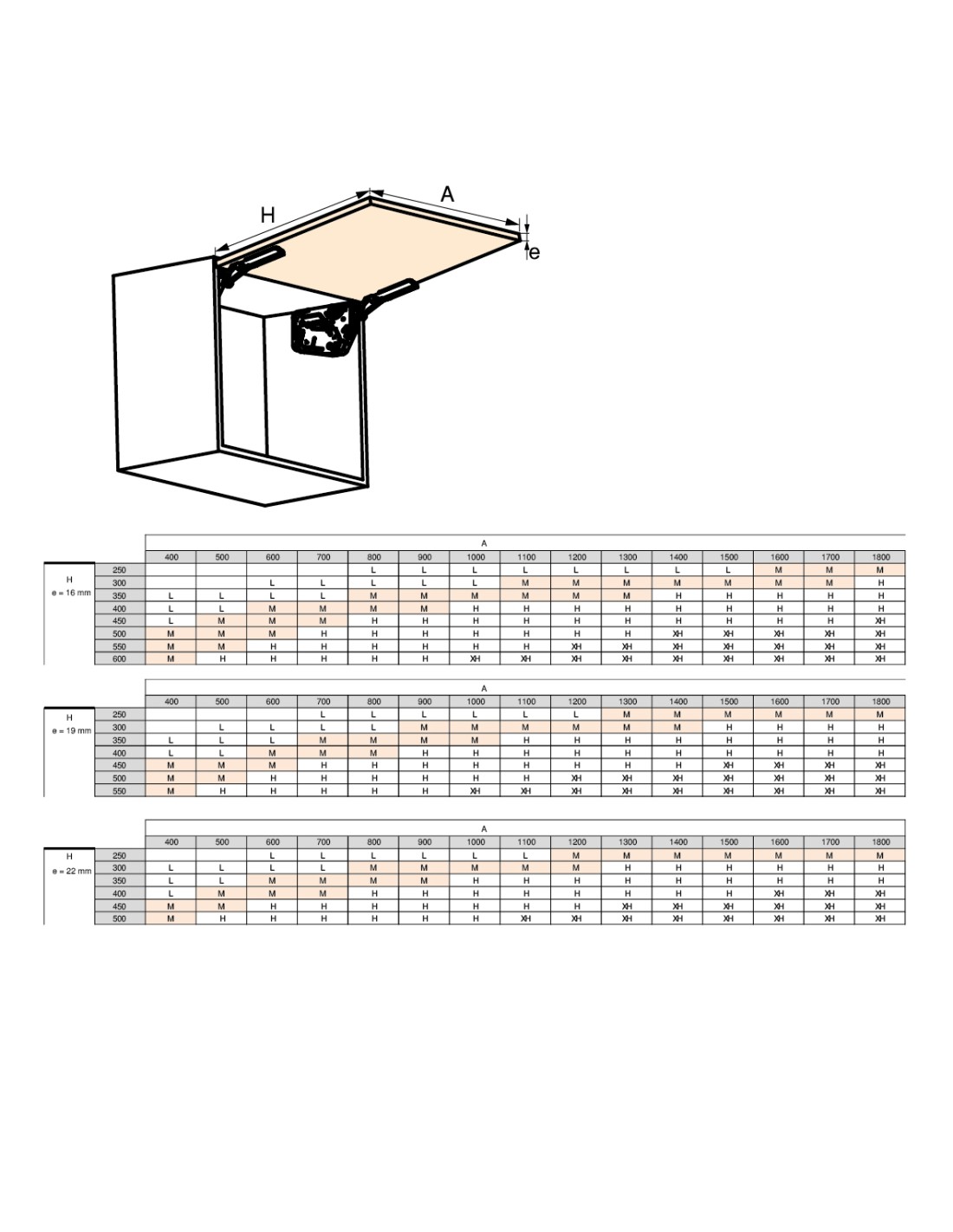

• Force required: 1100-2900 N (medium model).
• Includes three-dimensional adjustment of the door position ±2 mm.
• Available regulations: mechanism strength, soft closure, opening angle and position.
• Made of steel and plastic with white finish.

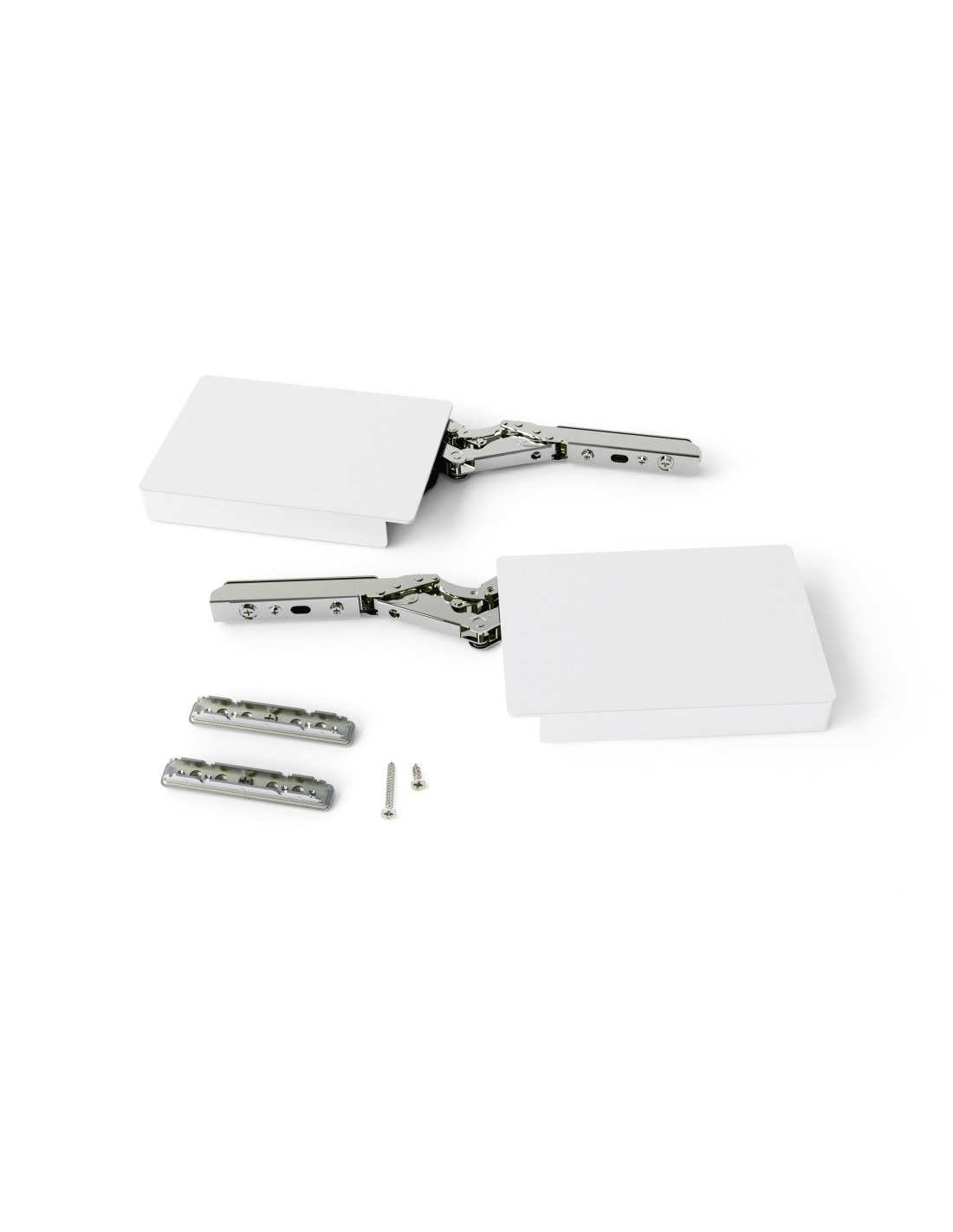

• It is supplied as a complete set with hooks, beautifying caps, screws, auxiliary supports and tools.

The product allows the quick dismantling of the toolless door, which facilitates both the initial installation and future interventions or repairs in the module.
