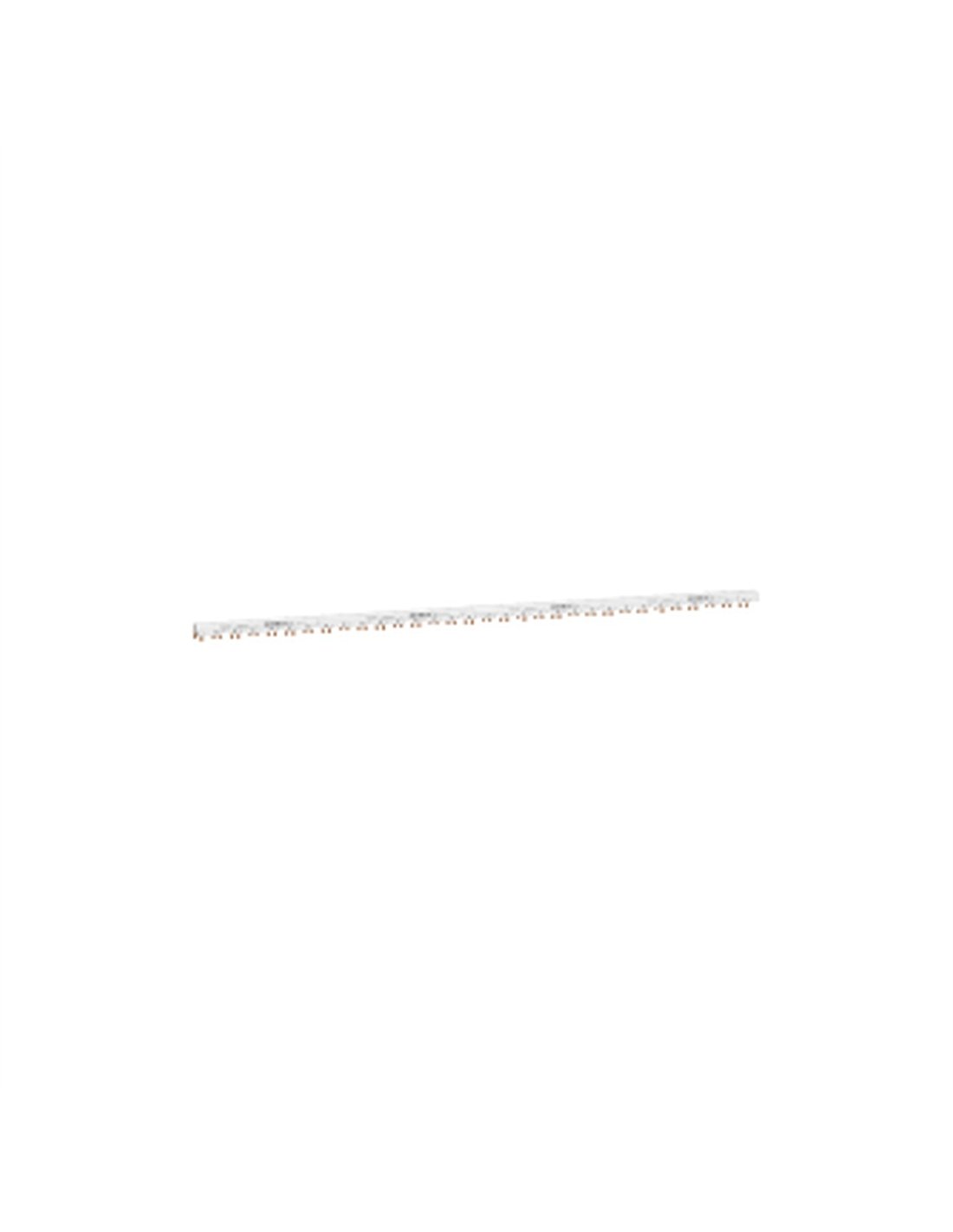

ACTI9 80 A connection comb, 48 modules, 862 mm, horizontal mounting, IP20

IMPO A9XPA748
Out of stock
€126.07
VAT included
The Acti9 busbar is a key component for electrical distribution, designed to facilitate connections between circuit breakers. Its robust construction and ease of installation ensure reliable performance in a variety of applications, guaranteeing a safe and efficient connection in horizontally mounted electrical systems.

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The Acti9 Connection Comb is an essential component for electrical distribution, designed to provide an efficient and safe connection between circuit breakers. This accessory from the Acti9 range is characterized by its robustness and ease of installation, making it a reliable choice for various electrical applications.

  • Product type: Connection comb
  • Pole configuration: 1 1P + N
  • Total number of modules: 48 (18 mm each)
  • Connection: 3L + N
  • Rated current: 80 A at 40 °C
  • Rated voltage: 230 V AC Phase/N
  • Insulation voltage: 400 V AC according to IEC 61439-1
  • Peak voltage withstand: 4 kV
  • Dimensions: 862 mm (width) x 29 mm (height) x 26 mm (depth)
  • Weight: 521 g
  • Protection rating: IP20 with end caps and tooth covers
  • Standards: Complies with EN/IEC 60439-1
  • Fire resistance: 960 °C (30 s) according to IEC 60695-2-1

Product Details

EAN
3606489443634
Reference
IMPO A9XPA748
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
