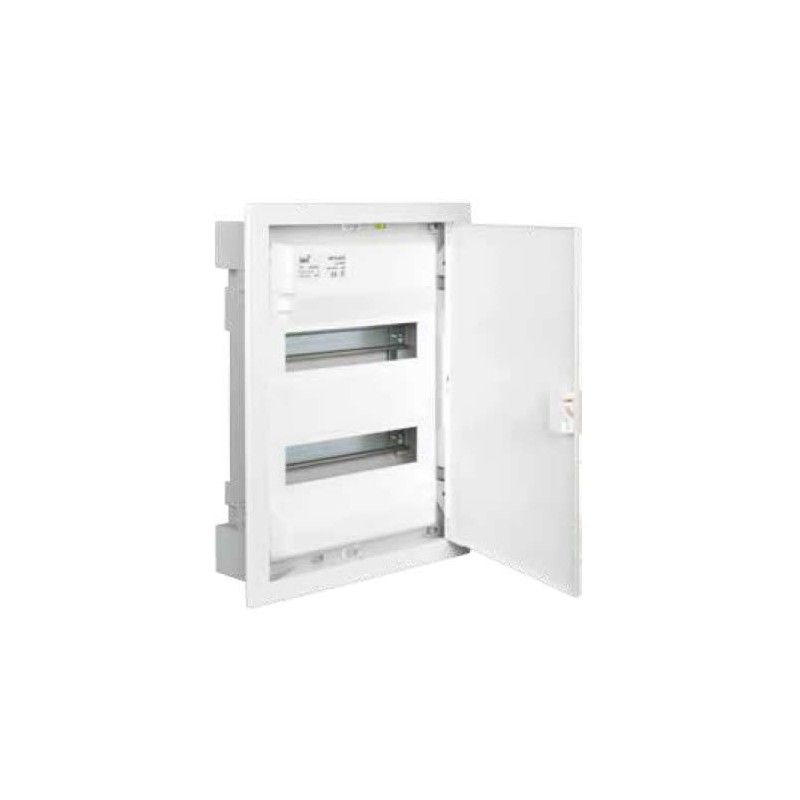

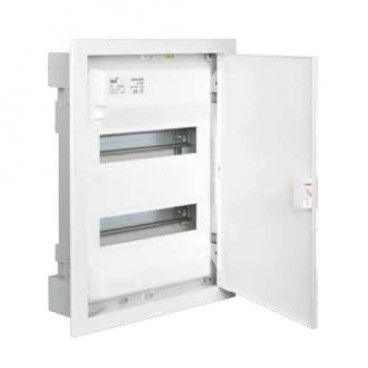

Cuadro eléctrico metálico de empotrar 28 módulos Metalbox Solera MP28
Cuadro eléctrico metálico de empotrar 28 módulos Metalbox Solera MP28
Cuadro eléctrico metálico de empotrar 28 módulos Metalbox Solera MP28
Cuadro eléctrico metálico de empotrar 28 módulos Metalbox Solera MP28

Recessed metal electrical panel 28 modules Metalbox Solera MP28

1 Reviews
Out of stock Reference SOLERA MP28
€87.76
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP40
  • Colour White

metal electrical cabinet for recessed elements 28

2 rows x 14 modules

White

Description

Cuadro eléctrico metálico de empotrar 28 módulos Metalbox Solera MP28

Información técnica:

Conforme a la Directiva 2014/35/UE.
Conforme a la Directiva 2011/65/UE (RoHS).
De acuerdo a normativa EN 62208, EN 61439 -1 y 3.
Conforme a REBT.
Grado de protección IP40 (Puerta cerrada).
Protección contra impactos IK07.
Hilo incandescente 650 ºC (para tabique hueco 850ºC).
Tensión nominal 230/400V.
Corriente 63A.
Material termoplástico con puerta y marco metálicos.
Caja color gris RAL 7035, marco y puerta color blanco RAL 9003.
Pintura RF60 (resistente al fuego 60 min.).

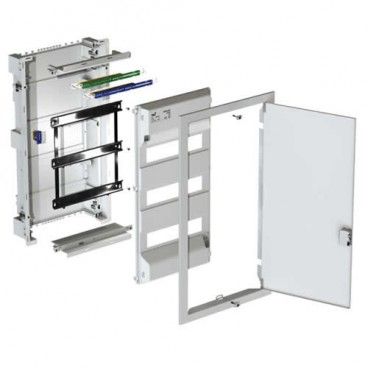

Características generales de los armarios metálicos Solera:

Bastidor extraible
135 mm de distancia entre filas
Marco extra fino 7mm
Bisagras de fácil desmontaje
Amplio espacio para mejorar las conexiones


Product Details

Dimensiones

High 432
Width 330
Depth 88

Instalación

Type of installation Flush-mounted

Protección

Protection IP40

Otras

EAN 8423220066878
Manufacturer Solera
Reference SOLERA MP28
Colour White

Información legal

Fabricante SOLERA
Dirección Carrer de Pere IV, 454, 08020 Barcelona, España, ES
Email [email protected]
Teléfono +34 933069490
Referencia SOLERA MP28
EAN 8423220066878
