4-pole residual current device with a rated current of 40 A and a nominal voltage of 400 V~. Detects Type A leakage currents of 30 mA to protect against electric shock and discharges. Mounts on a DIN rail, occupies 4 modules, and withstands short-circuit currents of 10 kA.
Description

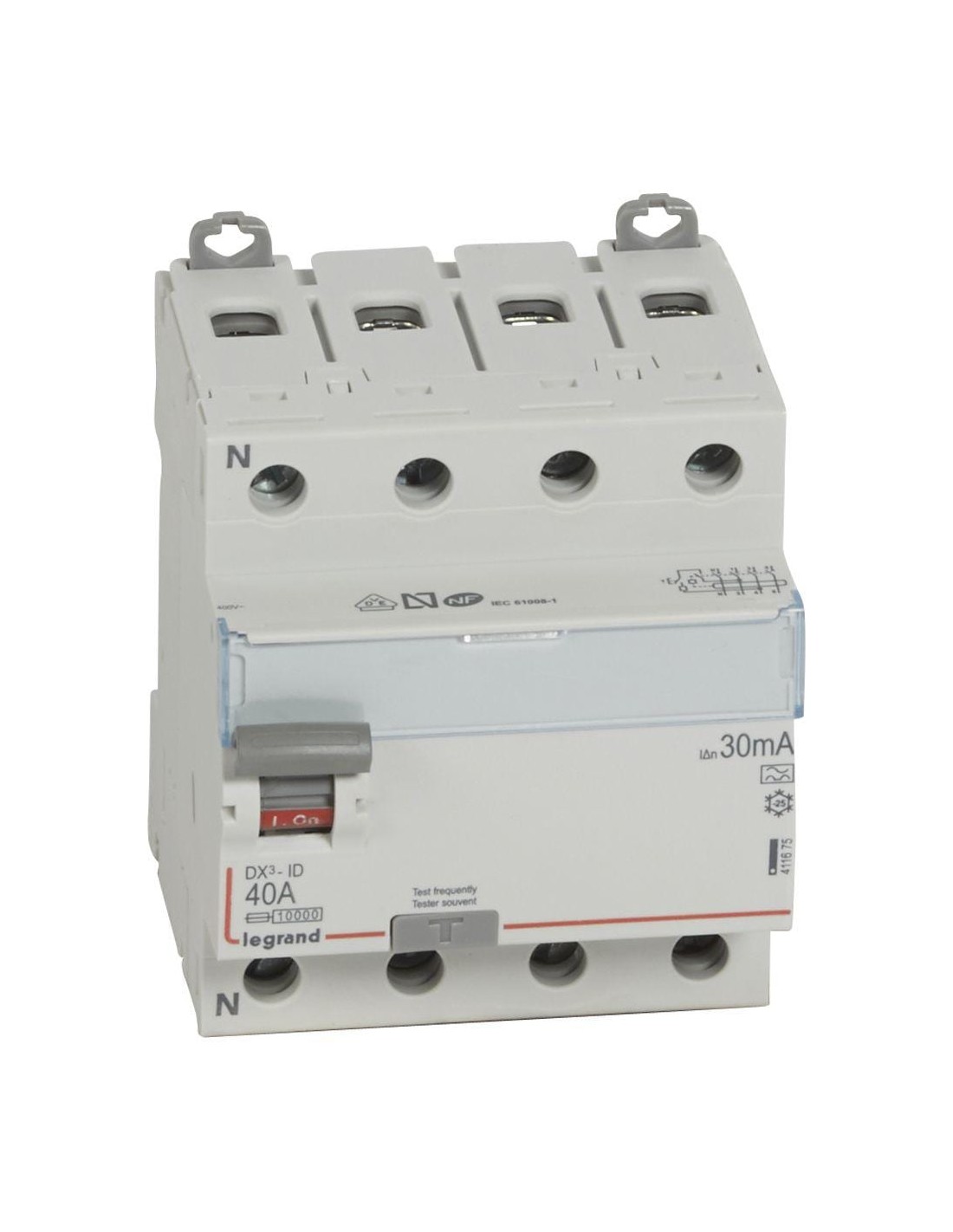

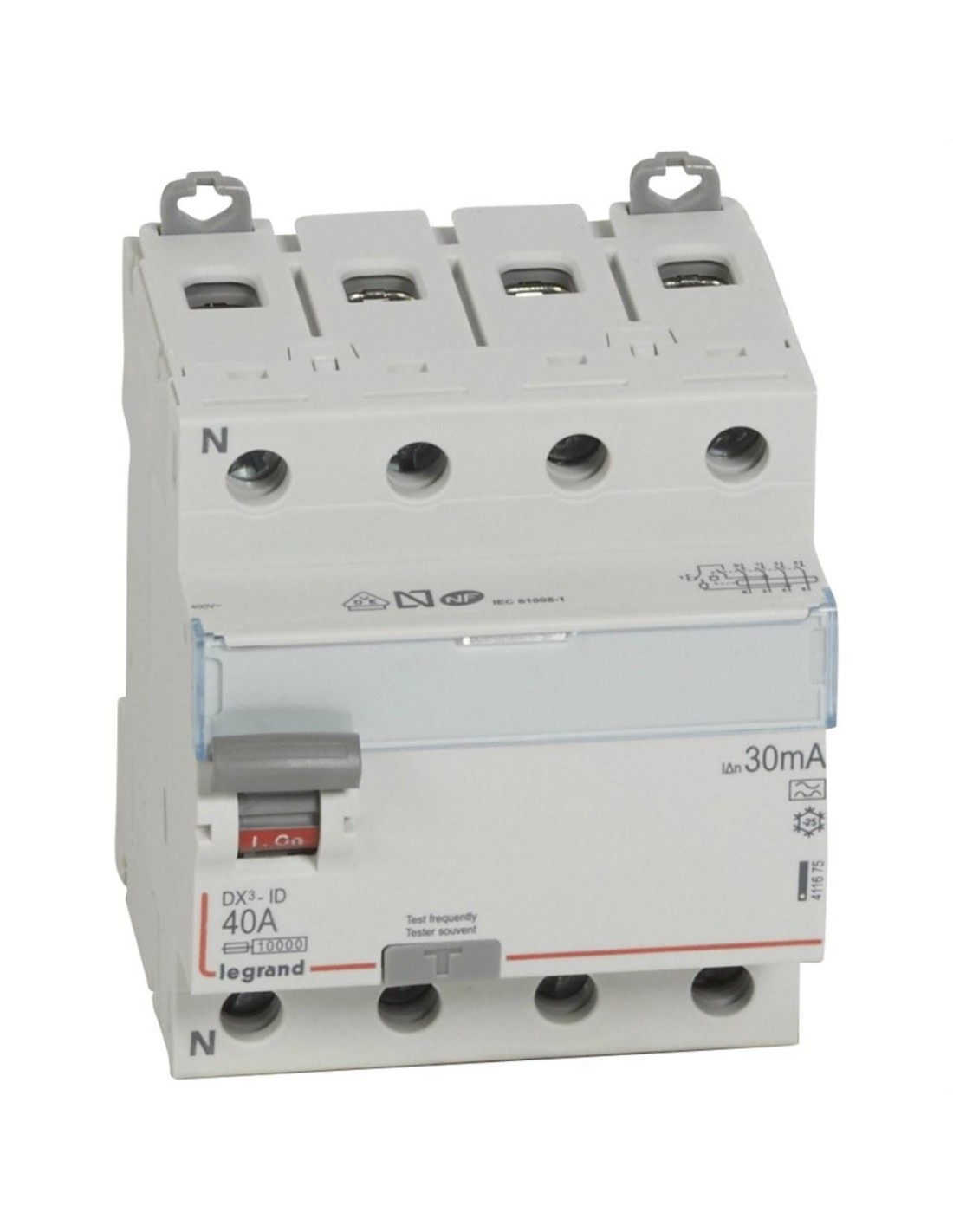

DX³ 4-pole residual current device designed to protect people against direct and indirect contact and to prevent fire risks caused by persistent earth fault currents.
This device provides a reliable response to Type A leakage currents, ensuring safety in AC electrical installations. Its compact 4-module design facilitates integration into standard electrical panels, allowing efficient space management and the connection of conductors up to 50 mm² in cross-section.
Product Details
| Width | 4 módulos |
|---|---|
| Depth | 44 mm |
| Nominal voltage (V) | 400 V |
|---|---|
| Rated voltage | 400 |
| Rated current (A) | 40 |
| Protection | IP20 |
|---|
| Frequency | 50 |
|---|---|
| Sensitivity | 30 mA |
| Curve | C |
| EAN | 3245064116756 |
| Manufacturer | LEGRAND |
| No. of poles | 4P |
| Reference | LEGRAND 411675 |
| Cable cross-section (mm²) | 0.75 |
| Colour | Grey |
Información legal
| Fabricante | LEGRAND |
|---|---|
| Dirección | C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES |
| [email protected] | |
| Teléfono | +34 916561812 |
| Referencia | LEGRAND 411675 |
| EAN | 3245064116756 |
