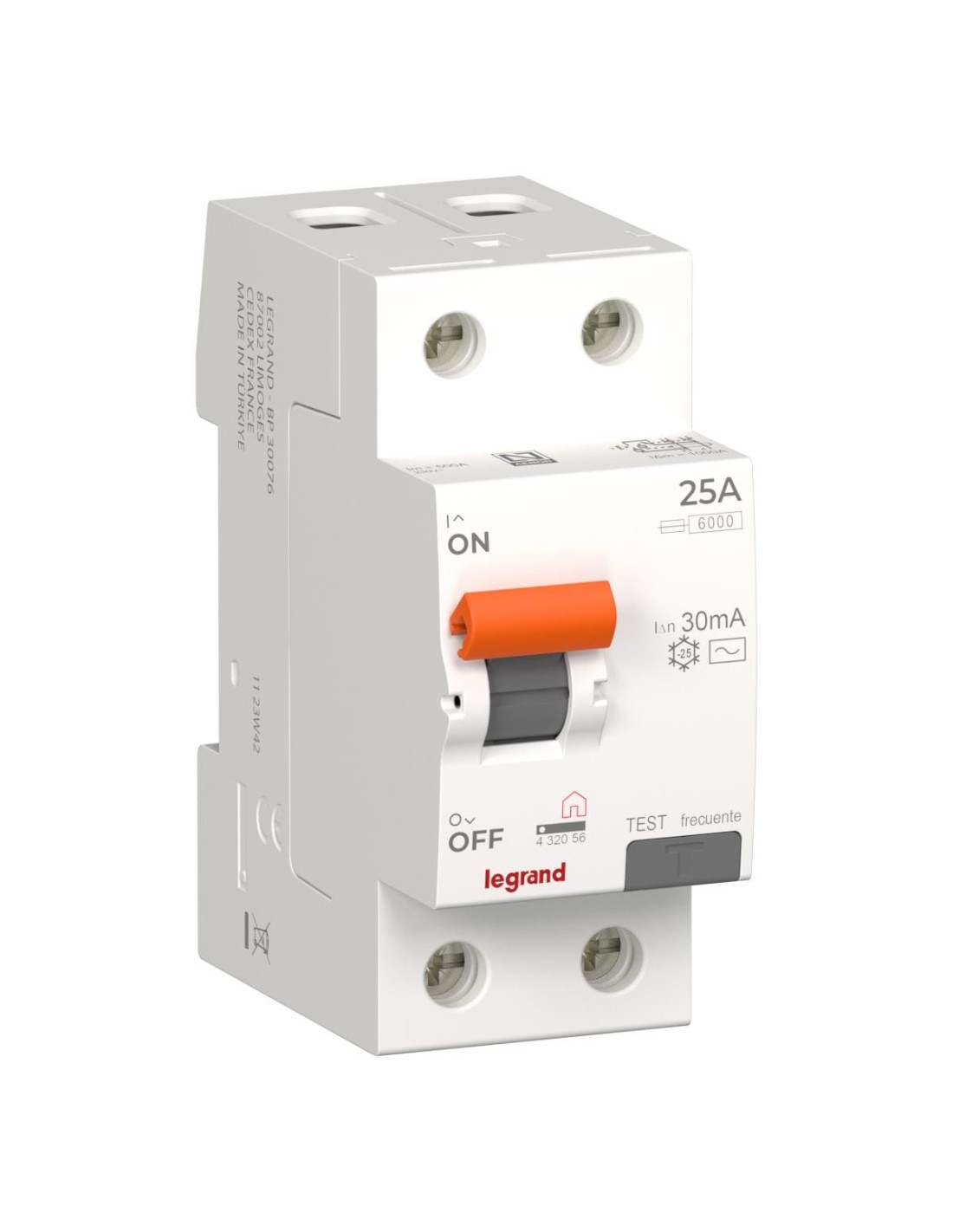

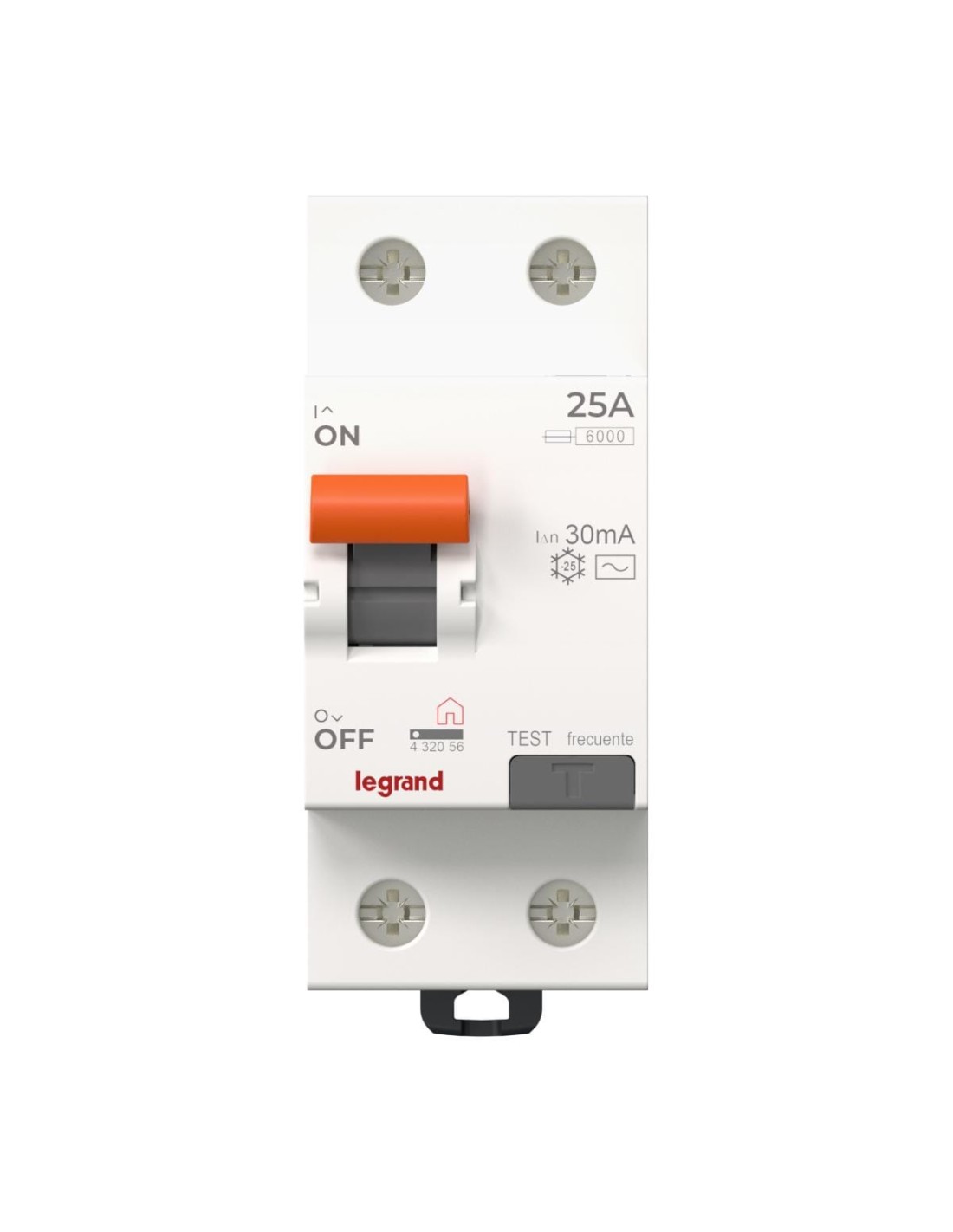

Two-pole residual current device for 230 V and 25 A with 30 mA Type AC sensitivity. Protects against direct and indirect contact and fire risks caused by earth faults. DIN rail mounting, 10 kA short-circuit capacity, and lockout capability.
Description
The RX 2-pole residual current device is designed to protect people against direct and indirect contact and to prevent fire risks caused by persistent earth fault currents. This electrical protection device operates at a nominal voltage of 230 V and a rated current of 25 A, providing a reliable response to insulation faults.
This residual current device allows the connection of single-core cables up to 50 mm² and multi-core cables up to 35 mm², facilitating integration into standard installations. Its DIN rail mounting and lockout system ensure safe and accessible installation for maintenance. The 10 kA short-circuit capacity guarantees circuit stability in the event of severe faults.
Product Details
| Nominal voltage (V) | 230 V |
|---|---|
| Rated voltage | 230 |
| Current type | AC |
| Rated current (A) | 25 |
| Protection | IP20 |
|---|
| Frequency | 50 |
|---|---|
| Class | AC |
| Sensitivity | 30 mA |
| Curve | C |
| EAN | 3414973151114 |
| Manufacturer | LEGRAND |
| No. of poles | 2P |
| Reference | LEGRAND 432056 |
| Cable cross-section (mm²) | 0.75 |
| Colour | White |
Información legal
| Fabricante | LEGRAND |
|---|---|
| Dirección | C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES |
| [email protected] | |
| Teléfono | +34 916561812 |
| Referencia | LEGRAND 432056 |
| EAN | 3414973151114 |
