List of products by brand SCHNEIDER

Schneider

Showing 13-24 of 6376 item(s)

ComPacT NSX80 DC PV 4P 80A Automatic Circuit Breaker

Last units

Miniature circuit breakers

ComPacT NSX80 DC PV 4P 80A Automatic Circuit Breaker

IMPO C10F4TM080D1

Automatic ComPacT NSX100F 4P 80A switch for direct current photovoltaic installations. It supports nominal operating voltage of 1000 V DC, Icu cutting capacity of 10 kA in 1000 V DC, with thermal-magnetic protection and adjustable overload current adjustment between 0.7 and 1.0 times In.

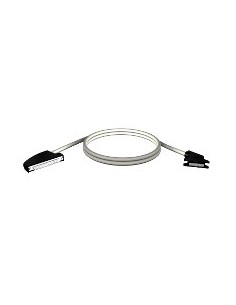

40P SUB-D connector 25, 1.5 m terminal block

Last units

Industrial automation

40P SUB-D connector 25, 1.5 m terminal block

IMPO BMXFCA152

€89.33

Pré-formed cab with 40-way SUB-D 25 connector for connection between sub-base and module in Modicon X80 systems. 1.5 m length, compatible with BMXART0414, BMXART0814 and ABE7CPA412. Designed for industrial installations with proactive compliance RoHS EU, without toxic heavy metals or mercury.

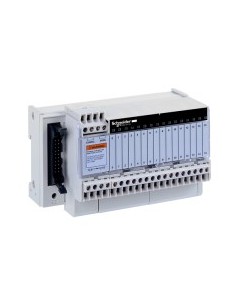

16-channel electromechanical relay base 24 V DC

Last units

Industrial automation

16-channel electromechanical relay base 24 V DC

IMPO ABE7R16S111

€241.67

Soldered electromechanical relay base ABE7 for Modicon Atrium system, with 16 channels, 24 V DC power supply, normally open contact per channel, maximum current per common 12 A, electrical durability 500 000 cycles, protection rating IP41, fixed by clips or screws on 35 mm DIN rail.

Last units

Differential

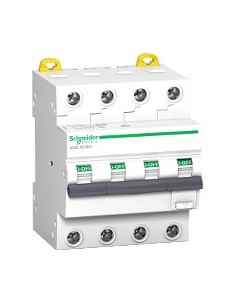

RCBO 4P 10 A Curve C 30 mA

IMPO A9D77410

€403.52

Differential switch with overcurrent protection (RCBO) 4P, 10 A, curve C, earth leakage sensitivity 30 mA, breaking capacity 6000 A Icn at 415 V AC, 50 Hz, with thermal-magnetic technology and independent instantaneous trip from voltage, designed for industrial and commercial installations in distribution cabinets.

Acti9 NG125N 3P 20 A C Curve Automatic Switch

Last units

Miniature circuit breakers

Acti9 NG125N 3P 20 A C Curve Automatic Switch

IMPO 18634

€189.85

Miniature automatic switch Acti9 NG125N, 3 poles, 20 A, C curve, with breaking capacity Icu of 25 kA at 380–415 V AC, thermal-magnetic design, DIN 35 mm rail mounting, suitable for small commercial installations with IP20 protection and pollution degree 3.

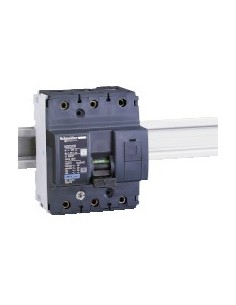

Acti9 NG125N 3P 16 A C Curve Automatic Switch

Last units

Miniature circuit breakers

Acti9 NG125N 3P 16 A C Curve Automatic Switch

IMPO 18633

€144.56

Miniature automatic switch Acti9 NG125N, 3 poles, 16 A, C curve, with breaking capacity Icu of 25 kA at 380–415 V AC, designed for use in small commercial applications.

Miniature Circuit Breaker Acti9 NG125N 2P 80 A Curve C

Last units

Miniature circuit breakers

Miniature Circuit Breaker Acti9 NG125N 2P 80 A Curve C

IMPO 18629

€127.34

Miniature circuit breaker Acti9 NG125N, 2 poles, rated current 80 A at 40 °C, Curve C, breaking capacity 25 kA at 380–415 V AC, with thermal-magnetic protection, DIN 35 mm rail mounting, suitable for installations in small businesses and buildings, featuring position indicator and integrated lock.

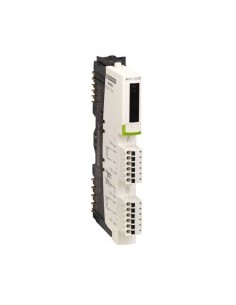

Analog input kit 0-10 V 2 channels 10 bits

Last units

Industrial automation

Analog input kit 0-10 V 2 channels 10 bits

IMPO STBAVI1255K

€334.42

Basic analog input kit for Modicon STB systems, with 2 voltage channels 0...10 V, 10 bit resolution, single 25 Hz pass filter. It supports cold exchange, 5 ms response time and 10 ms upgrade. Isolation between channels and 1500 V logic bus for 1 minute.

ABS Industrial Box Thalassa TBS 341x291x168 mm

Last units

Industrial electrical paneling

ABS Industrial Box Thalassa TBS 341x291x168 mm

IMPO NSYTBS342916H

€130.84

One-piece molded ABS industrial box, with IP66 and IK07 protection grade, designed for demanding environments. Outside height 341 mm, width 291 mm and depth 168 mm. Made of impact-resistant and corrosion-resistant material, with TÜV certification and compliance with IEC 62208 standards.

Steel industrial box 150x300x120 mm IP66 IK10

Last units

Industrial electrical paneling

Steel industrial box 150x300x120 mm IP66 IK10

IMPO NSYSBM153012

€101.19

Industrial steel case with blind door, spatial design SBM, dimensions 150 x 300 x 120 mm, wall mount. Made of steel sheet with powdered polyester finish RAL 7035. IP66 and IK10 protection, compatible with IEC 62208 standards. Operating temperature from -35 to 80 °C. Weight: 2.1 kg.

Mounting brackets for PanelSeT SFN/SM channel steel

Last units

Accessories for electric boxes

Mounting brackets for PanelSeT SFN/SM channel steel

IMPO NSYMCDFIX

€167.26

Set of 6 fixing brackets for panel set SFN/SM made of zinc-coated steel, designed for DIN rail mounting. Compatible with Space SMHF and Space SF ranges. Height adjustable between 85 mm and 115 mm, width from 50 mm to 155 mm, depth from 91.5 mm to 145 mm.

Coil for contactor TeSys D LX1D8 230 V AC 50/60 Hz

Last units

Contactors

Coil for contactor TeSys D LX1D8 230 V AC 50/60 Hz

IMPO LX1D8P7

€101.45

Tesys D contactor coil model LX1D8, designed for LC1D115 and LC1D150 contactors. It works with AC 230 V control voltage at 50/60 Hz, average strength from 9895 to 20 °C and closed circuit inductance of 210.72 H.
