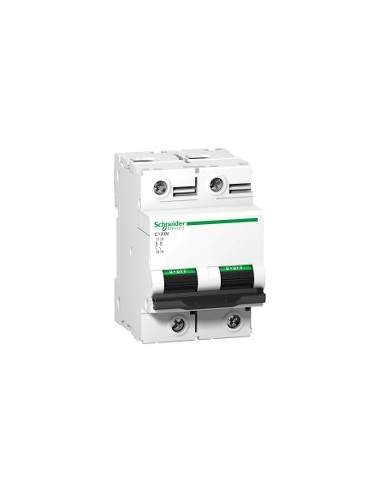

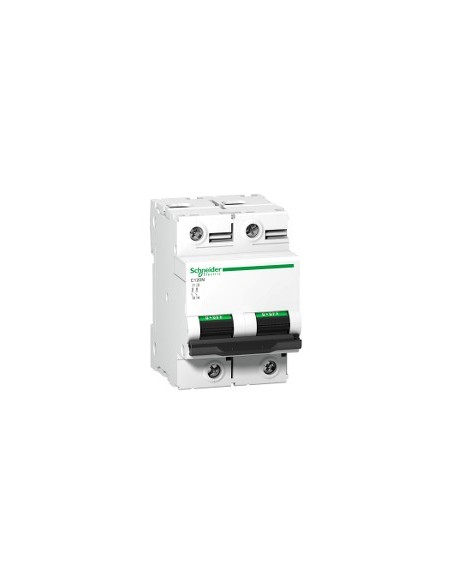

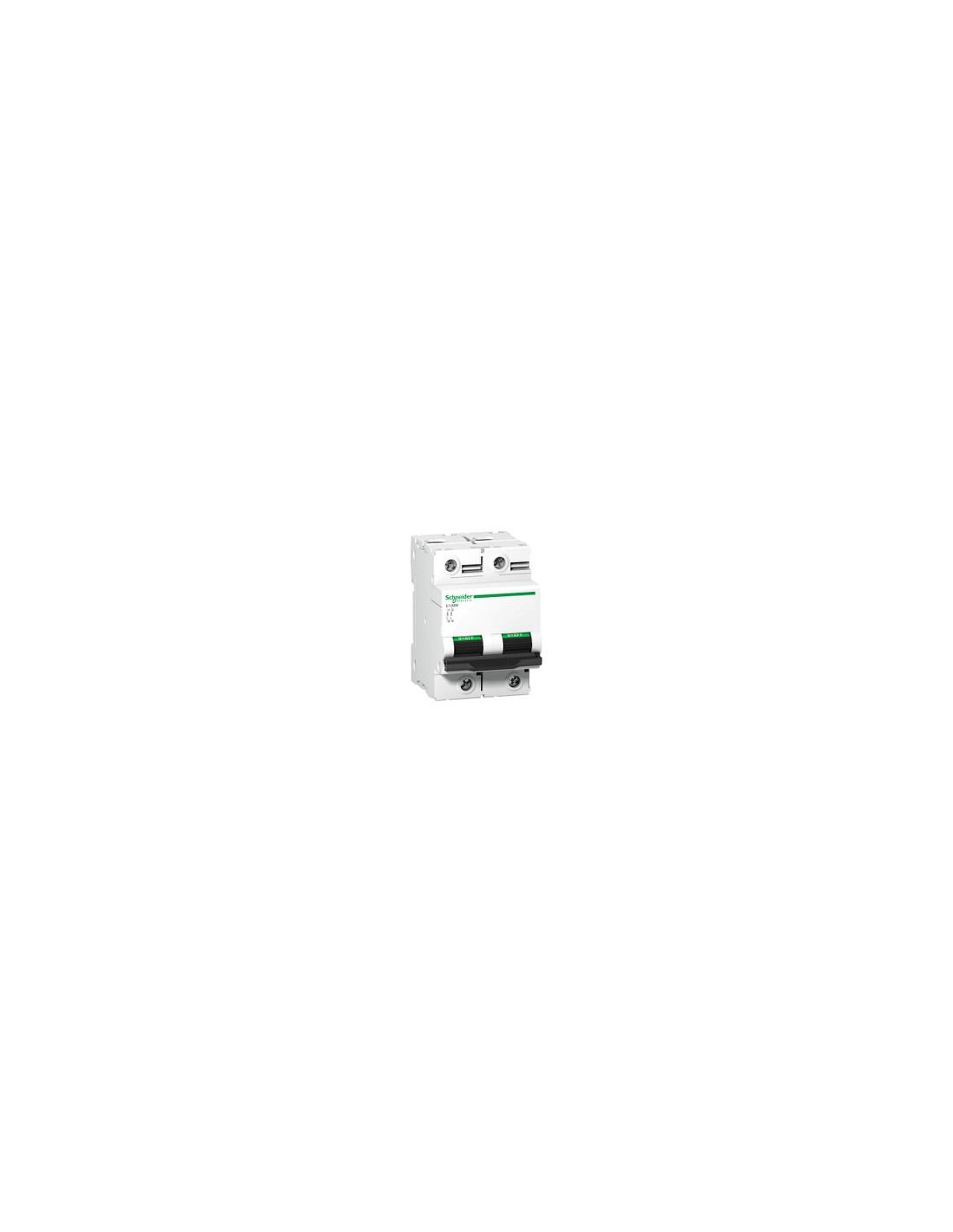

Acti9 C120N 2P 63 A B Curve Automatic Switch

Miniature 2-pole automatic switch Acti9 C120N, designed to protect electrical circuits in residential and small commercial installations. Offers thermal and magnetic protection with B curve, suitable for nominal currents of 63 A at 30 °C. Its breaking capacity Icn reaches 10,000 A at 230...400 V AC 50/60 Hz, in accordance with IEC 60898-1.

Technical Features

• Number of poles: 2P
• Number of protected poles: 2
• Neutral position: Left
• Rated current [In]: 63 A at 30 °C
• Network type: AC
• Trip unit technology: Thermal-magnetic
• Curve code: B
• Breaking capacity: 10,000 A Icn at 230...400 V AC 50/60 Hz in accordance with EN/IEC 60898-1
• Service breaking capacity [Ics]: 7,500 A (75 %) at 230...400 V AC 50/60 Hz
• Rated operating voltage [Ue]: 220...240 V AC, 380...415 V AC, 440 V AC, 230...400 V AC
• Supply frequency: 50/60 Hz
• Magnetic trip limit: 3...5 x In
• Limitation class: 3 in accordance with Icu
• Rated insulation voltage [Ui]: 500 V AC
• Surge voltage withstand [Uimp]: 6 kV
• Contact position indicator: Yes
• Local indications: On/Off indication
• Control type: Handle
• Mounting type: Clip-adjustable
• Mounting support: Symmetrical 35 mm DIN rail
• Phase connection spacing: 27 mm
• 9 mm steps: 6
• Connections - terminals: Tunnel-type terminals 1…50 mm² rigid, 1.5…35 mm² flexible
• Stripping length: 15 mm
• Tightening torque: 3.5 N·m
• Earth leakage protection: Independent block
• Protection degree IP: IP20 in accordance with IEC 60529
• Contamination degree: 3
• Overvoltage category: IV
• Tropicalization: 2 in accordance with IEC 60068-1
• Relative humidity: 95 % at 55 °C
• Maximum operating altitude: 2000 m
• Operating ambient temperature: -25…70 °C
• Storage ambient temperature: -40…85 °C
• Mechanical durability: 20,000 cycles
• Electrical durability: 10,000 cycles in accordance with EN > 50 A
• Color: White
• Product weight: 0.41 kg
• Height: 81 mm
• Width: 54 mm
• Depth: 73 mm
• Standards: Icu EN/IEC 60898-1
• Distribution block and busbar compatibility (comb type): Yes
• Compatibility code: C120
• Market segment: Residential, Small commercial
• EU RoHS Directive: Compliant
• REACH compliant without SVHC: Yes
• WEEE: Must be disposed of according to specific system in the EU
