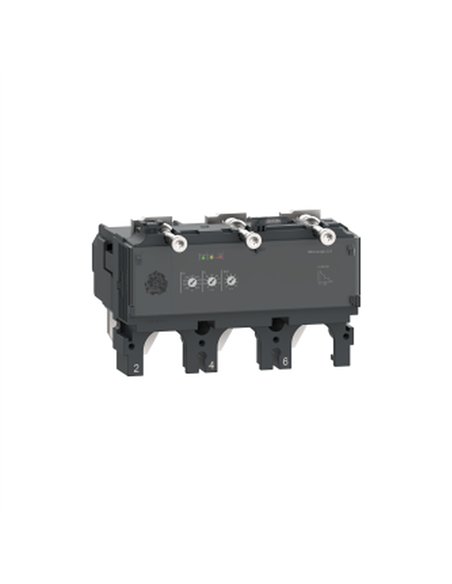

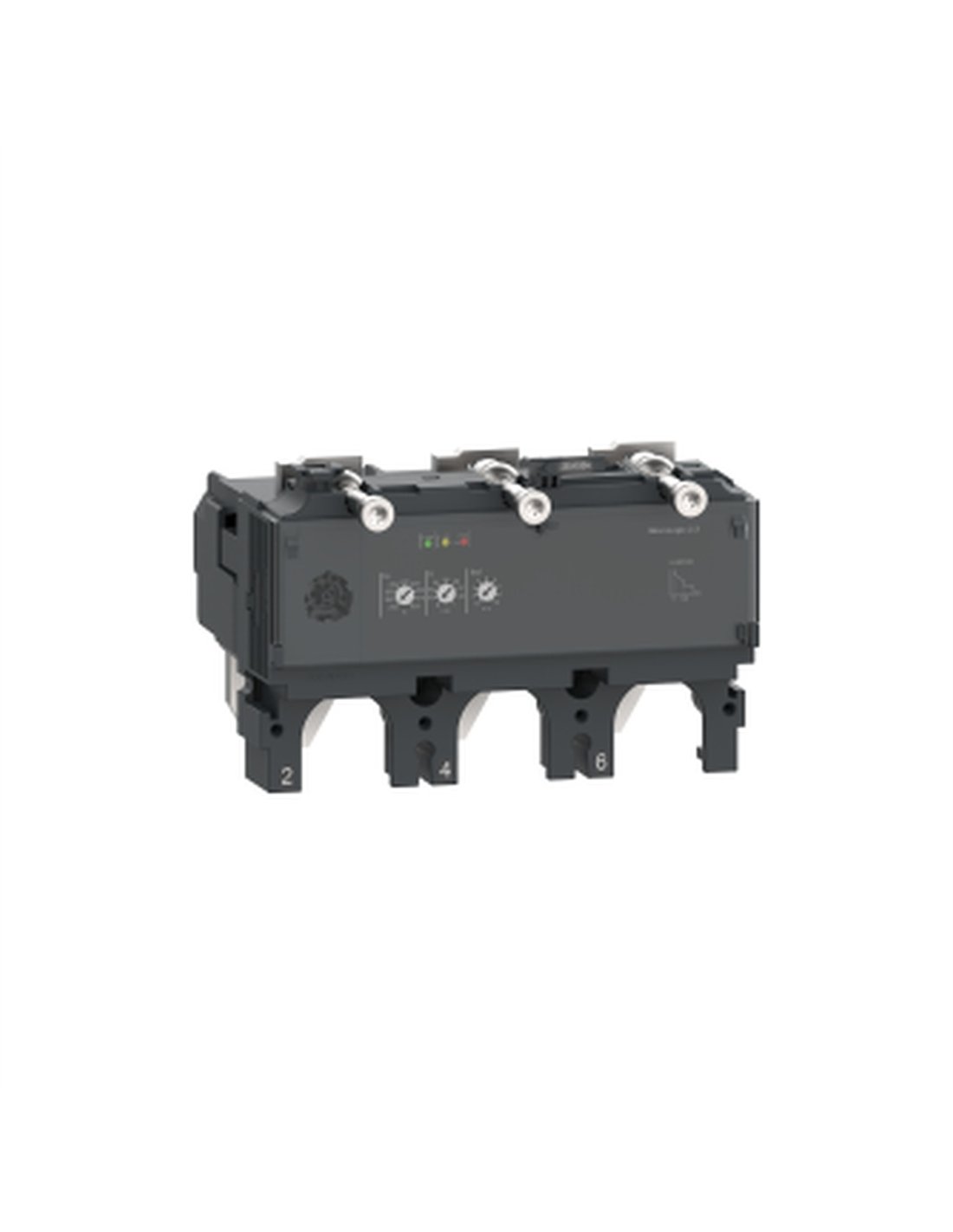

TRIP UNIT NSX400 AC 3P3D 400A 2.3
TRIP UNIT NSX400 AC 3P3D 400A 2.3

Trip unit COMPACT 400A 3P electronic technology IP40 adjustable 160-400A and temperature -25 to 70 °C

Available In stock 100 Items Reference IMPO C4032D400
€652.59
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
The ComPacT NSX400 400A 3P Trip Unit offers advanced electronic protection for electrical applications. Designed for demanding environments, it ensures efficient overload and short-circuit management, operating over a wide temperature range and guaranteeing safe and reliable operation.

Description

The TRIP UNIT NSX400 AC 3P3D 400A 2.3 is a state-of-the-art control device designed for electrical applications requiring precise current management. This device is part of the ComPacT range, offering advanced solutions for the protection of electrical circuits in industrial and commercial environments.

  • Range: ComPacT next generation
  • Product type: Trip unit
  • Control unit: Micrologic 2.3
  • Tripping technology: Electronic
  • Compatibility: Compact NS NSX400 and NSX630
  • Application: Current> 0.1 A
  • Number of poles: 3P
  • Protection functions: LSoI
  • Overload protection: Long time
  • Short circuit protection: Fixed delay
  • Rated current: 400 A at 40 °C
  • Rated voltage: 690 V AC 50/60 Hz
  • Type of Mounting: Fixed
  • Long-term detection adjustment range: 160...400 A
  • Operating temperature: -25…70 °C
  • Protection rating: IP40 according to IEC 60529

Product Details

Eléctrico

Rated current (A) 400

Otras

EAN 3606482003026
No. of poles 3P
Reference IMPO C4032D400

Información legal

Fabricante Schneider Electric España, S.A.
Dirección Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email [email protected]
Teléfono +34 930289900
Referencia IMPO C4032D400
EAN 3606482003026
100 Items

Downloads

Reviews (0)

No reviews
