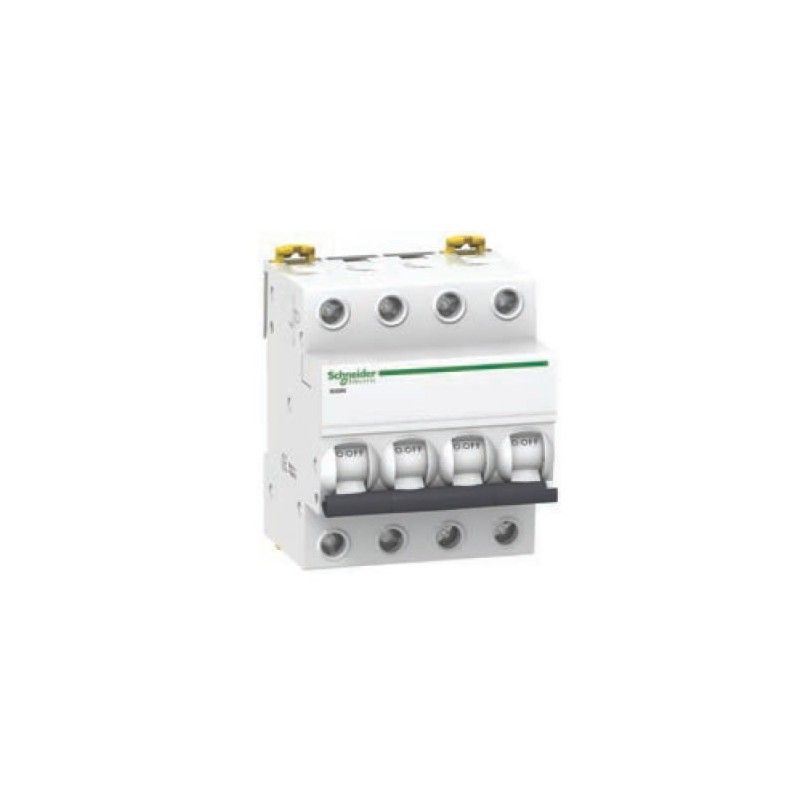

Interruptor automático 4P 32A TERCIARIO Schneider A9F79432

Circuit breaker 4P 32A TERTIARY Schneider A9F79432

Interruptor automático 4P 32A TERCIARIO Schneider A9F79432

Circuit breaker 4P 32A TERTIARY Schneider A9F79432

Circuit breaker 4P 32A TERTIARY Schneider A9F79432

Available In stock 129 Items

Reference SCHNEIDER A9F79432

€81.90

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Automatic Switch 4P 32A

tertiary Range

Description

Interruptor automático 4P 32A TERCIARIO Schneider A9F79432

Poder de corte 6000A Curva C
Tensión de empleo 230/400 V CA
Corte plenamente aparente: banda verde en la maneta
Tensión aislamiento 500V CA
Grado polución 3
Tensión impulsional 6Kv
Ancho por polo: 2 pasos de 9 mm

Product Details

Eléctrico

Nominal voltage (V)	230V
Rated current (A)	32

Otras

Curve	C
EAN	3606480093449
Manufacturer	Schneider
Range	Terciario
No. of poles	4P
Reference	SCHNEIDER A9F79432

Información legal

Fabricante	Schneider Electric España, S.A.
Dirección	Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email	[email protected]
Teléfono	+34 930289900
Referencia	SCHNEIDER A9F79432
EAN	3606480093449

In stock 129 Items

Downloads

Product sheet Store PDF Download

Reviews (0)

No reviews
