HAGER MCA232 | Circuit breaker M curve-C 6kA 2P 32A

HAGER MCA232 | Circuit breaker M curve-C 6kA 2P 32A

HAGER MCA232 | Circuit breaker M curve-C 6kA 2P 32A

Out of stock

Reference HAGER MCA232

€38.85

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

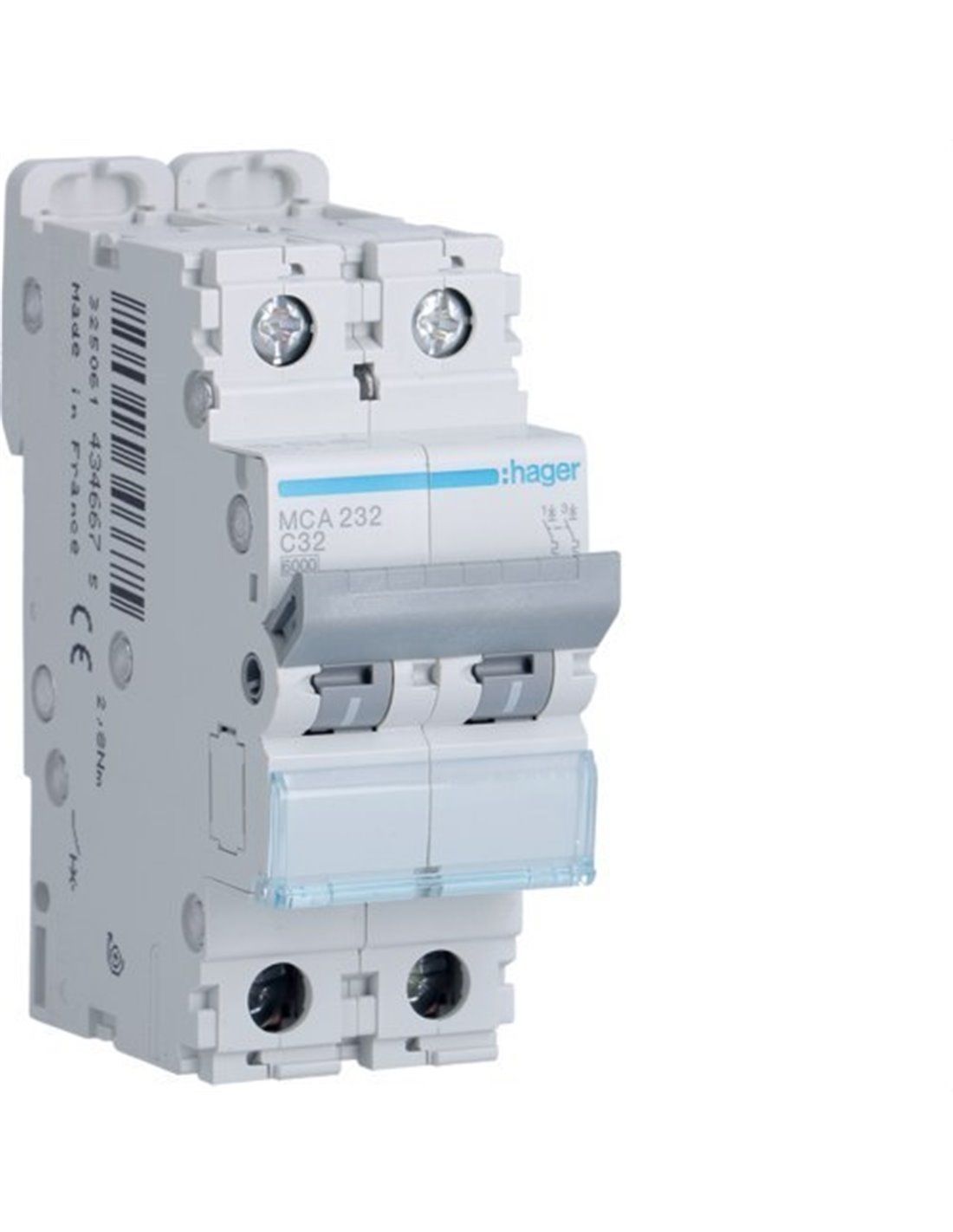

2P thermal-magnetic circuit breaker with a nominal current of 32A. This curve C accessory has a voltage of 415V AC 50/60Hz and a breaking capacity of 6kA. Thus, the switch with a tightening torque of 2.8Nm has dimensions of 83x35x70mm. This device is characterized by maintaining the IP20 protection degree and an operating temperature of -25 to 60°C. In addition, the M series offers a variety of products with innovative and timeless designs focused on functionality. Likewise, the range offers the switch with different technical characteristics.

Product Details

Dimensiones

Weight (kg)	0

Eléctrico

Rated current (A)	32

Otras

Curve	C
EAN	3250614346675
Manufacturer	Hager
No. of poles	2P
Reference	HAGER MCA232

Información legal

Fabricante	HAGER
Dirección	132 Boulevard d'Europe, 67215 Obernai, France, ES
Email	[email protected]
Teléfono	+33 388495050
Referencia	HAGER MCA232
EAN	3250614346675

Downloads

Product sheet Store PDF Download
