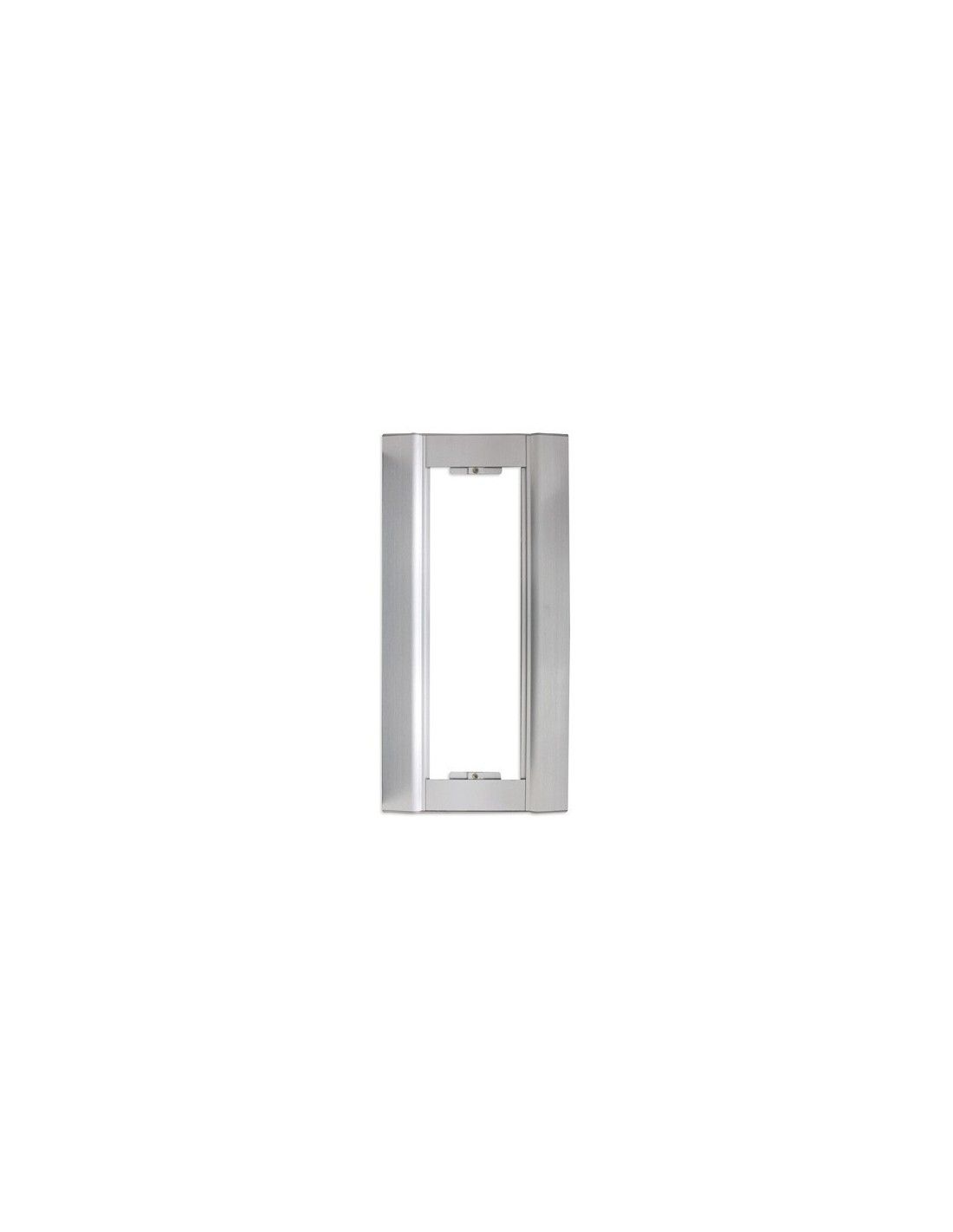

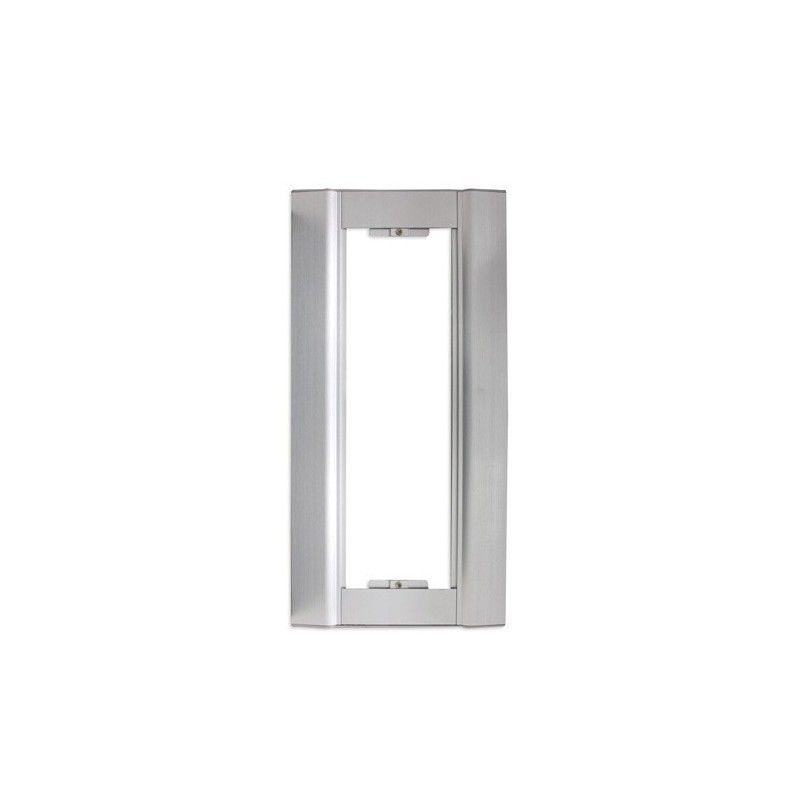

Frame bezel
Model City
Manufacturer: FERMAX
Drop your email and we'll let you know the moment it's back.
Description
The cover frames allow you to replace old plates of porter and video entry-phone by the new models of the series, CITYLINE and CITY CLASSIC, covering the gap and integrate perfectly with the finish of these plates.
Are available on all sizes of the SERIES of Plates (S1...S9), and in widths sufficient to cover 1 or 2 plates at the same time:
- Simple framework: 1 plate
- Dual frame: 2 plates
Supplied with all necessary accessories for mounting.
Can only be installed if the plate is mounted with recessed box, never with surface box.
Measures frames SIMPLE (width H x height V)
- Series 1 - Ref. 8251: 225(H) x 310(V)mm
- 2-Series - Ref. 8252: 225(H) x 310(V)mm
- Series 3 - Ref. 8253: 225(H) x 375(V)mm
- Series 4 - Ref. 8254: 225(H) x 375(V)mm
- 5-Series - Ref. 8255: 225(H) x 375(V)mm
- 6-Series - Ref. 8256: 225(H) x 450(V)mm
- 7-Series - Ref. 8257: 225(H) x 450(V)mm
- Series 8 - Ref. 8258: 225(H) x 450(V)mm
- Series 9 - Ref. 8259: 225(H) x 495(V)mm
Measures frames DOUBLE (width H x height V)
- Series 1 - Ref. 8424: 355(H) x 315(V)mm
- 2-Series - Ref. 8425: 355(H) x 315(V)mm
- Series 3 - Ref. 8426: 355(H) x 385(V)mm
- Series 4 - Ref. 8427: 355(H) x 385(V)mm
- 5-Series - Ref. 8428: 355(H) x 385(V)mm
- 6-Series - Ref. 8429: 355(H) x 460(V)mm
- 7-Series - Ref. 8430: 355(H) x 460(V)mm
- Series 8 - Ref. 8431: 355(H) x 460(V)mm
- Series 9 - Ref. 8474: 355(H) x 500(V)mm
Weight: 0,800 kg
Product dimensions packed: 1,5x23x50,5 cm
EAN 13: 8424299082585
Located in our accessories section for doormen and video door entry system, all the cover frames for the products FERMAX. If you can't find any reference, please contact us.
