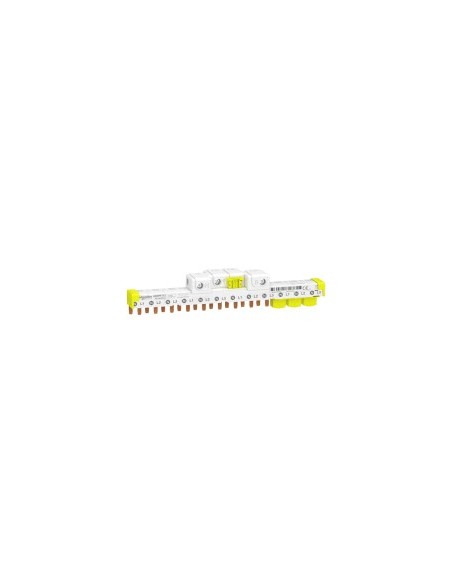

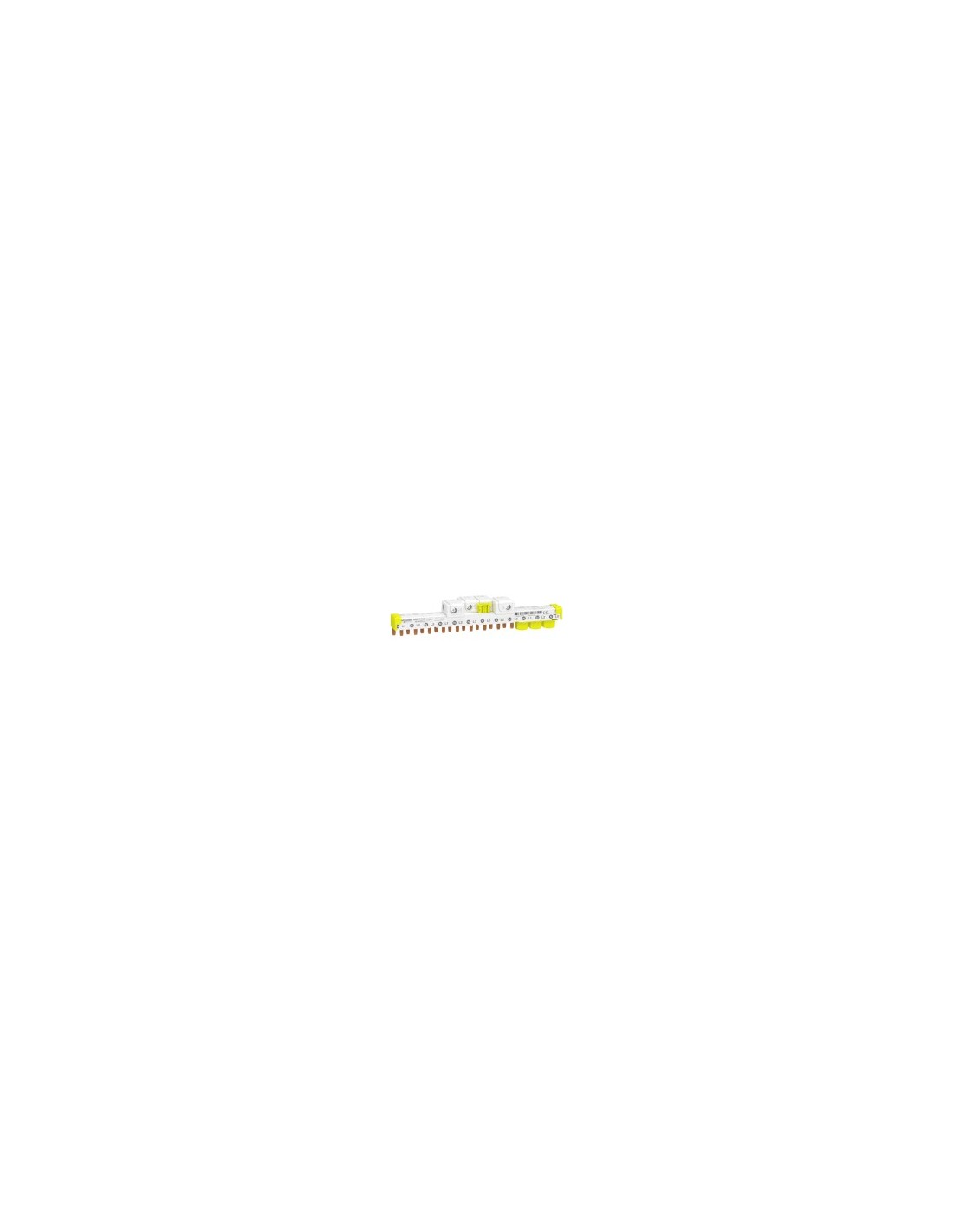

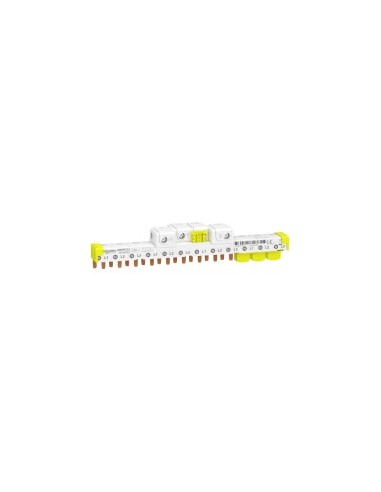

Acti9 3P+N 12-module 80A connection comb

Balanced connection comb of the Acti9 range, designed for use in industrial and commercial electrical installations. It consists of 12 18 mm modules, with a 3P+N configuration and a 9 mm step between phase and neutral, 18 mm between phases. Its horizontal design allows an installation in tunnel-type terminals, in the upper position.

Technical characteristics

• Total number of modules: 12
• Configuration: 3L + N
• Number of addresses: 4 N + 3 L (balanced)
• Connection step: 9 mm between phase and neutral, 18 mm between phases
• Connector type: Tooth
• Distance between tracks: 54 mm
• Marked: N L1 N L2 N L3
• Insulation: Isolated
• Presentation: Trimmed
• Nominal current of employment: 63 A to 40 °C
• Nominal use voltage [Ue]: 230 V AC Phase/N, 400 V AC Phase/Phase
• Nominal insulation voltage [Ui]: 440 V AC (IEC 61439-1)
• Voltage peak resistance [Uimp]: 4 kV
• Degree of contamination: 3 (IEC 60439-1)
• Standards: EN/IEC 60439-1
• Fire resistance: 960 °C for 30 s (IEC 60695-2-1)
• Degree of IP protection: IP20 with end caps and tooth cover
• Colour: White (RAL 9003)
• Connections: Screw terminals
• Compatibility: Acti9 C40 Vigi, C60H-DC, DT40 Vigi, DT60, iDPN (China), ID C40 Vigi, TG40 Vigi, TG60, Multi 9 N40 Vigi, NC100, iC40, iDT40, iDD40, iDD40 TG Vigi, iTG40, iIG40, iCV40 Vigi, iCG40, iID40, iDT40K, iDD40K, iIG40K
• According to EU RoHS, REACh without SVCH, without toxic heavy metals or mercury
• Proactive statement by RoHS China (out of legal scope)
• WEEE: Waste in specific EU collection systems
