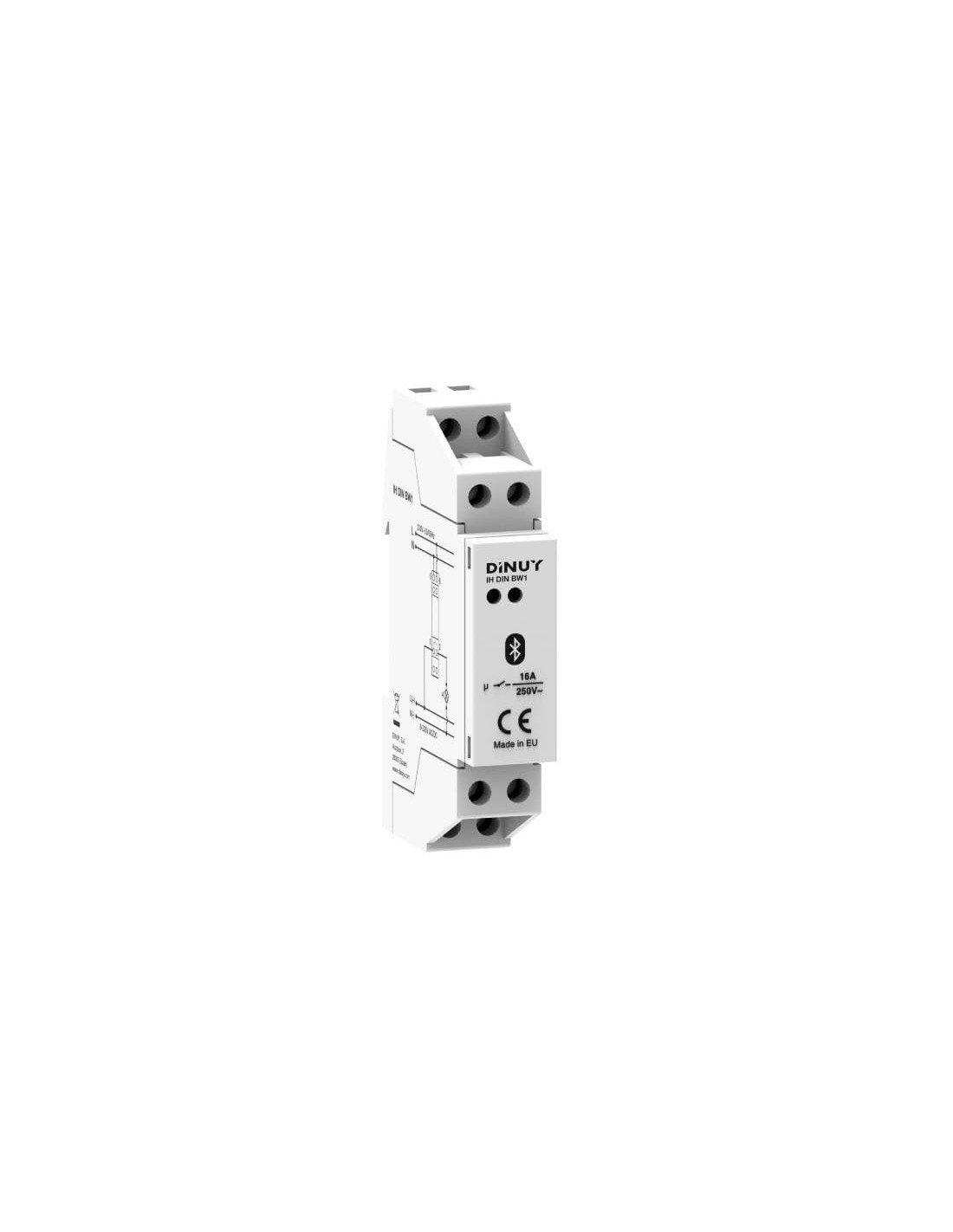

Modular Screenless Time Scheduler 1-Channel Bluetooth

A channel's modular screenless scheduler is a digital device designed to automate electrical switching in residential and commercial facilities. It uses Bluetooth technology for remote configuration through mobile applications, allowing flexible management without the need for local visualization. This switch integrates perfectly into standard DIN rails, offering a compact and efficient solution for load control in various electrical environments.

Technical characteristics

• Rail format DIN 35 mm
• Output channel: 1 x 16 A
• Maximum LED switching power: 600 W
• Zero Crossing Technology Technology
• Functions: ON/OFF/Impulse
• Protection degree IP20

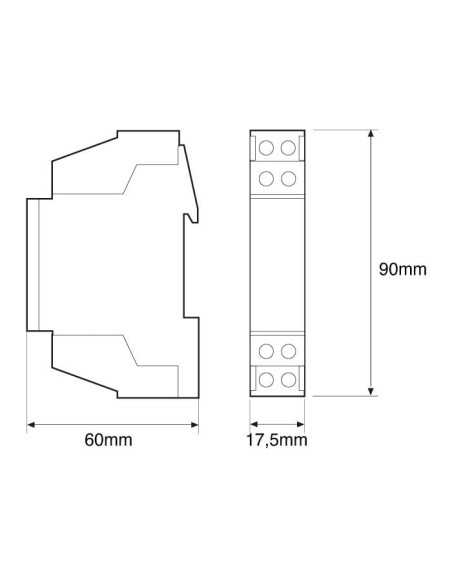

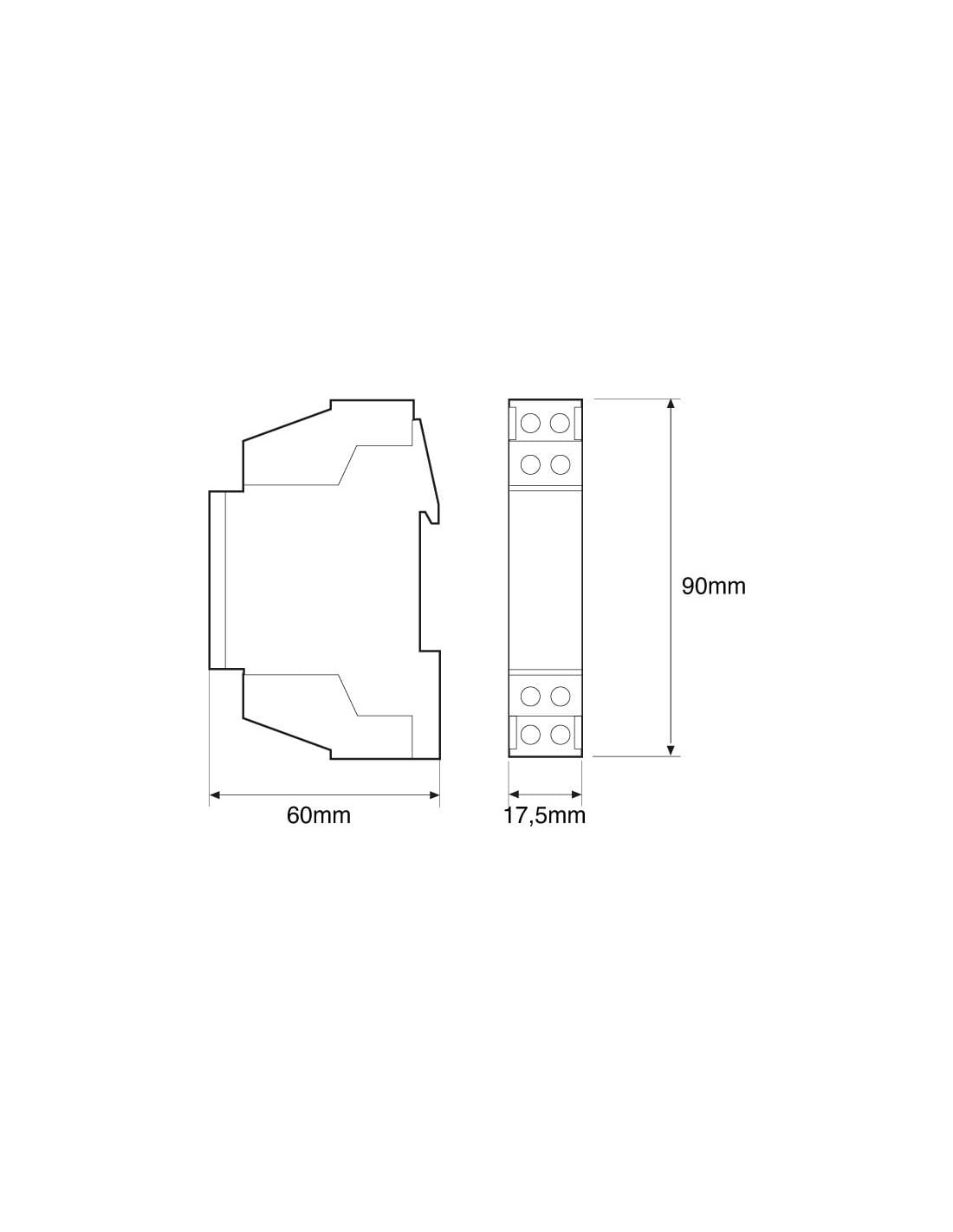

• Dimensions: 17.5 mm x 90 mm x 53 mm
• Bluetooth connection for external programming
• Automatic activation summer/winter time
• Holiday programme included

Thanks to its ability to program up to 64 maneuvers, this device allows accurate management of energy consumption. The zero-pass technology ensures a smooth ignition that protects connected equipment, while the PIN lock option ensures authorized use. Its modular design facilitates installation in existing electrical enclosures without occupying additional space.

The installation is easy by direct fixation to the standard DIN rail. It connects to the power grid and is configured via Bluetooth from a smartphone using the corresponding app. Maintenance is minimal, requiring only checking the status of contacts periodically. Its 10-year range ensures reliable operation without the need for external batteries, ideal for long-term automations.
