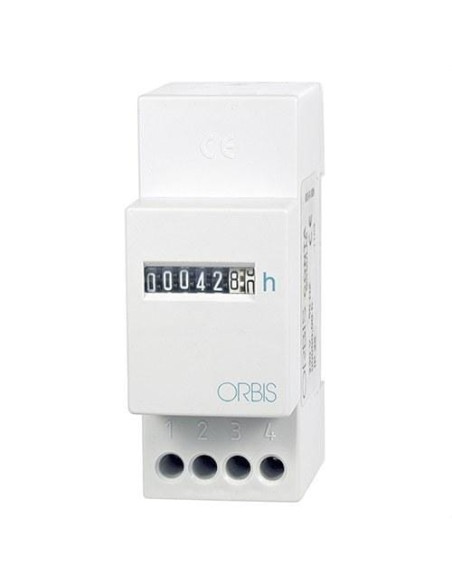

Embeddable hour meter CONTA 2 modules 230V DIN rail

The CONTA Timer is an embedded analog device designed to accurately record the operating time of industrial machinery. Operates at 230VCA and integrates easily into control systems through standard DIN rail mounting, offering a robust solution for time management.

Technical characteristics

• Power voltage: 230VCA
• Width: 2 modules
• Degree of protection: IP 20 (EN 60529)
• Temperature range: -10 oC to +70 oC
• Registration capacity: 99999.99 hours
• Accuracy: 0.01 hours
• Digits: 5 integers and 2 decimals
• Model: Analogue

This instrument guarantees a continuous reading without the possibility of zeroing, which ensures the integrity of the data accumulated during the life cycle of the equipment. Its high resolution allows detailed control of operating performance.

The installation is easy and fast thanks to the DIN rail system, allowing its secure fixation in electrical cabinets or machine profiles. It only requires connecting the AC power supply and securing the device in the corresponding lane to start recording hours immediately.
