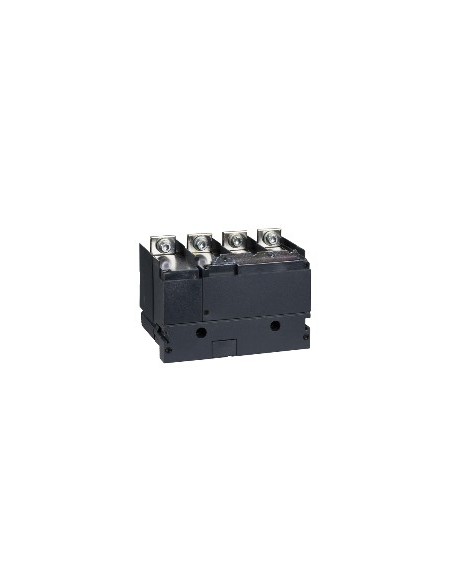

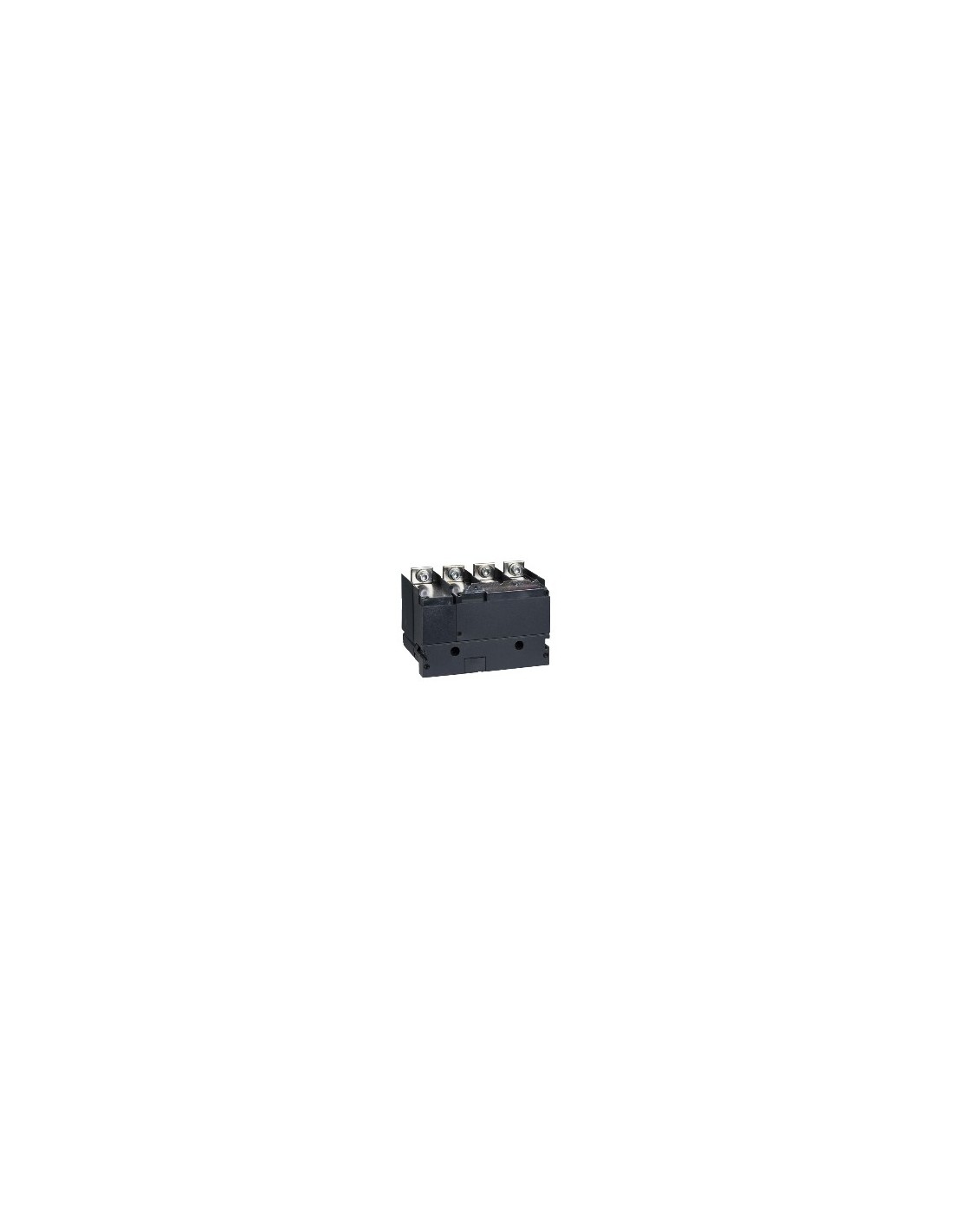

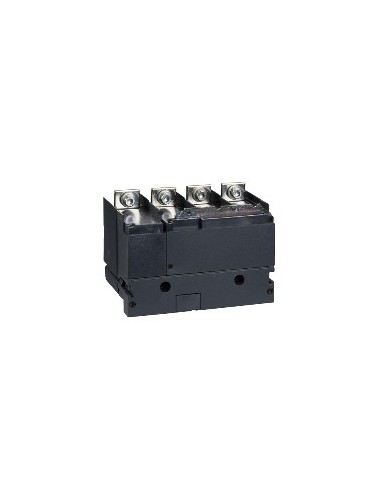

4-pole current transformer, 400 A, ratio 400/5 A, accuracy class 0.5, rated voltage 530 V, frequency 50/60 Hz, connection via 2.5 mm² cable connector, protection rating IP40 and IK04, compatible with ComPact NSX400/630, INSE and NB ranges, designed for control applications in AC systems.
Description
Current transformer block with voltage measurement output for control systems in electrical installations, compatible with new generation ComPact NSX400 and NSX630, as well as Compact INSE and Compact NB. Designed for integration into AC network current protection and monitoring systems.
Product Details
| Current type | AC |
|---|---|
| Rated current (A) | 400 |
| Protection | IP40 |
|---|
| Frequency | 50/60 Hz |
|---|---|
| EAN | 3606480020827 |
| Manufacturer | SCHNEIDER |
| No. of poles | 4P |
| Reference | IMPO LV432654 |
| Cable cross-section (mm²) | 2,5 mm² |
