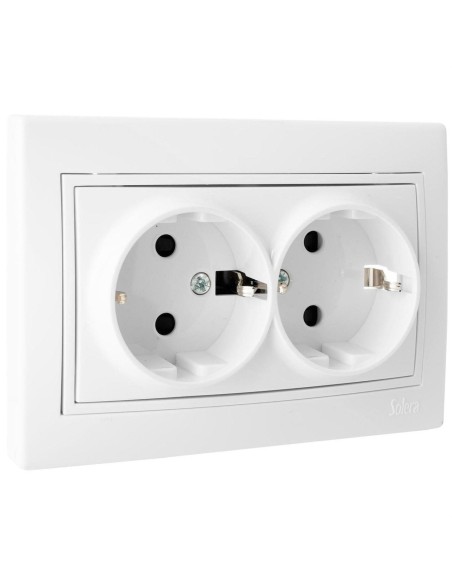

Double socket base 2P+TT shutter 16A 250V white

The double 2P+TT plug base with shutter is an electrical distribution device designed to connect multiple devices simultaneously in residential and commercial environments. Its technology incorporates individual 10A switches and main 16A sockets, ensuring safe load management. This component integrates perfectly into cast systems through recessed assembly, offering a robust and efficient solution for power supply in high-demand spaces.

Technical characteristics

• Nominal current: 16 A
• Nominal voltage: 250 V
• Operating frequency: 50...60 Hz
• Device width: 154 mm
• Device height: 81 mm
• Material: Halogen-free thermoplastic
• Colour: Bright white
• Degree of protection: IP20
• Contacts: Silver high breaking power
• Fixation: Mounting with hook and screw
• Connection: Screwed-up terminal
• Security: Integrated child protection

Thanks to its silver contacts and its construction in halogen-free thermoplastic material, this plug offers a high breaking power and fire resistance. The protection against children ensures safe use in homes with minors, while the compact 154x81 mm design allows a discreet installation without occupying excessive wall space. Its ability to handle up to 16 amperes makes it ideal to power high-consumption equipment such as heaters or washing machines.

The installation is carried out using a cast-down method, using the hook and screw system to ensure a solid and durable fixation. The screw-in terminals facilitate the connection of the electrical cables, allowing a precise and safe tightening that prevents failures by vibration or accidental disconnection.
