ULTRA 36kA 3P 100A 690V AC Basic Rack for current> 0.1 A

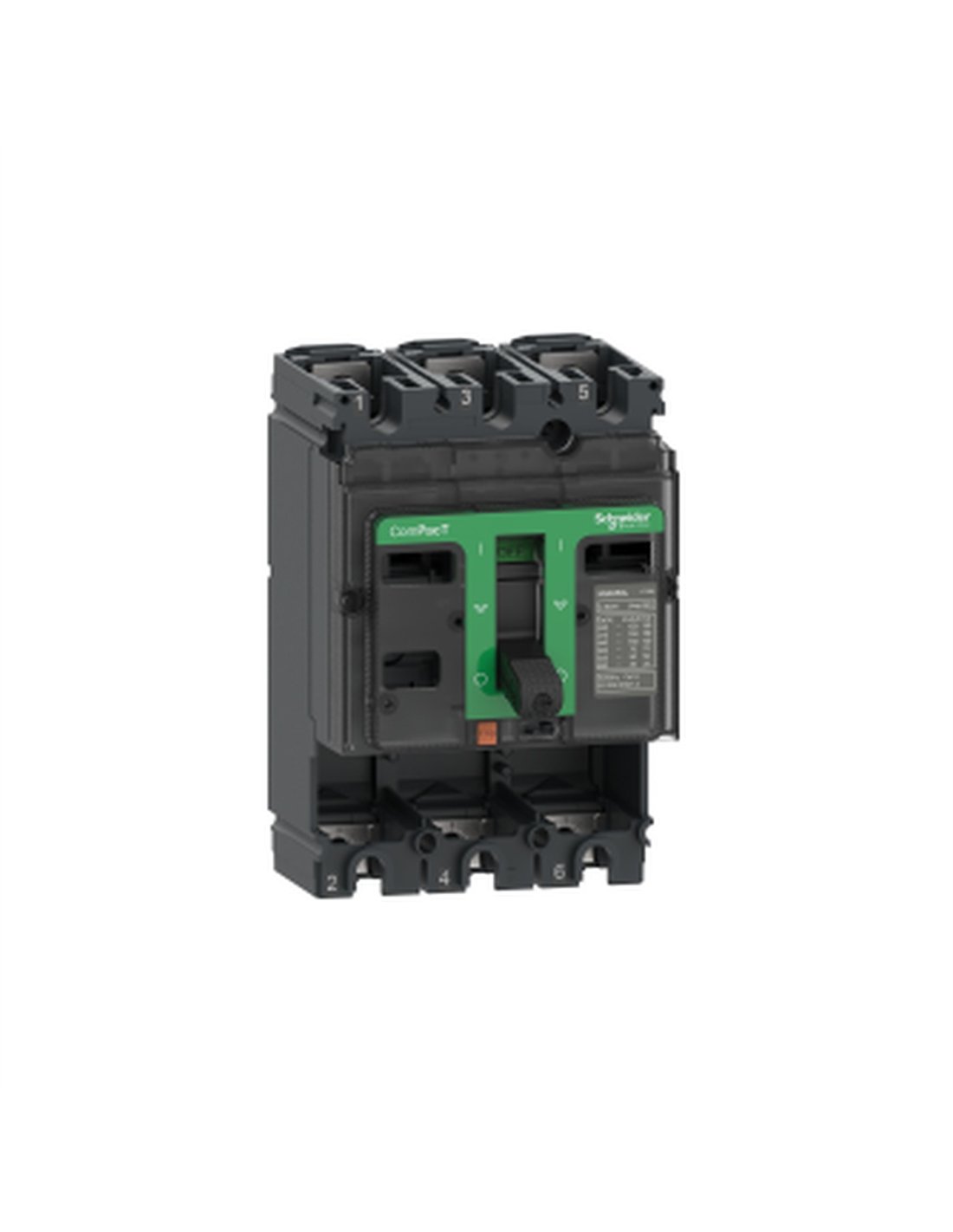

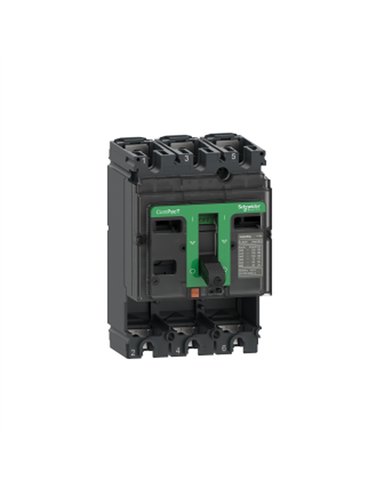

The NSX100F 36kA AC 3P 100A Circuit Breaker Block is a new-generation protective device from the ComPacT range, designed for applications requiring a current above 0.1 A. This basic frame, part of the ComPact NSX400...630 range, offers a robust and reliable solution for electrical power management in industrial and commercial environments.

With a rated current of 100 A at 40 °C and a rated operating voltage of up to 690 V AC, this device is ideal for alternating current (AC) networks with frequencies of 50/60 Hz. Its breaking capacity is remarkable, reaching up to 36 kA at 380/415 V AC, ensuring effective protection against overloads and short circuits.

Key technical features include:

• Control type: Lever
• Mechanical Durability: 50,000 cycles
• Electrical Durability: 10,000 cycles at 690 V AC
• Protection Rating: IP40
• Operating Temperature: -25…70 °C
• Connection: Front and Front
• Width: 105 mm
• Height: 161 mm
• Depth: 86 mm
• Certifications: UL, CSA

This device is a reliable choice for those seeking an efficient and durable protection system for their electrical installations.
