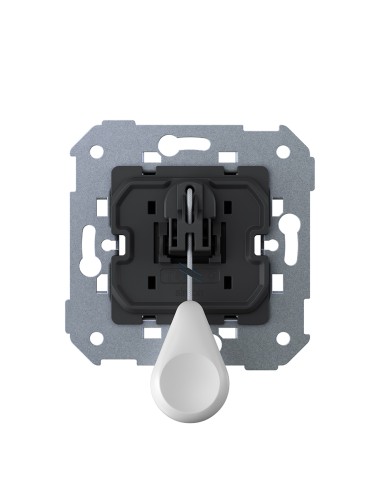

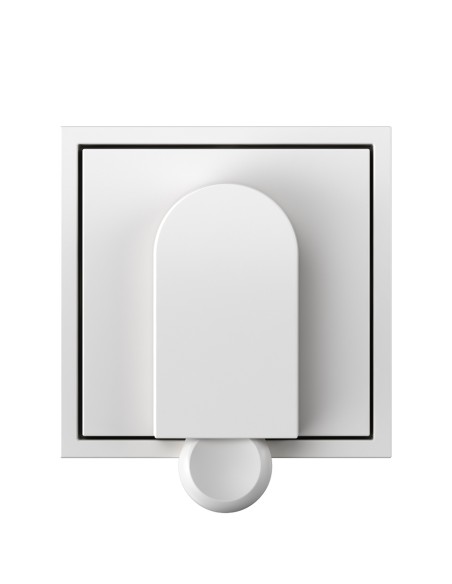

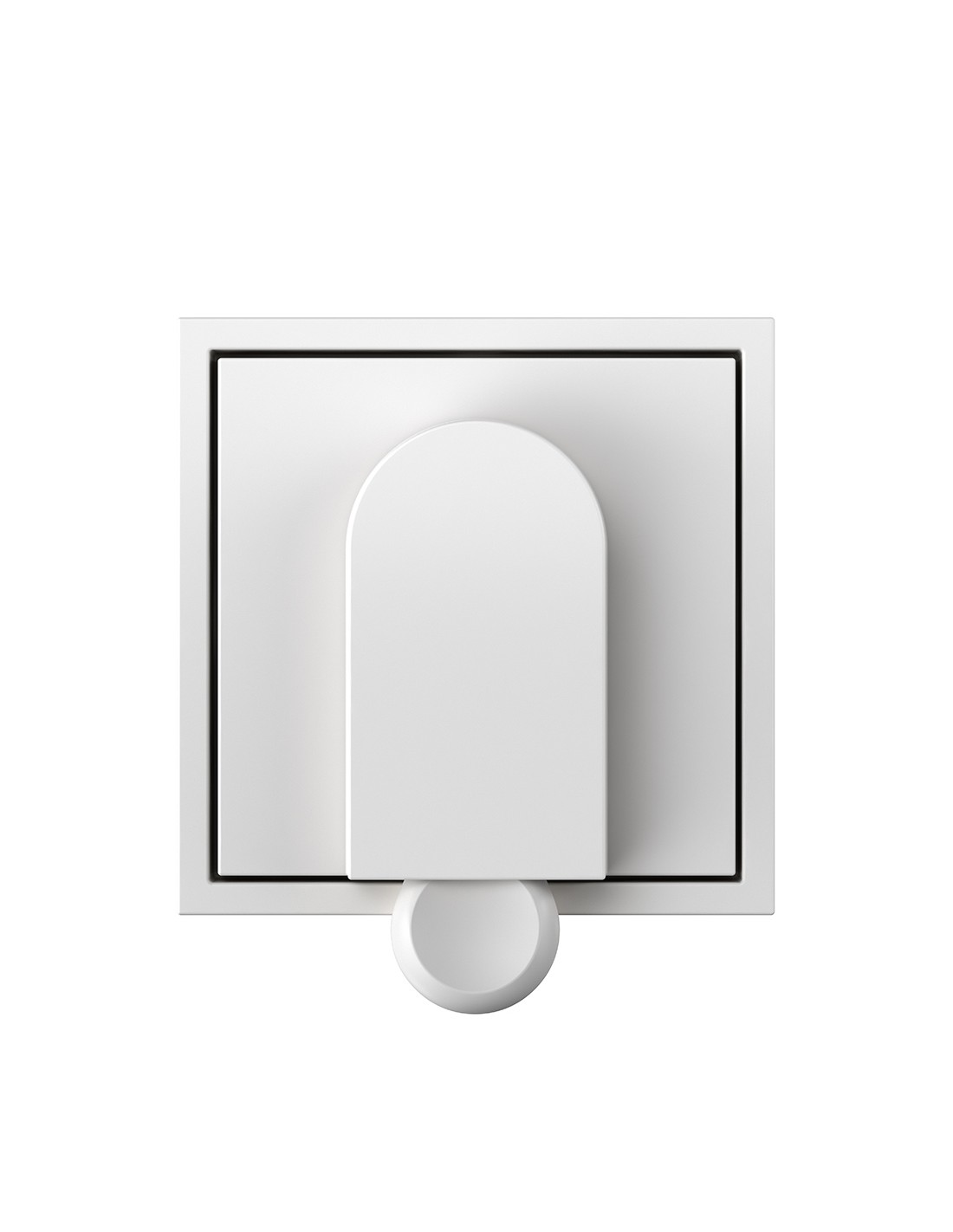

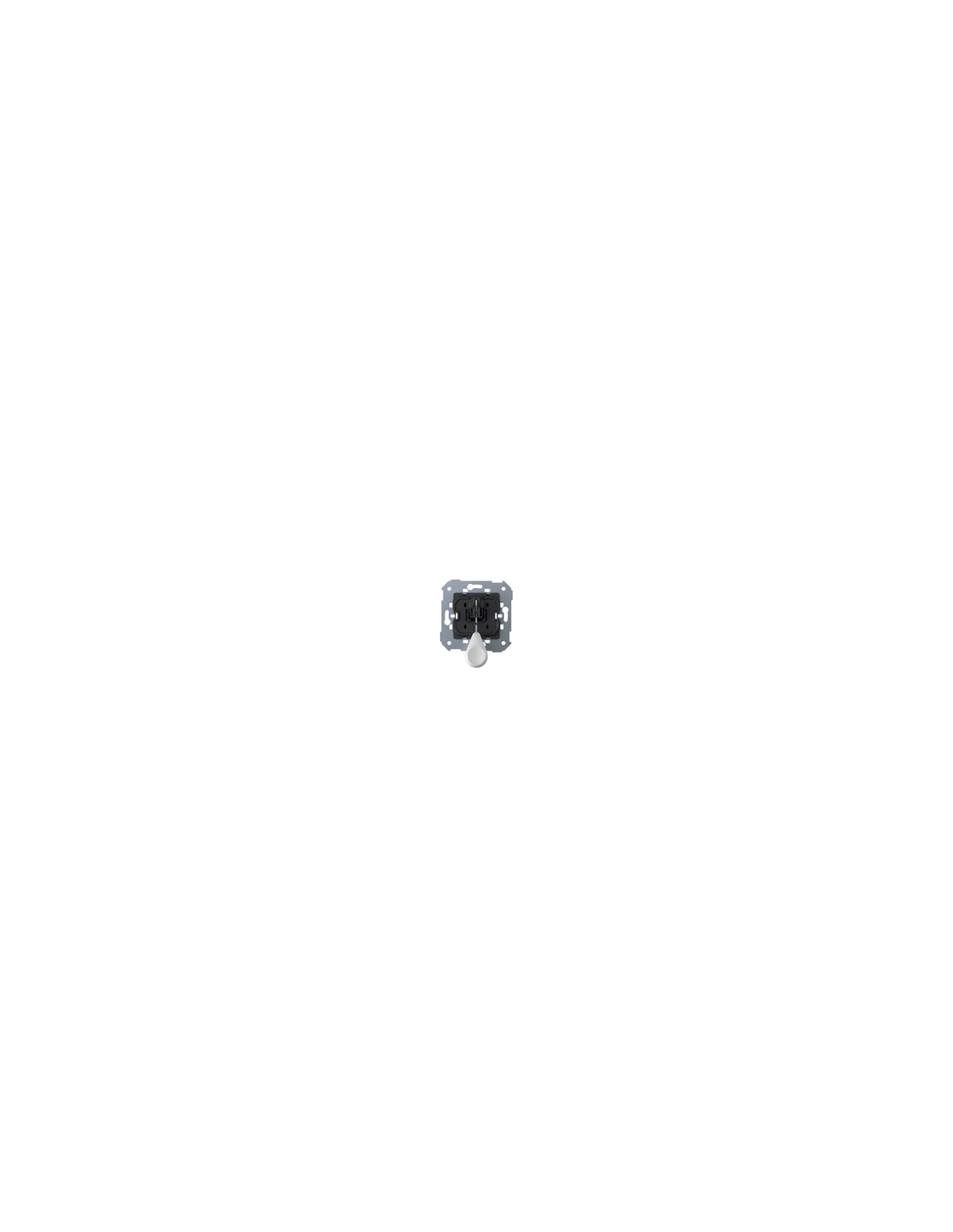

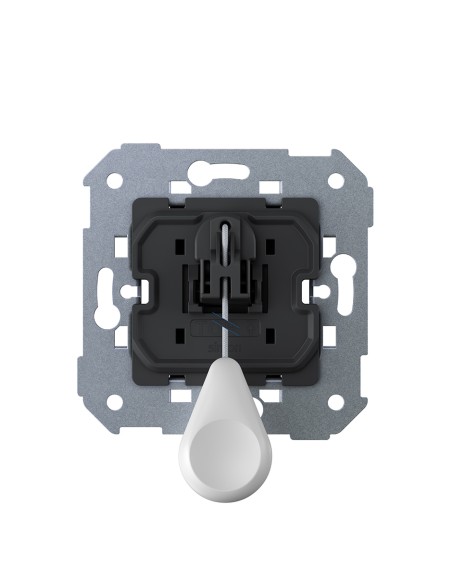

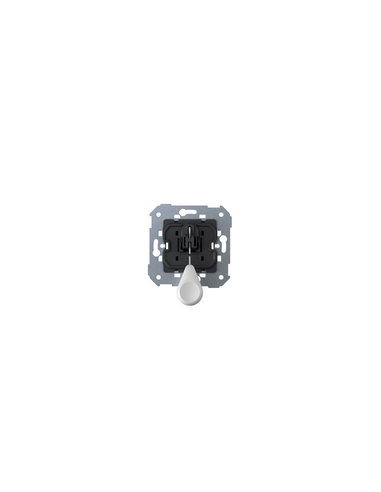

Simon 360 Series Pull Switch Button 10A 250V with Quick Connection

Name: Simon 360 Series Pull Switch Button 10A 250V with Quick Connection
Brand: SIMON
SKU: 700829
Price: 13.01 EUR
Availability: OutOfStock

Out of stock

Reference SIMON 36010153-039

€13.01

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP20

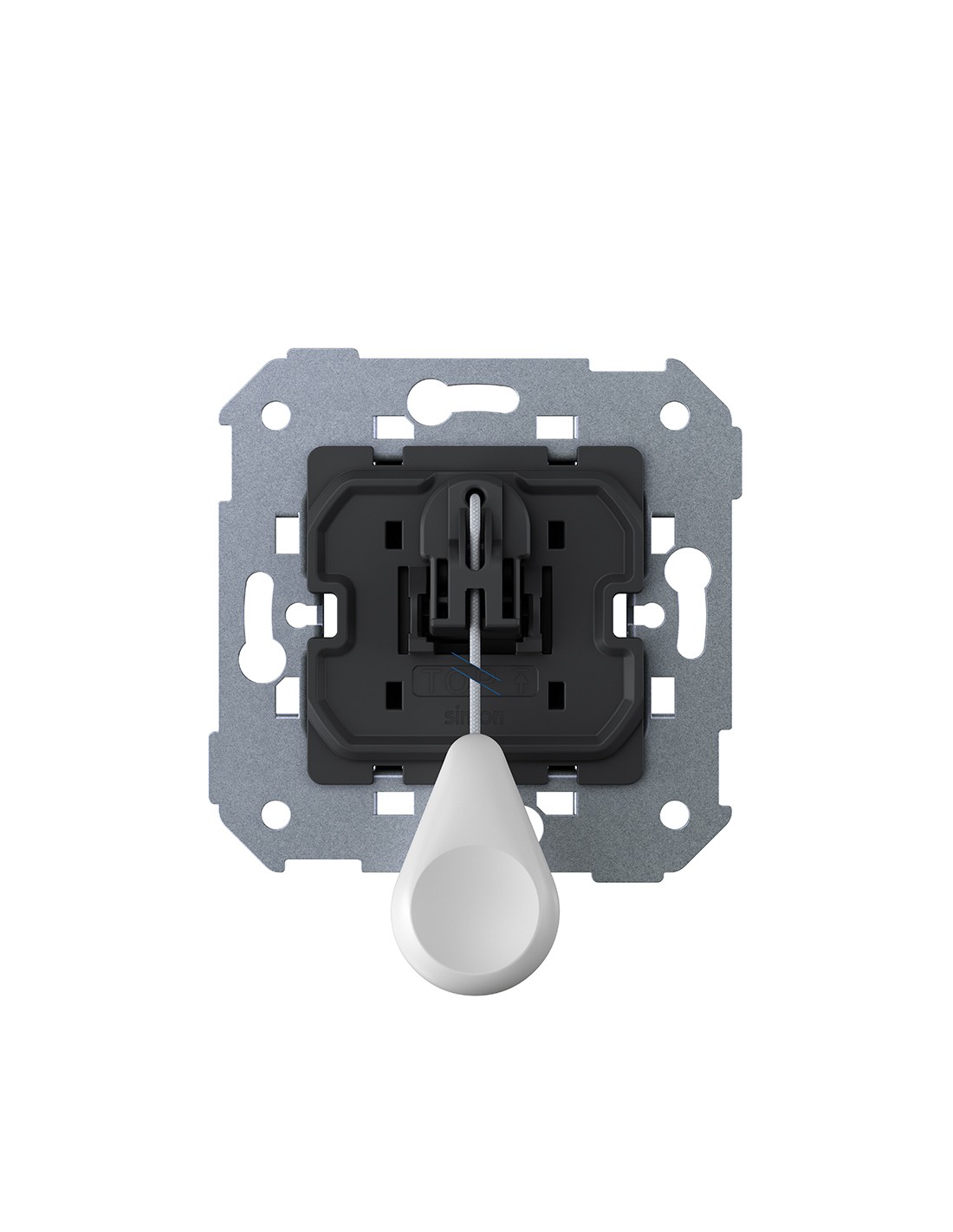

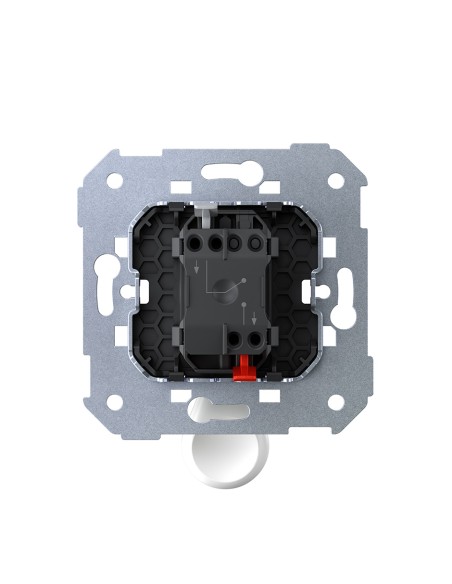

Simon 360 series pull switch button with quick connection system for efficient wiring. Designed with Simon 27 clamps and IP20 protection, supports 10 A at 250 V~ in universal mounting suitable for surface or recessed installation. Includes mechanism, cover, and instructions within the packaging.

Description

The Simon 360 pull switch button is an electrical mechanism designed for standard control via manual actuation, optimized to improve accessibility in residential and commercial electrical installations.

Technical Specifications

Series: Simon 360
Nominal Current: 10 A
Nominal Voltage: 250 V~
Frequency: 50 - 60 Hz
Protection IP: IP20
Material: Plastic

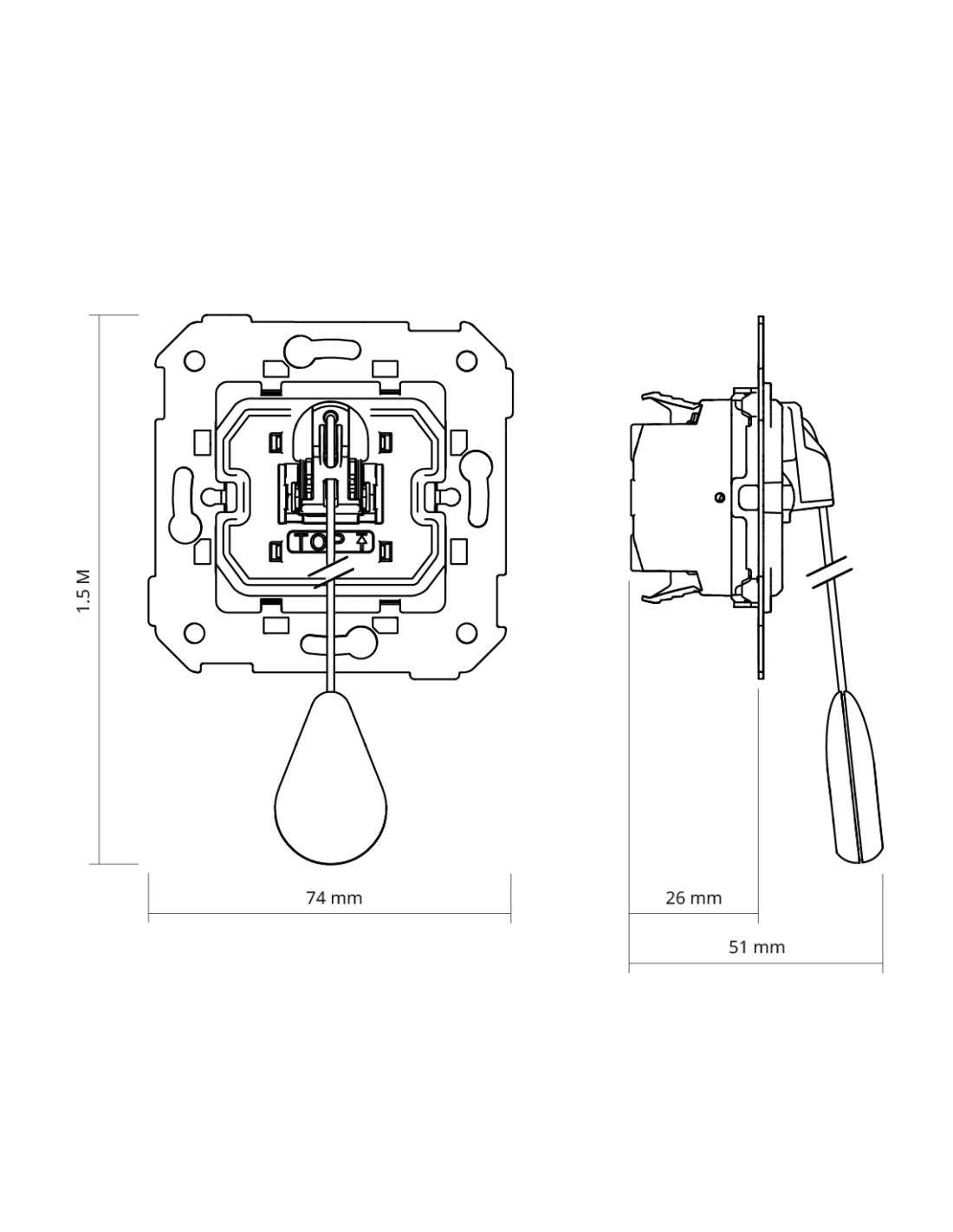

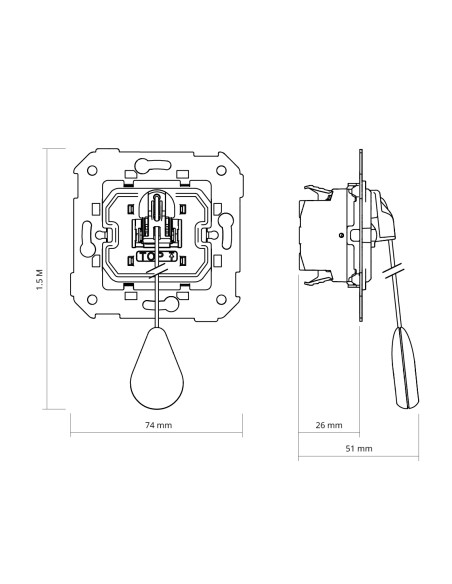

Dimensions: 1500 x 74 x 51 mm
Contacts: 2
Cable Section: 1.5 ...2.5 mm²
Cable Stripping: 15 mm
Orientations: Horizontal
Mounting: Universal (surface and recessed)
Operating Temperature: +5...+45 °C
Warranty: 3 years
Compatibility: Simon 360 frames
Clamps: Simon 27

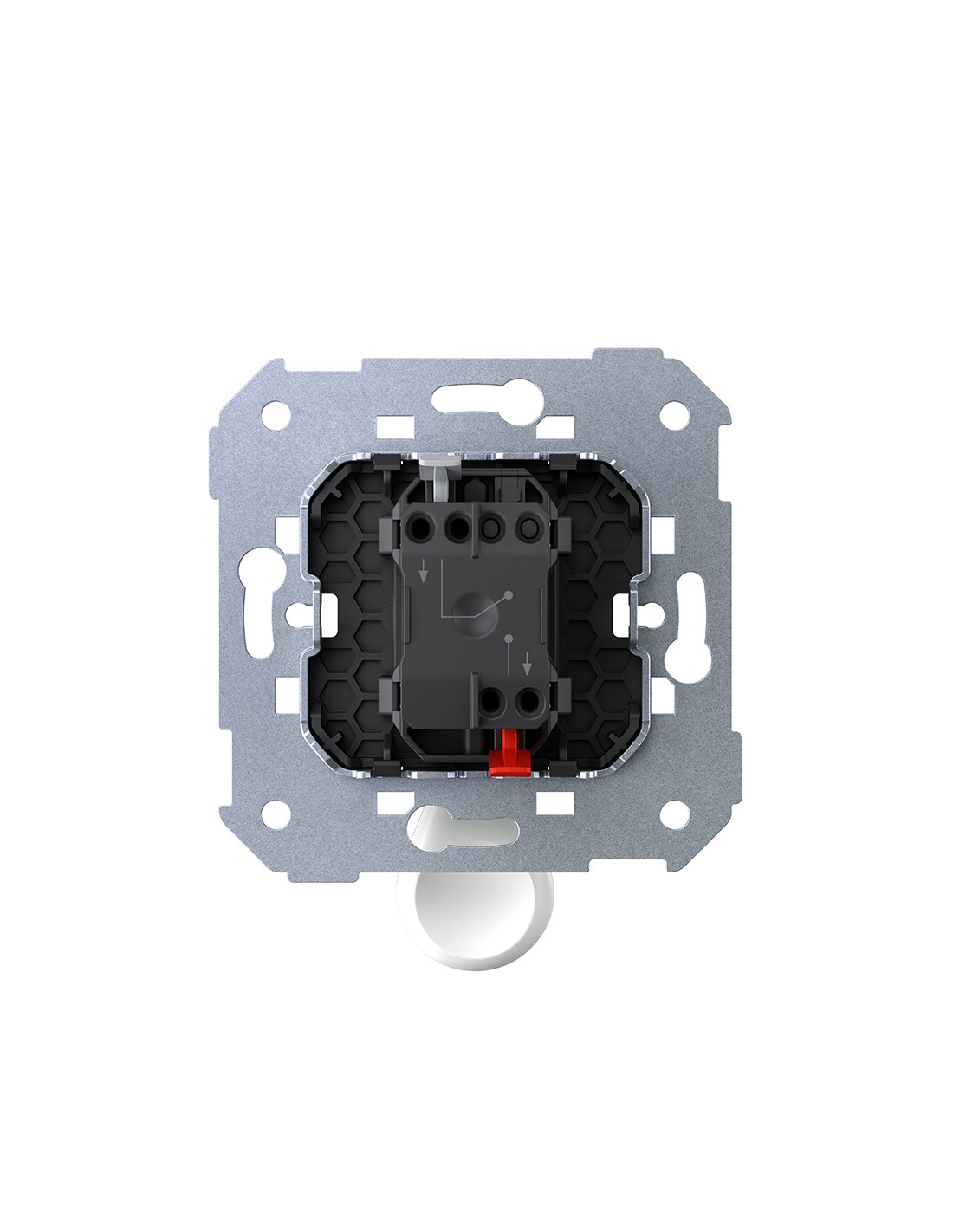

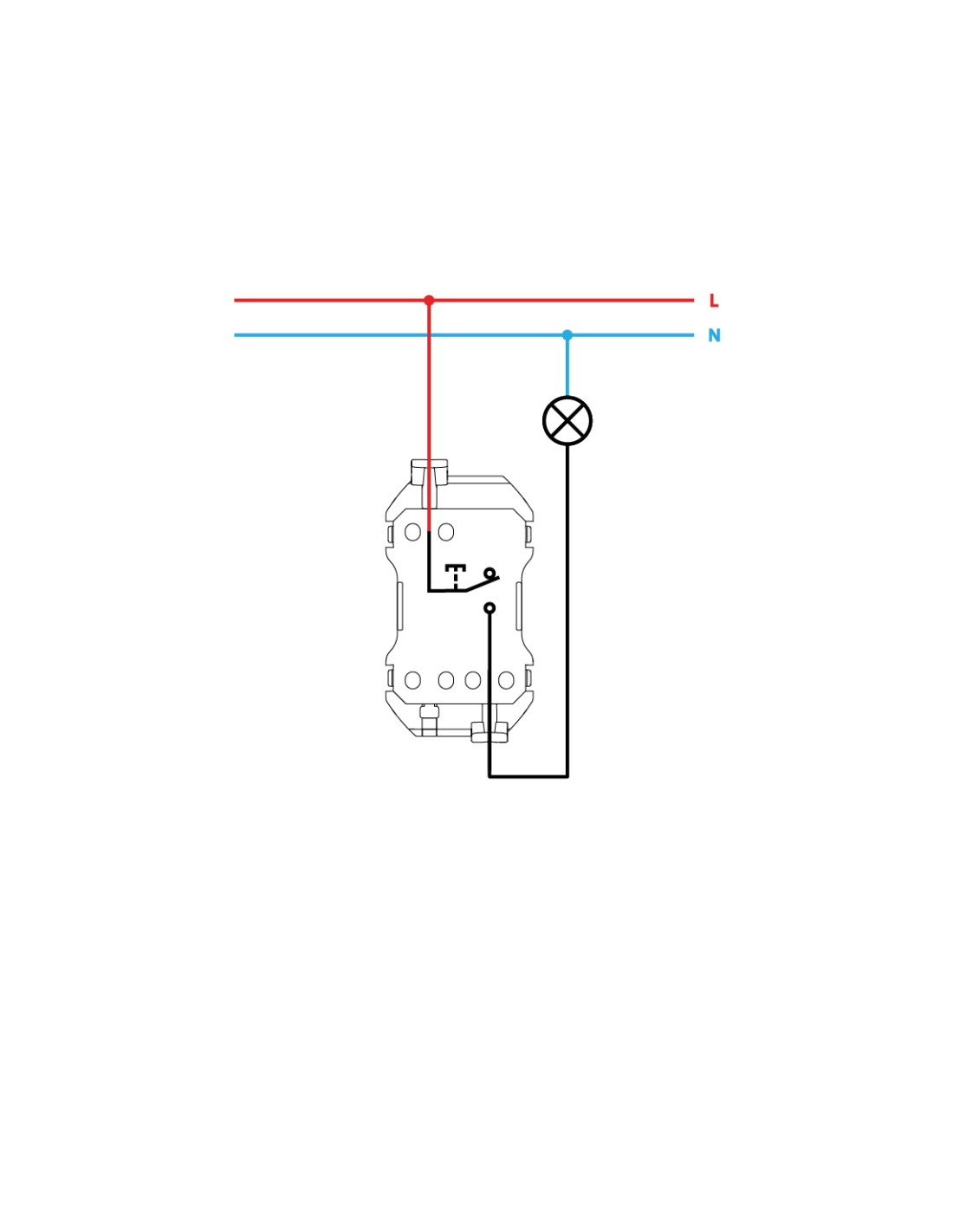

Its quick connection system allows for efficient wiring during installation, ensuring reliable performance in environments with standard control requirements.

Product Details

Eléctrico

Nominal voltage (V)	250V

Protección

Protection	IP20

Otras

EAN	8421053447321
Reference	SIMON 36010153-039
Piece type	Electrical mechanisms
Series	Simon 360

Información legal

Fabricante	SIMON
Dirección	Calle Diputación, 390-392, 08013 Barcelona, ES
Email	[email protected]
Teléfono	+34 934192500
Referencia	SIMON 36010153-039
EAN	8421053447321
