MODULO 8S PNP RESORTE
MODULO 8S PNP RESORTE

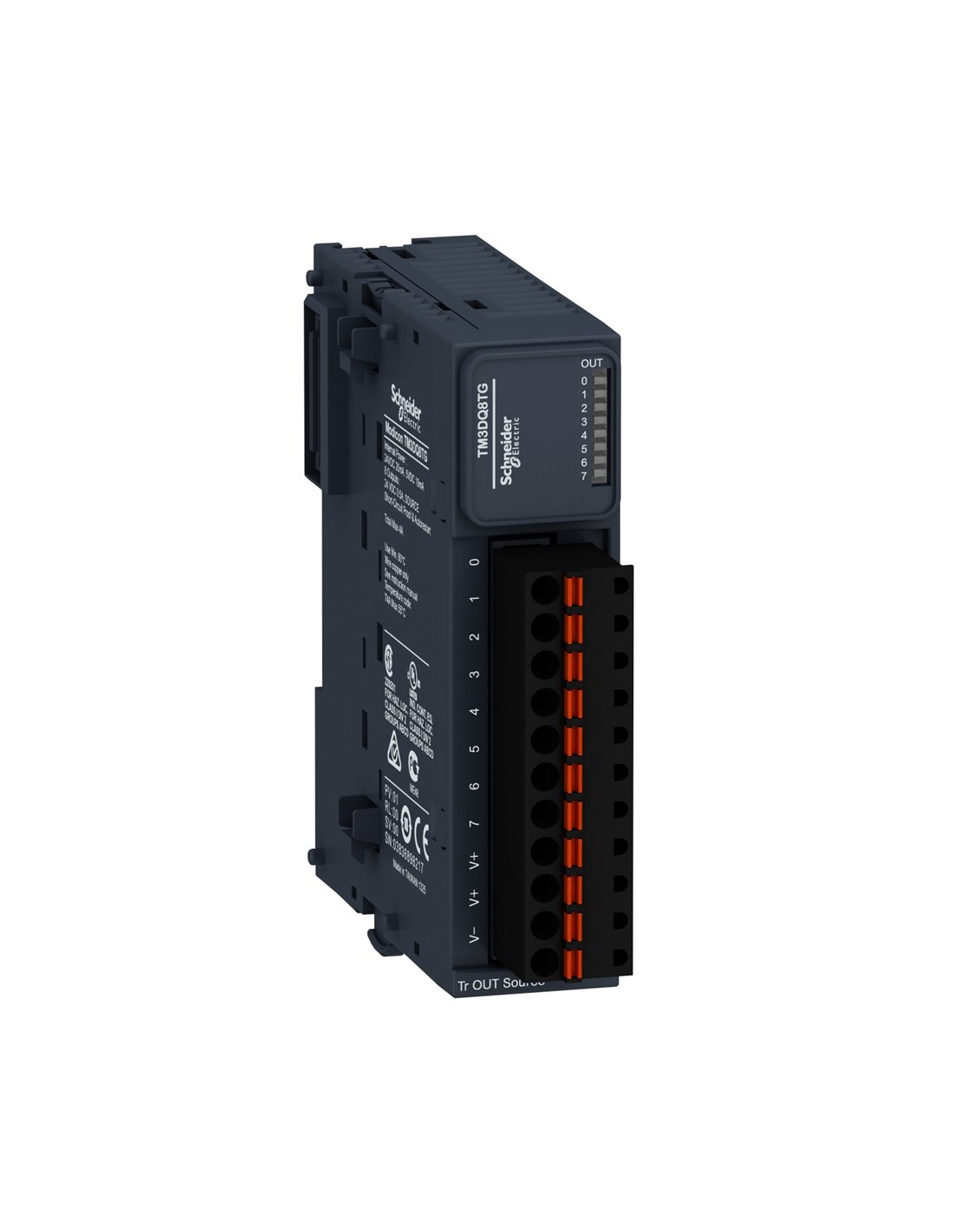

MODICON TM3 Discrete Output Module, 8 PNP Outputs, 24V DC with Spring Terminals

IMPO TM3DQ8TG
Available
€168.26
VAT included
The TM3 module offers eight PNP transistor outputs, designed for industrial applications. Compatible with various Modicon ranges, it provides positive output logic and operates at 24V DC. Its design includes spring terminals, facilitating installation and maintenance in demanding environments.
3 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The TM3 Module is a discrete output component designed for industrial applications, offering 8 PNP transistor outputs with spring terminals. This module is part of the Modicon TM3 range and is compatible with various control units, making it a versatile option for automated systems.

  • Product Range: Modicon TM3
  • Product Type: Discrete Output Module
  • Compatibility: Modicon M241, M251, M221, M340
  • Number of Discrete Outputs: 8
  • Output Logic: Positive (Source)
  • Output Voltage: 24 V DC
  • Response Time: 450 µs (On and Off)
  • Typical Current Consumption: 5 mA at 5 V DC, 0 mA at 24 V DC
  • Protection Rating: IP20
  • Operating Temperature: -10 to 35 °C (vertical), -10 to 55°C (horizontal)
  • Relative humidity: 10 to 95% non-condensing
  • Operating altitude: 0 to 2000 m
  • Certifications: CE, CULus, UKCA, RCM, EAC

Product Details

EAN 3606480611476
Reference IMPO TM3DQ8TG
Nominal voltage (V) 24V
