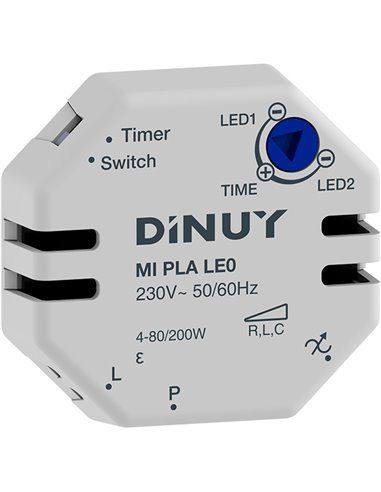

Electronic timer mechanism box 2 wires for led lamps

Reference DINUY MI PLA LE0

Available

€69.09

VAT included

• Electronic timer for installation in mechanism box.
• 2-wire connection, does not need the Neutral.
• Valid for: LED, Incandescent and Halogen lamps.
• Activation by non-illuminated conventional pushbuttons.
• It has 2 operating modes: Resettable timer or timed impulse switch.

In stock 16 Items

Email address

Description

Product reference MI PLA LE0
Supply Voltage (V) 230VAC
Frequency (Hz) 50/60
Own Consumption 0.7W
LED Lamps (W) 80
Incandescent and Halogen 230V (W) 200
Halogen 12V with electronic transformer (W) 200
Halogen with ferromagnetic transformer (W) 0
Fluorescent Lamps (W) 0
Fluorescent Lamps (VA) 0
Contactor supported No
Zero crossing No
2-wire installation
Permanent lighting No
Shutdown warning No
Minimum timing (seconds) 30
Maximum timing (minutes) 10
Timed remote control YES
Illuminated pushbuttons NO
Operating temperature (ºC) (min) 0
Operating temperature ( ºC) (max) 40
Permanent Luminous LED No
Mounting Mechanism box
Environmental Protection IP20 according to UNE20324
In accordance with the UNE-EN60669-2-1 and UNE- EN60669-2-3

Product Details

EAN: 8422447016390
Manufacturer: Dinuy
Reference: DINUY MI PLA LE0
Safety warning: No
GPSR Safety warning: No
GPSR Manufacturer information: Dinuy S. A. / Spain / Auzolan Kalea, 2, 20303 Irun, Gipuzkoa / [email protected] / +34 943627988
GPSR EU responsible person: Dinuy S. A. / Spain / Auzolan Kalea, 2, 20303 Irun, Gipuzkoa / [email protected] / +34 943627988
GPSR e-mail manufacturer: [email protected]
