ATM brand thread guide, polyester 4.5 mm, interchangeable tip, 30 m, 180 kg pull

ATM
TUR 750030
Out of stock
€302.11
VAT included

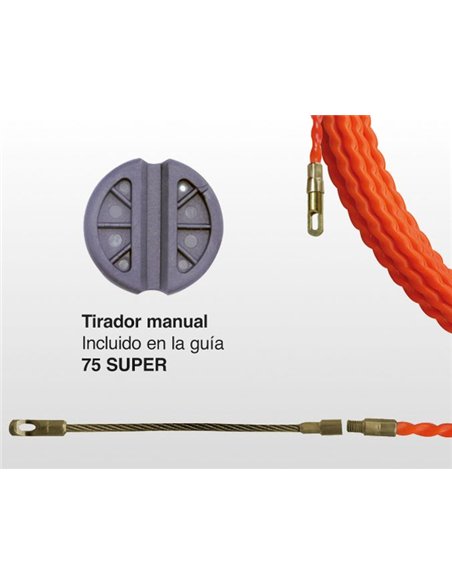

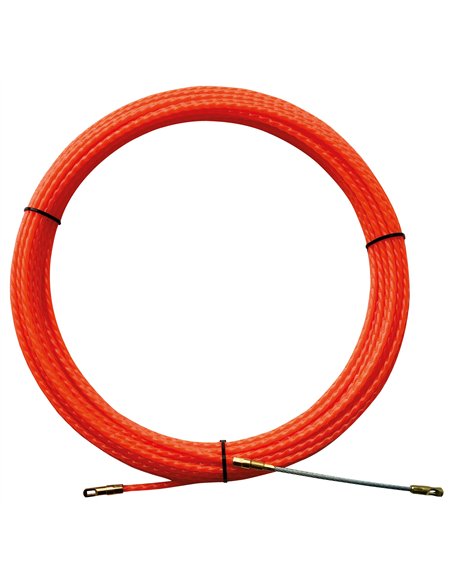

4.5 mm x 30 m polyester cable guide, designed for areas with continuous curves. Features a flexible steel tip that reduces friction by 60%. Withstands a maximum pull of 180 kg. Orange color. M-5 thread.

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

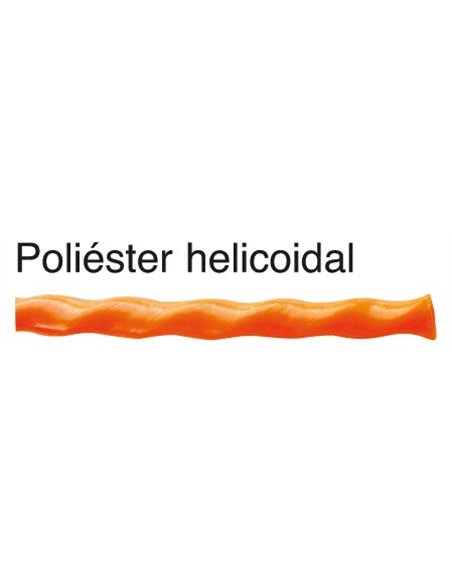

The ATM-750030 cable pulling guide is a specialized tool designed to facilitate cable laying in areas with continuous bends. Its 4.5 mm diameter polyester construction and interchangeable flexible steel tip allow for greater maneuverability and adaptability to bend radii, making it an ideal choice for electrical and telecommunications installations. Thanks to its helical ridge design, this guide offers significantly reduced resistance and friction when penetrating the pipe, achieving 60% less internal friction compared to other guides on the market.

  • Diameter: 4.5 mm
  • Length: 30 m
  • Material: Polyether with flexible steel tip
  • Color: Orange
  • Maximum pull: 180 kg
  • Thread: M-5
  • Design: Special for areas with multiple continuous pipe bends
  • Flexibility: Pulling tip with eyelet for greater flexibility in bends
  • Friction reduction: 60% less internal friction than other guides
  • Recommended use: Electrical and telecommunications installations

Product Details

High
3,50
Width
31,80
EAN
8435130725318
Manufacturer
ATM
Weight (kg)
0,6000
Depth
31,80
Reference
TUR 750030
GPSR Safety warning
No
GPSR Manufacturer information
AGHASA TURIS S.A, Calle de Rey Pastor, 17
28914 Leganés, Madrid - +34916334450
GPSR EU responsible person
AGHASA TURIS S.A, Calle de Rey Pastor, 17
28914 Leganés, Madrid - +34916334450
GPSR e-mail manufacturer
[email protected]

Reviews (0)

No reviews
