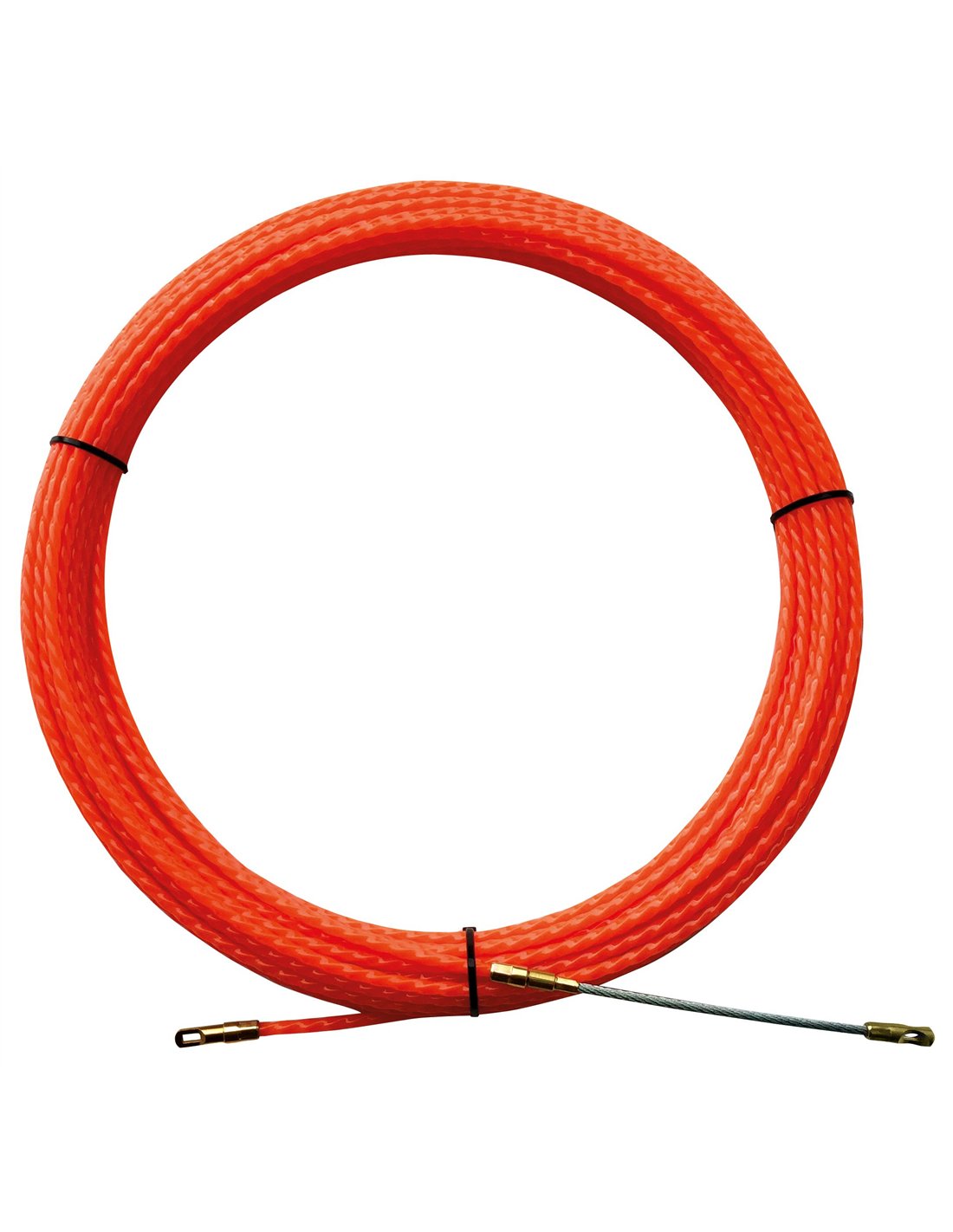

Polyester thread guide 4.5 mm, interchangeable tip, 20 m, 180 kg pull

The ATM-750020 cable pulling guide is a specialized tool designed to facilitate cable laying in areas with continuous curves. Its 4.5 mm diameter polyester construction and interchangeable tip allow for greater adaptability and flexibility, especially in applications requiring sharp turns. The flexible steel pulling tip, equipped with an eyelet, provides superior maneuverability around curve radii, optimizing the installation process.

Thanks to its helical ridge design, this guide exhibits significantly reduced resistance and friction when penetrating the conduit, achieving 60% less internal friction compared to other guides on the market.

• Diameter: 4.5 mm
• Length: 20 m
• Color: Orange
• Maximum Tensile Strength: 180 kg
• Thread: M-5
• Material: Polyester

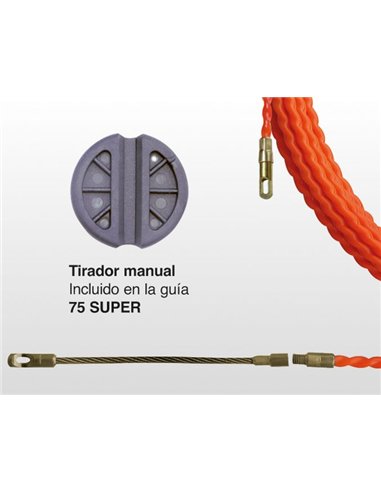

• Tip: Flexible steel with eyelet
• Design: Helical ridges for reduced friction
• Use: Areas with multiple continuous pipe bends
• Flexibility: High, ideal for bend radii
